How to use the fire pump efficiently and reasonably?

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

This fire pump set is composed of diesel pump and stabilized pump. It adopts IS pump, which has advantages in price and is not affected by mains electricity. It is suitable for warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships , oil tankers and other fire-fighting occasions.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency.
Good stability, vibration proof.
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

The lower the pumping head of the fire pump, the smaller the motor load. Under the misleading of this kind of misunderstanding, when purchasing a water pump, the head of the water pump is often selected to be very high. In fact, for centrifugal water pumps, when the pump model is determined, the power consumption is proportional to the actual flow of the pump. The flow rate of the water pump will decrease with the increase of the head, so the higher the head, the smaller the flow rate and the smaller the power consumption. Conversely, the lower the lift, the greater the flow and the greater the power consumption. Therefore, in order to prevent the motor from overloading, it is generally required that the actual pumping head of the pump should not be lower than 60% of the calibrated head.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

In the daily maintenance of the fire pump, we need to meet the following requirements: we need to ensure that the water inlet and outlet pipes, the various components of the controller, and the diesel engine system can work normally, and ensure that the power part is firmly connected to the water pump. We also need to check the opening status of the pump room, fire pump system, and various valves to ensure that the pump room has good heat dissipation conditions and that the components of the pump are in normal working condition.

Diesel engine fire pumps are suitable for use in fire water supply environments with high head and high flow rate or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so diesel engine fire pumps are favored.

Choose the installation location: Ensure it’s a clean, ventilated, and non-flood-prone area.
Prepare a solid foundation: Use a robust concrete base to minimize vibration.
Follow manufacturer guidelines: Properly align and secure the pump and diesel engine.
Connect fuel supply and exhaust systems: Ensure safe fuel storage and proper exhaust ventilation.

Fire pumps are designed to operate in a range of environmental conditions, but extreme weather conditions can pose challenges. Adequate protection measures and regular maintenance help ensure that fire pumps function reliably in various weather conditions.

Jockey pumps should be inspected regularly, with routine checks typically performed monthly. The inspection includes checking pressure settings, verifying proper operation, and inspecting for any leaks or damage. Ensuring that the jockey pump functions correctly helps maintain system pressure and prevent unnecessary wear on the fire pump.

In smart buildings, the latest trends in fire pump technology focus on integrating advanced sensors, IoT (Internet of Things) capabilities, and data analytics to enhance system performance and reliability. Smart fire pumps can communicate with building management systems (BMS) to provide real-time data on pump status, water flow, pressure, and other key parameters. This data can be used for predictive maintenance, alerting operators to potential issues before they become critical. Additionally, smart pumps can adjust their operation based on real-time conditions, optimizing energy use and ensuring the most efficient response during a fire emergency. These technologies enhance safety and align with the broader trend toward more intelligent, automated, and energy-efficient building systems.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

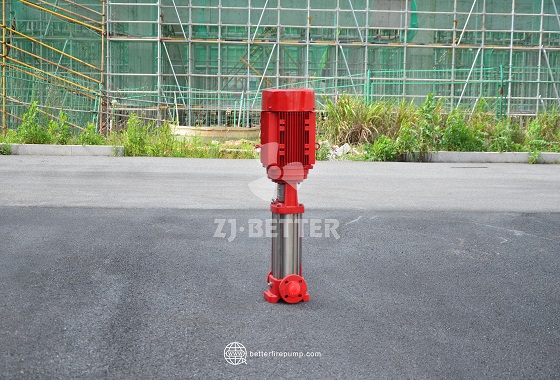

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

Small flow fire pump assemble process
This is for Philippines order for us, and flow as 50gpm 6bar
Normal use for small shop and hotel project

EDJ 500gpm@8bar Fire pump set test
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

Fire pumps require regular maintenance to ensure their reliability. Maintenance tasks include routine inspections, lubrication, testing, and exercising the pump to prevent corrosion and ensure proper functionality.

Fire pumps are critical components of fire protection systems, and their reliable operation is essential for effective fire suppression. However, like any mechanical equipment, fire pumps can experience various issues over time. Some common problems associated with fire pumps include:

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting pipeline systems, they can also be used in industrial water supply. Fire pumps can also be used in urban water supply and drainage systems. There are other relatively long-distance water supply work, such as heating boilers, bathroom boilers, hot and cold water circulation pressurization of multi-stage fire pump boilers, etc.

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

The fire pump is actually a pump that needs to be used in fire protection. According to different classification methods, it can be divided into different types of pumps. With its characteristics of full sealing, no leakage and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. The pump types of the system are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the technological process and water supply and drainage requirements. Fire truck fire pumps are used in fire protection, water treatment, environmental protection and other departments to pump various liquids.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Application Scope: Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

EJ fire pump set producting
150gpm 7bar electric fire pump with jockey pump
Assemble in our workshop

1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Yes, various regulations and standards, such as those set forth by organizations like the National Fire Protection Association (NFPA), govern the design, installation, testing, and maintenance of firefighting pumps to ensure their safety and effectiveness. Compliance with these standards is essential for maintaining fire safety standards and regulatory requirements.

Series OTS pumps are single stage,double suction with horizontally split casings.They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105¡æ.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

Fire pumps are designed to adapt to varying water supply conditions, such as fluctuating pressures or varying water levels in a reservoir. They achieve this through features like variable speed drives, which adjust the pump’s speed to maintain consistent water pressure and flow, regardless of changes in the supply.

EEJ fire pump group consists of two electric pumps + one jockey pump, the electric pump adopts XA pump.XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China) Technology Co., Ltd.
This product combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.
