If the power supply is abnormal, you can choose a diesel engine fire pump set

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

The EJ model is basically a combination of an electric drive and a jockey pump. They consist primarily of an end suction pump driven by an electric motor, with no backup pump. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete EJ-style skid is assembled with all discharge line accessories and connected to the skid-mounted control panel.

A typical firefighting pump system consists of the pump itself, intake and discharge hoses, nozzles, strainers or filters to prevent debris from entering the pump, and sometimes additional accessories like foam injection systems for enhanced fire suppression capabilities.

Leakage failure in a fire pump refers to the undesirable escape of fluid, typically water, from the pump or its associated components. It is a critical issue that can hinder the performance and reliability of the fire pump system. Here are some key aspects of leakage failure in a fire pump:

Causes of Leakage: These include worn or damaged seals, gaskets, or O-rings, improper installation or tightening of connections, corrosion or erosion of pump components, and excessive vibration or misalignment.

Effects on Performance: Leakage compromises the efficiency and effectiveness of the fire pump system.

Safety Risks: Leakage failure poses safety risks to personnel and property.

Maintenance and Inspection: Regular maintenance and inspection are crucial for preventing and addressing leakage failure.

Corrective Actions: When leakage is detected, prompt action should be taken to rectify the issue.

Addressing leakage failure in a fire pump system is essential for maintaining its reliability and performance. By implementing regular maintenance practices, conducting thorough inspections, and promptly addressing any signs of leakage, the risk of failure can be minimized, ensuring the fire pump operates optimally and provides reliable water supply during critical firefighting situations.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.

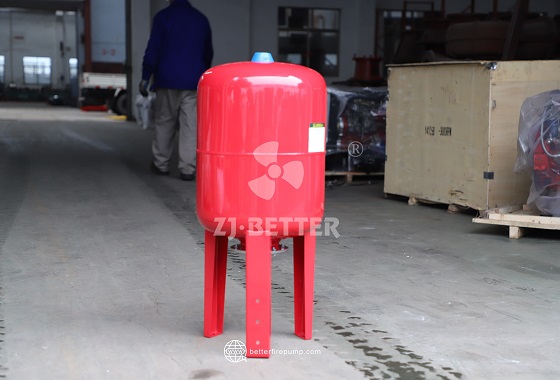

The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

Application fields of fire pump set:
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc., national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports, fire engineering companies.

An electric main pump,a jockey pump(used in the place where the pump runs entirely through the electric pump)
Electric Pumps:Electric pumps can use vertical in-line pumps,horizontal end-suction pumps,vertical multi-stage pumps,horizontal multi-stage pumps,split casing pumps and so on according to the different flow andhead of customers.

Flow: 14-2700 GPM
Head: 12-80 meter
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel engine fire pump product overview: The fire pump used in the diesel engine fire pump complete set can be the IS series single-stage type and D-type series segment multi-stage type produced by our company. The diesel water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.

Benefits include:

Simplified Installation: Pre-packaged systems are easier and quicker to install, reducing on-site labor and potential for errors.
Quality Control: Assembled and tested in a controlled environment, ensuring high quality and reliability.
Space Efficiency: Designed to optimize space, making them ideal for installations with limited space.
Regulatory Compliance: Often pre-engineered to meet specific codes and standards, simplifying the compliance process.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

Diesel engine fire pumps can be widely used in environmental protection, water treatment and fire protection departments to transport various liquids by using their own advantages.

Flow-500gpm
Head-8bar
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The pump and the motor are coaxial, which simplifies the connection of the pipeline. The pump inlet and outlet are on the same horizontal axis, and the diameter and specifications are the same. The pump is provided with a mounting base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. When the diesel engine fire pump is insufficient in fuel, low battery voltage, and high lubricating oil temperature , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

1. Turn off the power supply of the fire pump.

2. Close the main valve of the main pump and open the main valve of the standby pump.

3. Open the valve of the bypass line and the water supply line of the standby pump.

4. Turn on the power supply of the standby pump.

5. Check the operation status of the standby pump.

6. Close the valve of the bypass line and the water supply line of the main pump.

7. Open the main valve of the main pump.

8. Check the operation status of the main pump.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The first step is to design a comprehensive and comprehensive fire protection system for the premises. This system should include automatic fire sprinklers, water-based fire suppression systems, fire alarms, smoke detectors and fire extinguishers. The fire protection system should be designed and installed according to the local building codes and fire regulations.

The next step is to install a pressurized and stabilized water supply system. This system should be designed and installed according to local regulations, as well as the needs of the premises. The system should include a main water supply line, a storage tank, and a pump system to ensure adequate pressure and flow.

Finally, the fire protection system should be regularly inspected and maintained. This includes regular testing of the fire sprinklers, smoke detectors, alarms and fire extinguishers. Any maintenance and repairs should be done by a qualified technician.

25≤Q≤100GPM
30≤H＜120m

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building.

The fire booster pump is designed to increase the flow and pressure rate of the water supply coming into the fire system. This is accomplished by drawing water from a municipality main, tank, or hydrant, and then boosting the pressure rate of the water supply with an electric motor and pump. The adjusting of the pressure rate is accomplished by changing the speed of the electric motor that is powering the pump, which in turn changes the amount of water being pushed through the system.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Flow:
5-400L/s
Head:
3-20Bar
Material:
HT200, SS304, Bronze
Caliber:
65-350mm
Pressure:
0.3~1.5MPa
Speed:
740-2900r/min

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The size of a fire pump is determined through hydraulic calculations based on the specific fire protection requirements of the building. Factors considered include the building’s height, area, occupancy type, and the required flow rate and pressure to meet fire protection standards.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

There are four types fire pump, including end suction pump, split case pump, multiage pump and vertical turbine pump. These fire pumps may bepowered by an electric motor or diesel engine and on rare occasion powered by a steam turbine.
