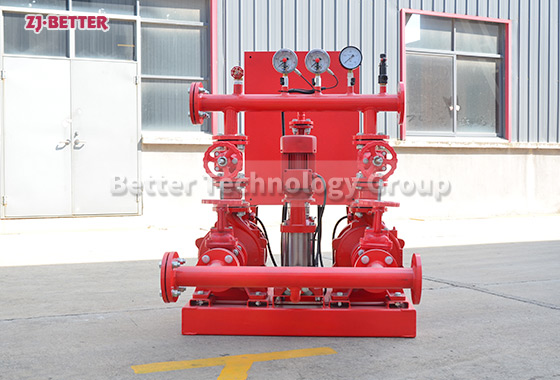

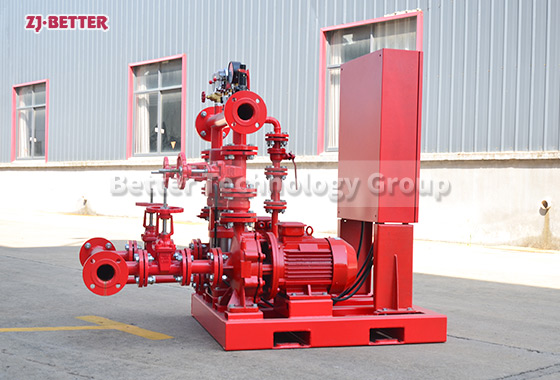

Innovative Design of EEJ FIRE PUMP SET for Enhanced Fire Safety

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a non-corrosive treatment medium temperature below 80°C. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric motor fire pump set adopts multiple fire water pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption.

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The EJ model is basically a combination of an electric drive and a jockey pump. They consist primarily of an end suction pump driven by an electric motor, with no backup pump. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete EJ-style skid is assembled with all discharge line accessories and connected to the skid-mounted control panel.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

The finished EDJ fire pump set consists of jockey, electric&diesel pump along with control panel and accessories.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

Yes, proper training is essential for safely and effectively operating firefighting pumps. Training topics may include pump operation and maintenance, understanding pump performance curves, selecting and deploying appropriate nozzles, and practicing safe firefighting techniques.

Flow: 25-100gpm
Head: H＜8bar
Speed: 2950-3500RPM

It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. It is the ideal pump and fire protection system to create no leakage, no pollution civilized workshop and civilized factory.

Diesel engine fire pump is mainly composed of diesel engine, fire pump, coupling, fuel tank, radiator, battery pack, intelligent automatic control panel, etc. The company’s products are designed and optimized by computer. Our company has strong technical force, rich production experience and perfect testing methods to ensure the stability and reliability of product quality. The diesel engine fire pump adopts international advanced technology, sliding bearing, plate-fin air cooler, upper heat exchanger, spin-on oil filter and dual cooling system. The smoke and noise indicators reach the national high-quality product, and the fuel consumption is lower than the national standard high-quality product of 2.1g/kW.h.

2000gpm diesel engine fire pump system which consist of diesel engine fire pump and jockey pump, this we export to Bangdesh

Fire pump maintenance is essential to guarantee the system’s longevity and reliability. This article provides an in-depth examination of best practices for fire pump maintenance, covering preventive maintenance schedules, routine inspections, lubrication, and replacement of wear components. It emphasizes the role of NFPA standards in guiding maintenance procedures and underlines the importance of documenting all maintenance activities.

Ensuring preparedness involves:

Backup Power: Install backup generators or connect to reliable emergency power sources to ensure continuous operation during outages.
Automatic Transfer Switches: Use automatic transfer switches to quickly switch to backup power in case of a main power failure.
Battery Backup: For jockey pumps and control systems, use battery backups to maintain pressure and control functionality during short-term outages.
Regular Testing: Test the backup power systems regularly to ensure they are operational and capable of supporting the fire pump system.

The DJ Fire pump set is made of Diesel fire pump+Jockey pump.
Application Scope：Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Horizontal multi-stage fire pumps can be used to transport clear water without solid particles and liquids with physical and chemical properties similar to water. It is mainly used in pressurized water supply for fire protection system, heating, bathroom, boiler cold and warm water cycle pressurization, water supply for air conditioning and refrigeration system, and equipment matching and other occasions.

Diesel engine fire pumps can be widely used in environmental protection, water treatment and fire protection departments to transport various liquids by using their own advantages.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, warehouses, etc., with different performance requirements and quality requirements. The commonly used types of fire pumps include electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multi-stage fire pumps Pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

First of all, check whether the oil level is normal and cannot reach the oil mark line on the normal surface. If it is not, we must replenish it in time, but remember one thing, it cannot exceed the amount of the oil quantity indicator line.

Secondly, check the radiator. The water is appropriate. If it is not added in time, the water that needs to be added must be clean water, as long as it is clean water, or tap water is fine. Why not use groundwater, because impurities in groundwater can easily form scales in the water tank, which affects the cooling effect and is also prone to failure. In winter, we drive to preheat the car, add coolant to the car, and the fire pump is no exception. The weather in the north is very cold, so add the coolant to the fire pump according to the actual temperature.

Finally, check the installation of each part of the fire pump, such as whether they are stable, the connection between the screw and the screw, if there is any looseness, tighten the screw in time. To clean the fire pump, soak a canvas or dry cloth and wipe slowly on the body or on surfaces made of grease or dust.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The fire pump is designed to divert water when a fire is detected by the sprinkler system or other fire-detection device. The pump will then draw water from the water supply source and deliver it to the sprinkler system, fire hoses, or other fire suppression devices.

Flow: 14-2700 GPM
Head: 12-80 meter
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

When customers choose a fire pump, they must choose the fire pump with the appropriate specifications according to their own needs, so that the fire pump can play its best role. And when choosing a fire pump, you must choose a fire pump produced by a regular manufacturer. Such a fire pump has more quality assurance, and the manufacturer will also provide customers with better after-sales service. When choosing a fire pump, don’t be blinded by those ultra-low-priced fire pumps on the market. Behind the ultra-low price, there are bound to be some quality defects hidden.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has an ultra-low pressure start-up device, the matching electric water pump control cabinet should also have an ultra-low-pressure start-up device, and the lower limit of the two pumps should have a certain pressure difference. Of course, according to customer requirements, design a control system that is more suitable for customer needs.

The basis for the selection of fire pumps should be based on the process flow, water supply and drainage requirements, and be considered from five aspects, namely, liquid delivery volume, device lift, liquid properties, pipeline layout, and operating conditions. Fire pumps are mainly divided into vertical and horizontal types. The flow rate of the conveying liquid is one of the important performance data for pump selection. It is directly related to the production capacity of the entire device. The working conditions of the fire pump: flow rate: 2～1400m3/h, Head: 5～130m, maximum working pressure of the system: ≤1.6MPa, working temperature: -15℃～+80℃.

Flow: 2500gpm
Head: 10bar
This pump uses horizontal split case pump.
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. The diesel engine pump set is driven by diesel and does not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is most suitable to choose a diesel engine to drive the water pump.

Factors include the building size, height, occupancy type, local fire codes, water supply source, and the required water flow and pressure. A thorough hydraulic analysis is typically performed to determine the appropriate pump size and type.
