Introduction of submersible fire fighting pump

ISG vertical single-stage single-suction centrifugal pump, can transport water and physical and chemical properties of similar Yu Qingshui other liquid and is applicable to industrial and urban water supply and drainage, pressurized water supply in high-rise building, garden sprinkler irrigation, fire pressurization, long-distance transmission, hvac refrigeration cycle, cold and hot water circulation pressurization in the bathroom, etc, and form a complete set of equipment, using temperature T < 80 ℃.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

This device is effective for Class A (ordinary combustibles), Class B (flammable liquids), and certain Class D (combustible metals) fires, depending on the type of foam concentrate used.

Specification: PHYM100/20、PHYM100/30、PHYM100/40、PHYM100/50、PHYM100/60、PHYM100/70、PHYM100/80、PHYM100/90、PHYM100/100

PW pumps are single-stage single-suction cantilever centrifugal pump for pumping dirty liquid (liquid containing fibers and other suspended objects or stool), liquid temperature does not exceed 100 ℃ , suitable for urban, rural, industrial and mining sectors excluded sewage purposes

The equipment CONSISTS of frequency conversion control cabinet, no negative pressure device, automatic control system and remote monitoring system, water pump unit, voltage regulator compensator, negative pressure eliminator, pressure sensor, valve, instrument and piping system.

The box-type integrated pump station is composed of stainless steel water tank, special water pump, intelligent frequency conversion control cabinet, non-negative pressure device, booster device, water diversion device and pressure stabilizer tank. The electromechanical integrated water supply equipment meets the requirements of the urban water supply pipe network, which does not generate negative pressure when pumping water, but also has a certain ability to adjust and store water, and the water is continuously cut off during peak periods.

ISG series vertical single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly vertical centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps. In addition, according to different operation temperatures and mediums, we developed the hot-water pump (IRG), corrosion-resistant chemical pump (IHG) and oil pump (YG). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

The multistage pump is a centrifugal pump in and out of the water section and the middle section, through the rod combination together, its output water pressure can be very large, but also depends on the rotation of the impeller to obtain the centrifugal force, so that the material. When the gas density reaches the working range of the mechanical vacuum pump, it is extracted, and the high vacuum is gradually obtained.

The air conditioning pump system is an indispensable part of modern HVAC systems, regulating the temperature within a building by circulating hot or cold water, providing a comfortable indoor environment. This article delves into the product features of air conditioning pump systems, helping you understand their significance and how to optimize the heating, ventilation, and air conditioning efficiency of your building.

CDL type of stainless steel metal stamping forming vertical multistage centrifugal pump , with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, the use of easy maintenance, and reliable sealing performance.

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

The remote monitoring system for the water supply pump station is suitable for the remote monitoring and management of the pressurized pump station in the urban water supply system.
The pump station manager can remotely monitor the water level of the pump station pool or the entry pressure, the working status of the booster pump group, the outbound flow, and the exit pressure from the monitoring center; they can remotely control and automatically control the start and stop of the booster pump group; When optical fiber communication is used, the panorama and important stations in the station can be monitored by image, so that the pump station can be unattended.

The pump’s performance range: flow 130-9000m3/h, head 3.5-22m. Simple structure, reliable use, easy
installation, high efficiency, small body, light weight.

Centrifugal pump is a blade pump that depends on the centrifugal force generated when the impeller rotates to deliver liquid. In the process of rotating the impeller, due to the interaction between the blade and the liquid, the blade will transmit mechanical energy to the liquid, so that the pressure of the liquid can be increased to achieve the purpose of conveying liquid.

The non-negative pressure variable frequency water supply equipment takes the municipal pipe network as the water source, and makes full use of the original pressure of the municipal pipe network to form a closed continuous relay pressurized water supply mode, with good energy saving effect and no secondary pollution of water quality. Development and extension of water supply equipment.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L
The diesel fire pump system serves as a backup power solution, utilizing a diesel engine to provide power and ensure the fire pump’s reliable operation during electrical outages. The associated fuel tank is a crucial component for storing diesel fuel and providing a continuous supply to the diesel engine, ensuring a sustained water flow during fire incidents.

As the name implies, the fire pump is divided into different types according to different classification methods. It has the characteristics of full sealing, no leakage and corrosion resistance. It is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. , It is an ideal pump for creating a leak-free, pollution-free civilized workshop and civilized factory. The pump type is similar to that of the fire protection system, but the lift and flow are different.

Product Introduction of
ZX series self-suction pump is an energy saving pump designed with ISO international standard and developed through absorbing and improving the r elated technical data both at home and abroad and belongs to the self-suction centrifugal pump and uses the mechanical seal of a ceramic ring so as to resist any sandy liquid to go into the sealing face, preventing it from getting scratched. This pump holds the advantages of a compact structure, easy operation, stable movement, easy maintenance, high efficiency, long duration and strong self-suction capacity and, as no foot valve is needed to be mounted on the pipeline and only a certain amount of leading liquid is required to be filled into the pump before work, improves the work condition while simplifying the pipeline system.

Significant energy saving, small footprint, easy installation and stable performance.
The jacket is made of 304 high-quality stainless steel, and the shaft seal is made of wear-resistant mechanical seal, which has no leakage and long service life.
The axial force is solved by hydraulic balance, so the operation is stable and the noise is low.

The star connection-delta connection utilizes the two connection methods of the motor to achieve the purpose of step-down starting, reduce the starting current, and reduce the impact of excessive current on the power grid. Simply put, the stator is connected in star at the start of the motor and then switched to delta connection after starting, which is the starting method of star-delta buck start.

Yes, vertical turbine pumps can be constructed from materials such as stainless steel or high-strength alloys to withstand corrosive fluids or abrasive particles. Additionally, various coating and lining options are available to further protect pump components from corrosion or wear.

Sewage pump is a kind of centrifugal impurity, there are two kinds of submersible and dry. It is mainly used for the treatment of industrial sewage and domestic sewage, and has played a great role in environmental protection. In addition, there are also cutting impellers in the sewage pump, which can play a good role in the treatment of various fibrous substances in the sewage.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

These photos show some of our diesel engine in stock. We cooperate with many diesel engine manufacturers to meet the needs of customers for different diesel engine brands.

Starting mode
* Direct online <15kw * Y-△ voltage reduction startup 15kw~75kw (don’t adapt to submersible sewage pump control equipment) * Self-coupling voltage reduction startup >15kw (adapt to submersible sewage pump)
* Soft starter startup >15kw
Control mode
Y — automatically control the start and stop of the pump according to the height of the liquid
P — automatically controls the start and stop of the pump according to the pressure. Used in life and fire water supply and drainage pressurization system
T — Control the start and stop of the pump according to the set-up temperature. Used for constant temperature and heat exchange system

The company introduced high-performance water pumps produced by German advanced technology. By using the prototype impeller and this type of impeller and its cutting, the pump has a full and broad model spectrum and high use efficiency. Within the range of model spectrum performance, the pump can provide
A pump that properly meets the working point of any flow and head required by the user.
It adopts the best hydraulic model at home and abroad that can self-balance axial force and radial force, with stable performance, high efficiency, compact structure, low vibration, high pressure resistance of the pump body, and convenient installation and maintenance.

In view of its excellent performance and cost performance, single screw pump has gradually been widely used in China in recent years. Its main features are strong adaptability to the medium, stable flow, small pressure pulsation, and high self-priming ability, which cannot be replaced by other pumps. Single screw pump is widely used in petrochemical, environmental protection, exploration and mining, medicine and food, shipbuilding industry, energy industry, papermaking, construction, mining, machinery and other industries.

It is a fire pump that is directly connected with a light engine and a water pump, and can be lifted and moved by manpower. It is used to fight general material fires and small oil fires. Because the hand pump is light and flexible, and is not restricted by traffic, electricity, and regional obstacles, it has been widely used in industrial and mining enterprises, warehouses, ports, docks and rural areas. The place where the fire started.

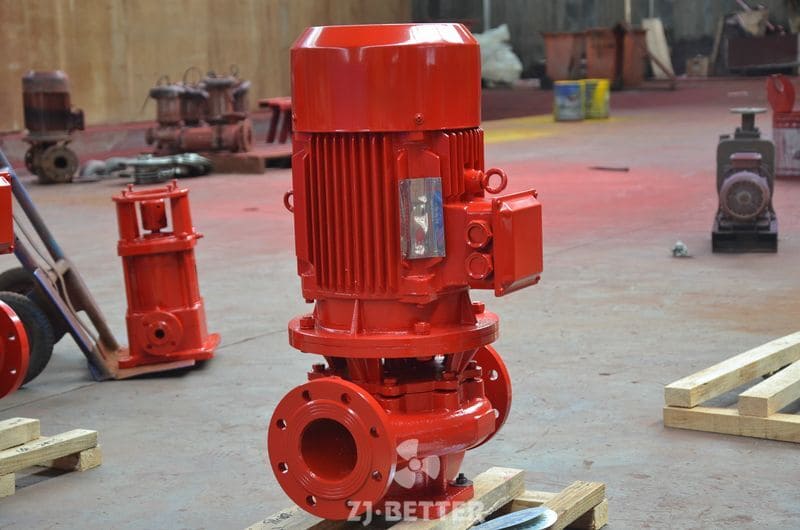

1. The pump is a vertical structure, the inlet and outlet diameters are the same, and they are located on the same center line. It can be installed in the pipeline like a valve. The appearance is compact and beautiful, the floor space is small, and the construction investment is low. Can be used outdoors.
2. The impeller is directly installed on the elongated shaft of the motor, the axial dimension is short, the structure is compact, and the pump and motor bearings are reasonably arranged, which can effectively balance the radial and axial loads generated by the operation of the pump, thereby ensuring the smooth operation of the pump. Low vibration and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy sealing ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively prolong the service life of mechanical seal.
4. Easy installation and maintenance, no need to dismantle the pipeline system, just remove the pump joint seat nut to extract all the rotor parts.
5. The series and parallel operation modes of pumps can be adopted according to the requirements of use, that is, the needs of flow and head.
6. The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline arrangement.
