IS Horizontal Single-stage Single-suction Centrifugal Pump

ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.

The horizontal single-stage single-suction fire pump has the characteristics of beautiful appearance, compact structure, less rotor winding, relatively stable operation, low vibration and low noise, convenient installation and use, and durable. The horizontal fire pump has a wide range of uses and is suitable for use in fire protection systems, pressurization systems, urban water supply and drainage, etc.

Fire pumps are widely used in our production and life, such as in water treatment, fire safety and other departments. After the reform and opening up, it is widely used in life and production due to its characteristics of complete sealing, no leakage, and corrosion resistance.

Fire pumps will have different forms, such as our common vertical fire pumps, horizontal fire pumps and submerged fire pumps, etc. Different fire pumps will be used in different places. Due to its compact structure and small footprint, the vertical fire pump is suitable for water supply for fire protection systems in various environments. Horizontal fire pumps are also suitable for fire water supply in various environments in theory, but because of their large flow and high work efficiency, they are more suitable for fire water supply in houses, hotels, hospitals, commercial buildings, etc.

Flow：50-5000 GPM
Head： 3-16 Bar / 40-232 psi
Power：11-1000 kw
Frequency：50 or 60 Hz

1.Electric Fire Pump
XBD series fire pumps are a kind of new type fire products researched and developed in full compliance with the state issued newly standard of GB6245-2006 “Fire pump”, according to the end-user’s practical needs and special using requirements.
The inspection of the state fire equipment quality supervising center shows its all kinds of performance indexes are up to or over the standard’s requirements and it earned the certificate for fire state products.
2.Jockey Pump
Pump motor, pump head, guide vanes, impeller, pressure tube, and out of the water segment, the shaft, mechanical seal components.
Pump key parts guide vanes, impeller, pressure cylinders, shafts are made of stainless steel pump head, and out of the water segment: CDL, pump iron castings CDLF pump with stainless steel precision castings.
Pump shaft seal, single mechanical seal friction pair to support the use of alloy steel carbide / graphite, the guide vanes.
Pump and piping connection type for the circular flange connection, according to user need to use different connection methods.

The horizontal fire pump has a single-suction multi-stage and segmented structure. Among the newly developed series of energy-saving products, its performance parameters including its technical indicators all meet the relevant international standards, so it has the largest The characteristic is that it is very efficient, and the noise is very low during operation. In addition, its corrosion resistance is also very good. In addition, its structure is very reasonable, so its service life is very long.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

In all fire pumps, we generally consider the two parameters of flow and head, because these two parameters are the most important. 30% of customers do not know what determines the power of fire pumps. In fact, the flow and head are the key to determine the power of the fire pump.

Flow：80-2700 GPM
Head：10-24 Bar
The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

The horizontal explosion-proof oil pump has a simple structure, convenient maintenance, can be fixed and installed without vibration, good sealing, low noise, convenient maintenance and low price. It can be used for garden sprinkler irrigation, high-rise building water supply and drainage, metallurgy, mining, food, chemical and fire protection systems and other industries to transport water, chemical media and other liquids.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

The vertical pipeline centrifugal pump is a pipeline centrifugal pump with a vertical structure. There are many models of the pump. The most common one is the ISG pipeline centrifugal pump. Urban water supply and drainage, high-rise buildings pressurized water supply.

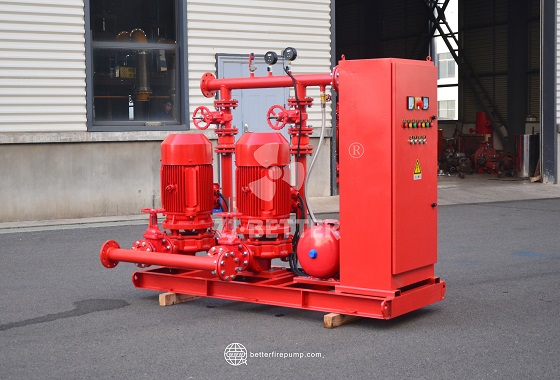

Two electric pumps(one duty and one standby) and a Jockey pump.also fesaible foe places where power supply is table or where there self-allocated generators
Electric pumps can use vertical in-line pumps,horizontal end-suction pumps,vertical multi-stage pumps,horizontal multi-stage pumps,split casing pumps and so on according to the different flow andhead of customers.

IS0 series single-stage centrifugal pump is a single-stage single-suction centrifugal pump product developed and designed by China Bede Technology Co., Ltd. with reference to similar international products and modern fluid mechanics to meet the international standard SO9908 second-level energy efficiency standard. The product integrates the advantages of similar products at home and abroad and adopts excellent hydraulic model to design. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the pump operating cost in a variety of applications.

The video shows the testing for a vertical multistage fire pump. Multistage pumps can be used to meet high pressure.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

In production and life, fire pumps have the characteristics of a wide range of applications, such as in water treatment, fire safety and other departments. Fire pumps can not only be used in fire protection systems, multi-stage fire pumps can also be used in industrial production and urban construction, including industrial and urban water supply and drainage, and pumping water for high-rise buildings. Engineering fire pumps are used for fire pumps in engineering sites such as fire hydrant systems, water sprinkler fire extinguishing systems, and foam fire extinguishing systems.

ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps. This horizontal centrifugal pump is equipped with explosion-proof device, which makes the equipment safer.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.

The vertical turbine pump can be used to transport liquids such as clear water below 55°C, rainwater, scale water, sewage, industrial wastewater with corrosive irritation, sea water, etc.; after special design, it can transport liquids at 90°C. It is widely applicable to industrial and mining enterprises such as water supply companies, sewage treatment plants, power plants, steel plants, and mining, as well as engineering projects such as municipal road engineering water supply and drainage, farmland irrigation, and flood control and drainage.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

The hot water pump is also a hot water pump product optimized on the basis of the ISG and ISW centrifugal pump series, especially the IRG hot water circulating pump has the largest consumption, because the pump adopts the vertical installation of the motor on the upper part, and the connection between the pump and the motor. There is also a short bracket in between, which will not cause the water in the motor to burn out the motor due to the leakage of the mechanical seal, and it can also be designed as a mechanical seal on the basis of the IRG hot water pump. The maximum temperature of high temperature pump products can reach 240 ¡ã C.

The Vertical Inline pump is used for conveying liquids. It consists of an electric motor, pump body, impeller, and sealing device. The pump is suitable for conveying various liquids and can be selected based on specific process requirements and medium characteristics.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.
