Jockey Pump: Essential Equipment for Fire Protection Systems

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The video shows the process of electric vertical turbine pump testing. Vertical turbine pump is better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Vertical turbine pump is used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea. Type JCW are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Self-priming pump is a self-priming centrifugal pump. It has the advantages of compact structure, convenient operation, stable operation, easy maintenance, high efficiency, long life, and strong self-priming ability.

Electric fire pumps are mainly used for pressurized water supply for fire protection systems, and can also be used for drainage of factories and mines. Mainly used in industrial and mining enterprises, engineering construction, high-rise buildings and residential area fire hydrant water supply system, automatic sprinkler fire extinguishing water supply system.

Regular testing is crucial. Weekly churn tests, monthly flow tests, and annual full performance tests are recommended to ensure the pump operates correctly and meets required standards.

Vertical chemical pumps are widely used in industrial and urban water supply and drainage, and can also be used for irrigation and drainage of farmland and orchards, for conveying clean water or other liquids with similar physical and chemical properties to clean water. It has the characteristics of high temperature resistance, corrosion resistance, wear resistance, no leakage or less leakage, capable of transporting liquid in critical state, and reliable operation.

A Vertical Turbine Fire Pump serves a crucial role in fire protection systems, especially in large commercial and industrial buildings, as well as facilities with high-rise structures. Its purpose is to provide a reliable source of water at adequate pressure and flow rate to fire sprinkler systems, hydrants, and other fire suppression equipment in the event of a fire emergency. Here are the main purposes of a Vertical Turbine Fire Pump:

The Vertical Inline pump is used for conveying liquids. It consists of an electric motor, pump body, impeller, and sealing device. The pump is suitable for conveying various liquids and can be selected based on specific process requirements and medium characteristics.

1.Radial runout of the shaft is controlled within 0.13mm of the US standard
2.Runs smoothly and the noise is low
3.Various stainless steel materials such as ductile iron, ASTM304, 316, 416 are selected to meet various special working conditions and technical requirements of users

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

Compared with other pumps of the same type, OTS horizontal split pump has the characteristics of long service life, high efficiency, reasonable structure, low operating cost, convenient installation and maintenance, etc. it is an ideal pump for fire fighting, air conditioning, chemical industry, sewage treatment and other industries.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

Philippines order us the booster pump set
The booster pump set normal use for water supply system
Use CDL type pump, flow is not big, but pressure higher

The name of the fire pump is the name of the fire pump. The pump used on fire protection. The fire pump is introduced to foreign products. According to different classification methods, it is divided into different types. It is widely used in environmental protection, water treatment, fire protection, etc. The department is used to pump all kinds of liquids. It is an ideal pump and fire system for creating non -leakage and pollution -free civilized workshops and civilized factories. The pump types are similar, but the raising and traffic are different. The selection basis for the fire pump should be considered according to the process of process and water drainage requirements.

Regular maintenance includes:

Inspecting and lubricating bearings.
Checking alignment and coupling conditions.
Inspecting impellers and pump bowl assembly for wear and damage.
Ensuring proper operation of control systems and alarms.
Conducting periodic performance tests to ensure compliance with design specifications.

Before start:

Turning the clutch by hand, there should be no jammedphenomenon at the turner position.
Opening the inlet valve and the vent valve, letting the waterfill into the pump’s chamber, then closing the vent valve.
Clicking the switch of motor, and confirming whether theturning is right or not.

Running:

Fully opening the inlet valves, and closing the valves of theoutlet pipe.
Connecting the power, Opening the valves of the outlet pipeand adjusting the needed working point when the turning velocityis normal.
Watching whether there exist abnormities or not, if yes,should the pump be stopped and inspected before re-running.

Stop:

After turning off the outlet valves one by one, shutting offthe power.
Shutting off the inlet valves.
If the ambient temperature is below 0 , some warm-℃keeping measures should be adopted.

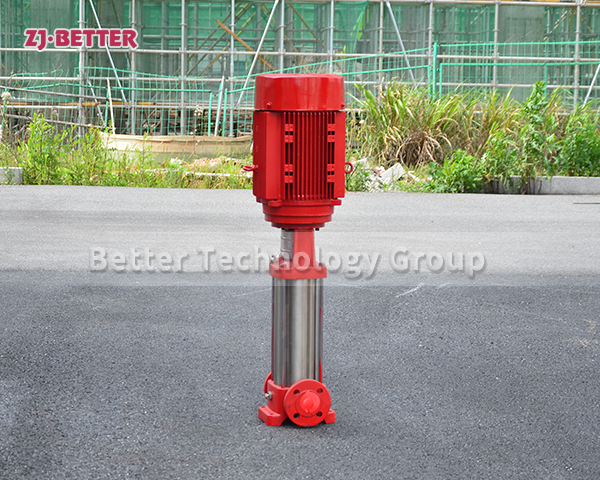

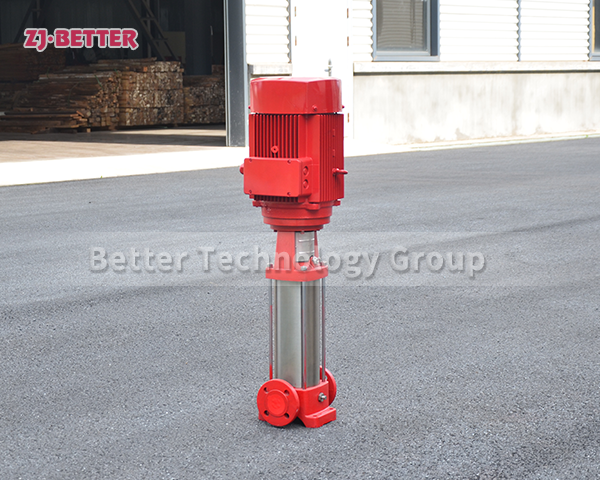

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor.
The motor output shaft directly connect with the pump shaft through a coupling.
The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet &outlet section with stay bolts.
The inlet and outlet are located at the pump bottom at the same plane.
This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Sewage pump is a pump and motor connected, and at the same time into the liquid work pump products, compared with the general horizontal pump or vertical sewage pump, sewage pump compact structure, small footprint. Easy installation and maintenance, large sewage pumps are generally equipped with automatic coupling device can be automatically installed, installation and maintenance is quite convenient. Long continuous operation time. Sewage pump because pump and motor coaxial, shaft is short, rotating parts light weight, so the bearing load (radial) is relatively small, life is much longer than the general pump. There is no cavitation damage and irrigation water problems. In particular, the latter point brings great convenience to the operator. Low vibration noise, low motor temperature rise, no pollution to the environment.

There are many classification methods for fire pumps, which can be divided into sprinkler pumps, fire hydrant pumps, stabilized pumps, etc. according to their uses.
The function of the fire pump is relatively powerful. There are many models and a wide range of functions. Its selection is a problem that many users need to take seriously. Choosing a suitable model is not only easy to use, but also convenient for later maintenance.

The G Single Screw Pump is a versatile positive displacement pump designed for the transportation of high-viscosity liquids. Featuring inter-meshing screws within the pump body, it creates continuous sealed chambers for efficient fluid movement. This pump finds widespread application in industries such as chemical, petroleum, food, and pharmaceuticals, where it excels at conveying high-viscosity, high-temperature, abrasive, or corrosive liquids. Its advantages lie in high-precision conveying, excellent self-priming capabilities, wide applicability, corrosion resistance, and low noise operation. The G Single Screw Pump offers a reliable and efficient solution for industrial liquid transportation needs.

Electric fire pump systems include several safety features, such as:

Pressure relief valves: Prevent over-pressurization of the system.
Jockey pumps: Maintain system pressure and reduce the frequency of the main pump’s operation.
Emergency stop buttons: Allow manual shutdown of the pump in case of an emergency.
Automatic transfer switches: Ensure seamless switching to backup power sources during a power outage.

Flow：80-2700 GPM
Head：10-24 Bar
The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

1. Better is a professional fire pump manufacturer with 17 years of industry experience
2. Professional sales team and R&D team, strong technical skills, self-produced control system
3. The motor is self-produced and can produce 50/60HZ

Pumps type IS is a kind of axial suction centrifugal pump with single stage and suc-tion.
It is used to pump clear water and physical or chemical liquid similar to clear water below85℃, and is widely applied to industries, to citywater supply and drain, and also to agricultural and orchard irrigation.

The OTS Double-Suction Split-case centrifugal Pump with High-Pressure Electric Motor is an exceptional firefighting equipment. This powerful combination delivers high flow rates and unmatched pumping efficiency, ensuring robust and continuous firefighting actions. Its compact design allows for quick deployment and rapid response, making it suitable for various settings. From rural wildfires to urban firefighting needs, this firefighting pump safeguards communities of all sizes, representing the pinnacle of safety and protection.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Equipment control function description
The equipment is designed to have one use and one standby function. The main pump runs
normally, and the standby pump starts automatically after the main pump fault .Control
cabinet with two start ways: remote start function and site start. (DC24V provided; Two
startup modes are available for users to select)
◆ Automatic start state
First, the switch to the “automatic” position, and then the remote startup instruction
sent. Upon receiving the startup instruction, it will immediately enter the running state, and
then the corresponding fire pump (jockey pump) indicator light on, the system will run the
main pump.Stop the running fire pump (jockey pump)remove the remote start instruction.
◆ Manual start state
First, put the switch to the “manual” position, press “fire pump start up” or “pressure
jockey pump start up” , then fire pump (jockey pump)operation indication lights on, then
enter the running state. When the fire pump (jockey pump) is running, press the “fire pump
stop or jockey pump stop button and the fire pump (jockey pump )stops running

·UL Standard:
Flow:50-500GPM
Head:6-16 Bar（90-230PSI）
·Non-UL Standard:
Flow：50-5000 GPM
Head：3-16 Bar（40-232 psi）

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.
