Maintenance Tips for End Suction Fire Pump Set

– Protection of Critical Data Infrastructure: Ensuring reliable fire protection for servers, storage, and network equipment.
– Non-Disruptive Fire Suppression: Implementing systems that minimize the risk of data loss or equipment damage.
– Redundant Systems for Reliability: Providing redundant fire protection systems to ensure continuous operation.
– Compliance with Data Center Safety Standards: Adhering to fire safety regulations specific to data centers and IT infrastructure.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. On the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency.
Good stability, vibration proof.
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

Fire pumps are more expensive than ordinary water pumps because they must meet specific fire protection standards and are built to handle high temperature and pressure water. They also have additional features, such as larger motors, to rapidly provide the necessary flow rate to meet fire protection requirements.

25≤Q≤100GPM
30≤H＜120m

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel engine fire pumps are large-scale fire pumps. Diesel engine fire pumps are currently the hottest fire pumps on the market, especially in large warehouses, docks, airports, petrochemicals, power plants, and liquefied gas stations. This kind of fire pump with large flow and high power is often needed.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

Regular maintenance is crucial to ensure the reliability of outdoor fire pumps. This includes checking and changing engine oil, inspecting and cleaning intake strainers, testing pump operation, and ensuring all hoses and connections are in good condition. Additionally, regular testing and inspection by qualified professionals are recommended.

Yes, fire pumps can be integrated with water mist systems, providing a fine water spray for fire suppression. The combined system is effective in controlling and extinguishing fires, especially in enclosed spaces.

The pump have the National Fire Protection Association Standard NFPA20 standards.The diesel engine fire pump is equipped with the characters of good and strong overload capacity, compact structure, easy to maintain and high degree of automation.
Fire Pump Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using a fire pump efficiently and reasonably is crucial to ensure its optimal performance and effective firefighting capabilities. Here are some key considerations for using a fire pump efficiently:

Proper Sizing: Ensure that the fire pump is properly sized for the specific application.

Regular Maintenance: Perform regular maintenance on the fire pump to keep it in optimal condition.

Optimal Operating Speed: Operate the fire pump at the optimal speed based on the required flow rate and pressure.

Water Management: Manage the water supply efficiently to avoid unnecessary waste.

Training and Familiarization: Provide training to firefighters and operators on the proper operation of the fire pump.

Monitoring and Control: Utilize monitoring and control systems to optimize pump operation. These systems can provide real-time information on flow rates, pressures, and energy consumption. Use this data to adjust operating parameters as needed and identify any anomalies or inefficiencies that may require attention.

Shut Down When Not in Use: When the fire pump is not actively needed, consider shutting it down to conserve energy and reduce wear on the equipment.

Record Keeping: Maintain records of pump operation, maintenance activities, and any performance issues.

Efficient and reasonable use of a fire pump not only helps conserve resources but also ensures its readiness to combat fires effectively. By following proper operating procedures, conducting regular maintenance, and promoting a culture of efficiency among operators, the fire pump can operate optimally and provide reliable firefighting capabilities when needed most.

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

Using Instruction£º
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Application Scope£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Our highly acclaimed Box-type Non-Negative Pressure Water Supply Equipment is the savior for your hotels, hospitals, schools, and more! Not only does it provide stable water flow and pressure, but it also guarantees fresh water quality! Suitable for life water supply systems in high-rise buildings, residential communities, and large-scale architectural complexes, bid farewell to water shortage worries! The Box-type Non-Negative Pressure Water Supply Equipment features an advanced automatic control system that instantly starts the water pump when demand increases, providing you with a continuous and stable water flow. And when demand decreases, the pump intelligently stops, avoiding energy waste! The compact box-type structure makes installation and maintenance a breeze! Whether it’s solving water supply issues in low-pressure areas or addressing the needs of places like hotels, hospitals, and schools where water cannot be shut off but face insufficient tap water pressure, our Box-type Non-Negative Pressure Water Supply Equipment offers the perfect solution!

Flow-1000GPM
Head-106psi
Power-100HP=75KW

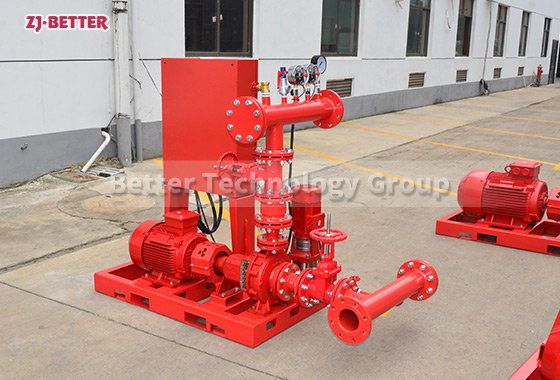

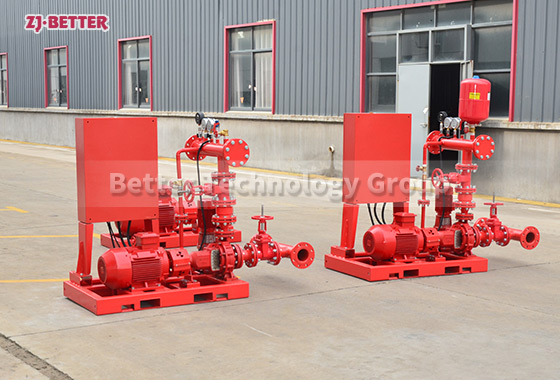

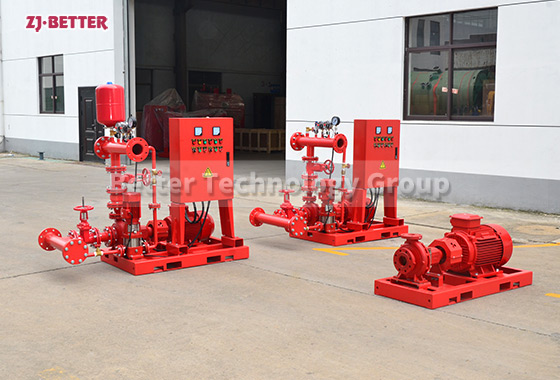

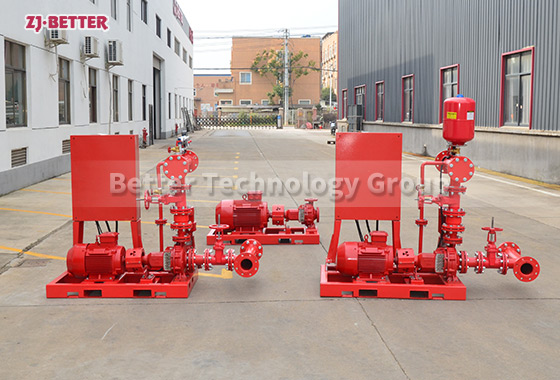

EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

Fire pump test headers allow for the controlled flow of water during routine testing. They are used to verify the performance of the pump, pressure switches, and other components, providing a standardized method for testing without affecting the main fire protection system.

Flow: 2500gpm
Head: 10bar
This pump uses horizontal split case pump.
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

In order to match the service cycle of the fire pump, the inspection of the diesel engine and the fire pump should be regularly checked, and the parts to be replaced or repaired should be adjusted and corrected in a timely manner. We need to check the fuel tank reserves and oil quality of the diesel engine fire pump every day; the usage of the battery; the cooling system, etc., the pump shaft, impeller, bearing, and the wear of the water pipe and filter screen of the water pump. (Diesel engines of different brands may be different, and should be checked and maintained according to the specific model and structure of the diesel engine).

The diesel engine fire pumps used in this series of equipment are made of domestic or imported high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable fire-fighting equipment.

Air in a centrifugal pump usually occurs because of a suction issue. Air can be introduced into the pump either because of a piping issue, such as low water level, or an internal issue, such as incorrect impeller clearance. To prevent air from entering the inlet pipe and pump body, the piping should be checked to ensure it is properly sealed and the pump should be regularly inspected to check impeller clearance.

Fire pump equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Electric fire pumps can be located inside the building. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

The fire pump is usually equipped with a local control cabinet. The control cabinet does not have a transfer control switch for automatic and manual conversion, but the automatic control loop leaves start and stop contacts, which are connected to the fire alarm system control module. In addition, according to the relevant regulations, the system using the bus linkage control should also be set in the fire control room with buttons that can directly start and stop the pump. When the fire alarm system receives the signal of the fire hydrant start pump button, the control module automatically starts the fire pump and collects its feedback signal.

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.
