Market Outlook and Trends of EJ-ISO(UL) Dual-Power Fire Pump Sets

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure jockey pumps. It is also suitable for various villas, residential areas and other fire systems, industrial Compatible with civil building fire protection systems, it is also suitable for various oil depots, oil product loading and unloading docks, logistics parks and other places with high fire protection requirements.

An FDC is an external connection point that allows the fire department to supplement the water supply to the fire protection system using their hoses and equipment if needed.

EEDJ Fire pump set for small flow is made of E+E+D+J
Operation: 2 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 30, 50, 80, 100, 150 GPM with pressure 4, 5, 6, 8, 10Bar.
Pressure vessel 12, 24liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

The parts that may cause friction when the pump rotates are all made of wear-resistant, corrosion-resistant and high-anti-seize material combinations to ensure reliable operation, reduce noise, and avoid rust water, blocking spray and other fire-fighting devices, extending service life and after shutdown. Rust bite phenomenon.

EDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

With the advent of the information age, people have higher requirements for the quality of life, and fire safety is particularly important for high-rise buildings. The state attaches great importance to fire safety work. All workplaces require us to be equipped with fire safety facilities, and fire pumps are necessary water intake equipment for fire infrastructure. The commonly used fire pumps in our country are electric fire pumps and diesel fire pumps. The difference between the two is that the electric fire pumps need a power system. If the diesel engine fire pumps can be started at any time to fill the position of the original electric fire pumps.

After several years of R&D testing and certification, Beide Technology Group Co., Ltd. has obtained FM/UL certification for its existing fire pumps after obtaining domestic 3CF certification, and joined the NFPA Fire Engineers Association. Beide Technology Group Co., Ltd. has been committed to providing human beings with more reliable, more energy-saving and safer pump products.

Sizing diesel fire pumps involves evaluating factors such as the building’s occupancy classification, area of coverage, hazard level, and required flow rates for firefighting purposes. Hydraulic calculations are typically performed to determine the water demand and pressure requirements, which are then used to select a diesel fire pump with the appropriate capacity and performance characteristics. It’s essential to work with qualified engineers or fire protection specialists to ensure that the pump is sized correctly for the specific application.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

First of all, check whether the oil level is normal and cannot reach the oil mark line on the normal surface. If it is not, we must replenish it in time, but remember one thing, it cannot exceed the amount of the oil quantity indicator line.

Secondly, check the radiator. The water is appropriate. If it is not added in time, the water that needs to be added must be clean water, as long as it is clean water, or tap water is fine. Why not use groundwater, because impurities in groundwater can easily form scales in the water tank, which affects the cooling effect and is also prone to failure. In winter, we drive to preheat the car, add coolant to the car, and the fire pump is no exception. The weather in the north is very cold, so add the coolant to the fire pump according to the actual temperature.

Finally, check the installation of each part of the fire pump, such as whether they are stable, the connection between the screw and the screw, if there is any looseness, tighten the screw in time. To clean the fire pump, soak a canvas or dry cloth and wipe slowly on the body or on surfaces made of grease or dust.

Safety precautions include de-energizing electrical systems before maintenance, providing proper ventilation in pump rooms, and following lockout/tagout procedures to prevent accidental startup.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump is suitable for unmanned emergency water supply system. The product has the characteristics of good technology, high degree of automation, high performance and protection function, reasonable structure, easy installation, and high cost -effectiveness. Supplement the pressure of the network.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Electric Motor Fire Pumps
2. Diesel Engine Fire Pumps

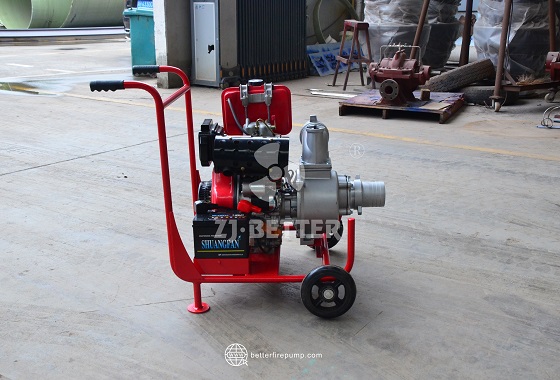

3. Portable Fire Pumps
4. Turbine Fire Pumps
5. Horizontal Split Case Fire Pumps
6. Vertical In-Line Fire Pumps
7. Vertical Turbine Fire Pumps
8. Jockey Fire Pumps

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity or diesel. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers.
Our factory can manufacture NFPA20 compliant fire pumps.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

An electric main pump,a jockey pump(used in the place where the pump runs entirely through the electric pump)
Electric Pumps:Electric pumps can use vertical in-line pumps,horizontal end-suction pumps,vertical multi-stage pumps,horizontal multi-stage pumps,split casing pumps and so on according to the different flow andhead of customers.

Diesel fire pump systems consist of several key components, including the diesel engine, pump assembly, fuel system, cooling system, control panel, and associated piping, valves, and fittings. Each component plays a crucial role in the operation and performance of the fire pump system, and regular maintenance and inspection of these components are essential to ensure reliable operation during emergencies.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The electric fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Fire fighting pumps are used in a wide range of settings, including residential, commercial, industrial, and wildland firefighting situations. They are also used in fire trucks, aircraft firefighting systems, and marine firefighting applications.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. It can completely meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system produced by our factory to realize the function of remote monitoring.

Recent advancements in fire pump technology have focused on improving efficiency, reliability, and ease of maintenance. Innovations such as variable frequency drives (VFDs) allow fire pumps to adjust their speed and output based on demand, reducing energy consumption and mechanical stress. Smart controllers with advanced diagnostics and remote monitoring capabilities enable proactive maintenance and faster response to potential issues, ensuring pumps remain operational when needed most. Additionally, improvements in pump materials and design, such as corrosion-resistant alloys and compact configurations, enhance durability and reduce the footprint of fire pump installations, making them more suitable for various applications.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. When the diesel engine fire pump is insufficient in fuel, low battery voltage, and high lubricating oil temperature , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

Yes, fire pumps in high-rise buildings must account for increased pressure requirements and vertical lift. Proper placement, redundancy, and access for maintenance are also critical in these applications.

Guide readers through the process of determining the ideal fire pump size based on their facility’s unique layout, occupancy, and fire suppression needs. Explain concepts like required water flow rate and pressure, and recommend consulting with a fire protection engineer. Discuss how undersized pumps may fail to provide adequate protection, while oversized pumps may lead to unnecessary costs and maintenance.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

While the primary purpose of fire pumps is firefighting, some systems may incorporate them for other water supply needs, such as industrial processes or water distribution. However, their design and functionality are optimized for firefighting applications.

DJ Fire Pump Application Scope:
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%.
