New design small flow fire pump set

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply available.

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure stabilizing pumps. It is also suitable for various villas, residential areas and other fire systems, industrial It is also suitable for various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection level requirements.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability.

Fire pump controllers are devices that monitor and control the operation of fire pumps. They ensure that the pump starts automatically during an emergency, regulate pressure, and provide safety features. Controllers play a crucial role in the overall functionality of the fire pump system.

Simplifies piping design
Single source unit responsibility
A complete package that will meet NFPA20 requirements
Packaged systems are performance and hydrostatically factory tested at an IS09001 certified manufacturing facility prior to shipment.
No material lost due to on-site material handling
Improves the speed of construction and reduces on-site installation time
Only external suction, discharge and power connection are required on-site
State of the art engineering design

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

The electric fire pump is an important part of the fire water supply system. The electric fire pump consists of two parts, the motor and the pump. The pump and the motor are coaxial. The pump structure includes pump body, impeller, pump cover, mechanical seal and other components. It is suitable for building fire protection engineering, high-rise building water supply, water tower water supply, long-distance transmission, cycle pressurization, and also suitable for heating rooms, boilers, hot water stations, and cold and hot water circulation.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

In the daily maintenance of the fire pump, we need to meet the following requirements: we need to ensure that the water inlet and outlet pipes, the various components of the controller, and the diesel engine system can work normally, and ensure that the power part is firmly connected to the water pump. We also need to check the opening status of the pump room, fire pump system, and various valves to ensure that the pump room has good heat dissipation conditions and that the components of the pump are in normal working condition.

The diesel engine (can be equipped with a clutch) is combined with the fire pump through a highly elastic coupling to form a fire pump unit. The unit also includes diesel tanks, cooling water tanks, fans, control panels (for automatic units) and other components.
When the unit is automatically controlled, the split or diesel engine automatic control cabinet (programmable) realizes the automatic start, input, and automatic switching of the system (switching from the electric pump group to the diesel engine pump group or from this group of diesel engine pump groups to another group of diesel engines) pump set), automatic protection (diesel engine overspeed, low oil pressure, high water temperature, three start failures, low oil level, low battery voltage and other alarm shutdown protection) and other functions, and can also interface with the user’s fire center or automatic fire alarm device, Realize remote monitoring.

Using Instruction:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

Fire pumps work by drawing water from a water source (such as a storage tank or a dedicated water supply) and then increasing the pressure to deliver water through the fire sprinkler system or hoses. They are typically powered by electric motors or diesel engines.

Discuss the applicability of fire pumps in residential buildings, particularly high-rise or large complexes where water pressure may be insufficient for fire suppression. Explain what factors make fire pumps necessary in certain residential scenarios, such as building height and local fire code requirements, and outline how they can be adapted for residential use, ensuring safety without excessive water pressure.

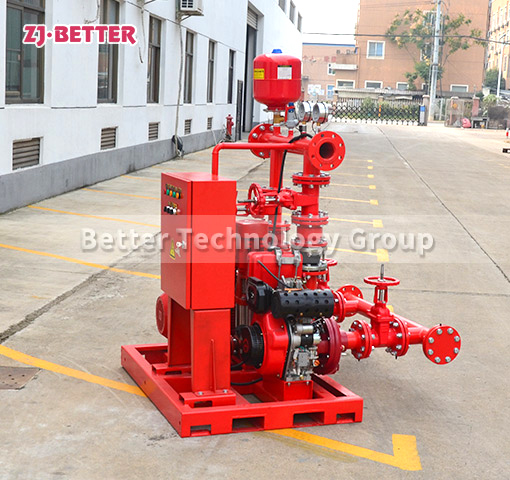

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

While firefighting pumps are specifically designed for extinguishing fires, they can sometimes be adapted for other applications, such as irrigation or water transfer, depending on the pump type and specifications.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

1. Water filling treatment Before selecting the power-on power, make sure that the fire pump should be filled with water when it is turned off, and the suction should be increased to make the pressure difference larger and quickly clean up some acid-base reagents and other pollutants. Make sure to fill the water well.

2. Selection of electrified power The horsepower of the fire pump will be selected according to the size of the pump. Before electrifying the pump, carefully check the electrical power. Once the power is not grasped accurately, it is easy to cause insufficient suction. Therefore, in order to make it have sufficient suction, the power should be selected reasonably. If there is no electricity, the fire pump cannot be started, let alone used. But does it mean that the pump can be used as long as there is electricity? Not necessarily, the pump can only be used if the electrified power is reasonable and the voltage is within the normal range.

Electric fire pump with jockey pump. 300gpm,8bar

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Outdoor fire pump set
The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.
