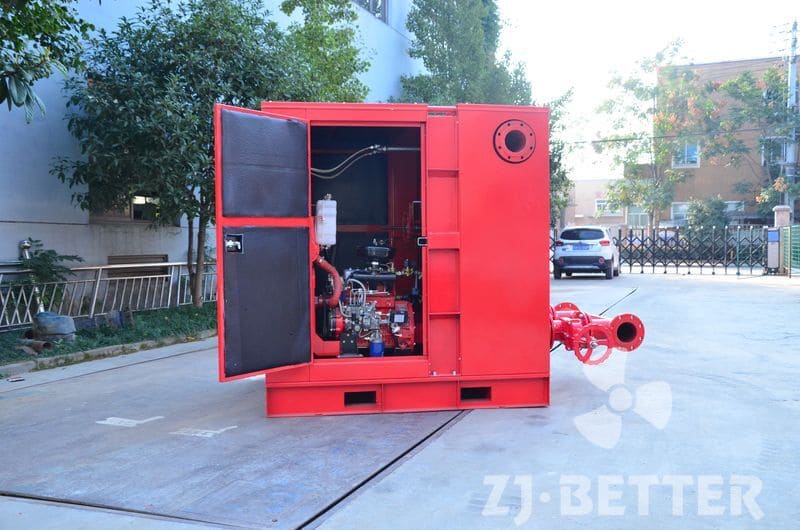

no need to bulid the pump house

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

EEDJ Fire pump set for small flow is made of E+E+D+J
Operation: 2 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 30, 50, 80, 100, 150 GPM with pressure 4, 5, 6, 8, 10Bar.
Pressure vessel 12, 24liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

With the continuous development of society, people have higher requirements for the quality of life, and the safety of diesel engine fire pumps is more important. All places need to be equipped with fire-fighting facilities, and fire pumps are water intake equipment for fire-fighting facilities. A fire pump Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps need power system supply. In the event of a power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has an ultra-low pressure start-up device, the matching electric water pump control cabinet should also have an ultra-low-pressure start-up device, and the lower limit of the two pumps should have a certain pressure difference. Of course, according to customer requirements, design a control system that is more suitable for customer needs.

In fire protection systems that include fire hydrants, jockey pumps play a key role in maintaining the necessary system pressure to ensure hydrants are immediately ready for use. Fire hydrants are typically located throughout a property or a city to provide easy access to water for firefighting efforts. The jockey pump helps maintain a consistent pressure in the piping network that supplies these hydrants, ensuring they are always charged and ready to deliver water when a firefighter opens them. This is especially important in systems with extensive piping networks, where pressure fluctuations could occur due to minor leaks, thermal expansion, or water usage. By keeping the system pressurized, jockey pumps help ensure a rapid response during a fire emergency, providing critical support to firefighting operations.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

XBC diesel engine fire pump is a fire protection product independently developed and produced according to the market demand and usage of domestic and international fire pumps. The use of this series of products, long operating life, good product reliability, is currently the domestic and international market fire engineering, sprinkler facilities fire pump products. The fire equipment quality supervision and testing center has been approved by the fire department according to the performance requirements and experimental methods of GB6245-2006 “fire pump”.

The electric pump of this fire pump group adopts XA pump, which has good suction performance. The suction section of the pump is of an expanded structure, which reduces the flow rate of the pump inlet, so that the pump has good suction performance, a small necessary NPSH, and improves the prolongs the service life of the impeller and pump casing.

1.Flow：1000 GPM
2.Head： 14 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

No, a fire pump should never run without water. Running a fire pump dry can cause significant damage to the pump’s internal components, leading to overheating and failure. Ensuring the water supply is reliable and monitored is essential for proper fire pump operation.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Diesel fire pumps are ideal for applications where a separate pump room already exists or where the pump room is located on an exterior wall. Facilities using diesel fire pumps include warehouses, aircraft hangars and industrial facilities. Since they have a larger footprint than electric fire pumps, they are not suitable for installations where space is small. Unlike diesel pumps, electric fire pumps can be located inside buildings. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

The use of fire pumps is generally based on different situations. Different types will have different classification methods. The fire pump is in its own fully sealed state, without the possibility of leakage, and can resist corrosion. , is widely used, and is mainly used in fire protection, sewage treatment and some departments of environmental protection. It is used to pump different liquids, so that there is no leakage and no pollution. It is very civilized A kind of fire engine, which is very beneficial to the use of all of us.

Better Technology Co.,Ltd is a professional manufacturer of kinds of fire pump systems. We provide diesel engine fire pump set, motor electric driven fire pump set, EDJ fire pump set. We also have UL, ISO CE Certificates. More information pls contact us.

The tank-pump integrated fire water tank includes a water tank, an air pressure water tank, a water pump unit, an electric control cabinet, a liquid level instrument, a pipeline, a bottom plate, and an internal and external ladder. The water tank, the air pressure water tank and the bottom plate are connected as a whole, and the water pump unit Located on one side of the water tank, the electric control cabinet is arranged in the water tank, the pipeline is connected with the water pump unit and the water tank, and the inner and outer ladders are connected on the side of the water tank. The fire-fighting equipment of the utility model is simple in structure, low in cost and easy to install. While meeting the fire-fighting needs, the project cost, construction period and floor space are reduced.

As a fixed firefighting equipment, diesel engine fire pumps are widely used in firefighting and shunting operations, especially when there is no power supply or no power supply (main power supply).
Diesel fire pumps can also be equipped with other diesel engines as power engines according to user needs. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery, intelligent self-control panel, etc. The crankshaft of diesel engine fire pump has high overall rigidity, high strength and high torque transmission efficiency. Adopt international advanced technology, sliding bearing, plate-fin cooler, upper heat exchanger, rotary oil filter, double cooling system. Diesel engine fire pump performance, smoke and noise indicators meet national standards.

The fire pump is mainly used to pressurize and send water to the fire system pipeline. It can also be applied to industrial and urban water supply and drainage, high-rise building underpressure water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water supply and equipment matching and other occasions. The fire pump produced by Better Technology Group Co., Ltd. has the advantages of simple structure, stable performance, high speed, small size, light weight, high efficiency, large flow, easy operation and maintenance, etc.

With the advent of the information age, people have higher requirements for the quality of life, and fire safety is particularly important for high-rise buildings. The state attaches great importance to fire safety work. All workplaces require us to be equipped with fire safety facilities, and fire pumps are necessary water intake equipment for fire infrastructure. The commonly used fire pumps in my country are electric fire pumps and diesel fire pumps. The difference between the two is that electric fire pumps require a power system, and diesel engine fire pumps can be started at any time to fill the original position of electric fire pumps.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The diesel engine fire pump can form an automatic water fire water supply system with electric pumps and jockey pumps, and can be linked with the fire control center.
When the diesel engine fire pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set, start the motor, start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine until Rated speed. The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the diesel engine fire pump set receives a signal that the pressure of the pipe network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

Applications:
High-rise hotel, high public places;
High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

EDJ fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance. For conveying clean water or other liquids similar to water in physical and chemical properties.
