Non-UL EEJ fire pump set

XBD series fire pump sets are mainly used for fire hydrant fire extinguishing systems and automatic sprinkler fire extinguishing systems in fixed fire protection systems of various enterprises, institutions, engineering construction, high-rise buildings, etc. The chemical properties are similar to the medium of water, and it can also be used for fire protection, living, production, public water supply systems and buildings, municipal water supply and drainage, etc.

1150LPM@60M Fire Pump Package Set For Your Reference

120≤ Q≤1000GPM
H＜150m
Electric pump + Diesel engine pump + Jockey pump
Pump – Horizontal end suction pump

The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the fire control system control cabinet produced by our factory to realize the function of remote monitoring.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Pressure relief valves prevent over-pressurization in the fire pump system. They ensure safe operation by releasing excess pressure, protecting the pump and connected piping from damage.

Troubleshooting common issues with fire pumps involves systematic checks of components, electrical systems, and fluid dynamics. Regular maintenance and having a qualified technician perform diagnostic tests are essential.

EDJ fire pump small flow capacity: 50gpm, pressure: 5bar

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

– Handling of Flammable Materials: Ensuring systems are designed to handle and suppress fires involving highly flammable substances.
– Explosion-Proof Components: Using explosion-proof components to prevent ignition in volatile environments.
– High Capacity and Redundancy: Implementing high-capacity and redundant systems to ensure continuous operation.
– Compliance with Oil and Gas Safety Regulations: Adhering to stringent fire safety regulations specific to the oil and gas industry.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

The lifespan of a fire pump depends on factors like maintenance, usage, and environmental conditions. With proper maintenance, fire pumps can last for several decades.

Diesel engine fire pumps are getting more and more attention, and the scope of use is becoming wider and wider. From the original pure water delivery to the current delivery of various domestic sewage, industrial wastewater, construction site drainage, liquid feed, etc. It plays a very important role in municipal engineering, industry, hospital, construction, hotel, water conservancy construction and other industries.

DJ fire pump set consist of diesel pump, jockey pump and control panel. The diesel engine is fixed on the base with anti-vibration rubber pads and the pump is directly coupled to a diesel engine through flexible coupling, According to the power output of the engine the electrical system, the diesel engine can be Cummins,Deutz,Perkins and Other China brand engine(Shangchai,Yuchai,ec.) and it consists of alternator, started motor, fuel system, lubricating system, exhaust system, etc.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw

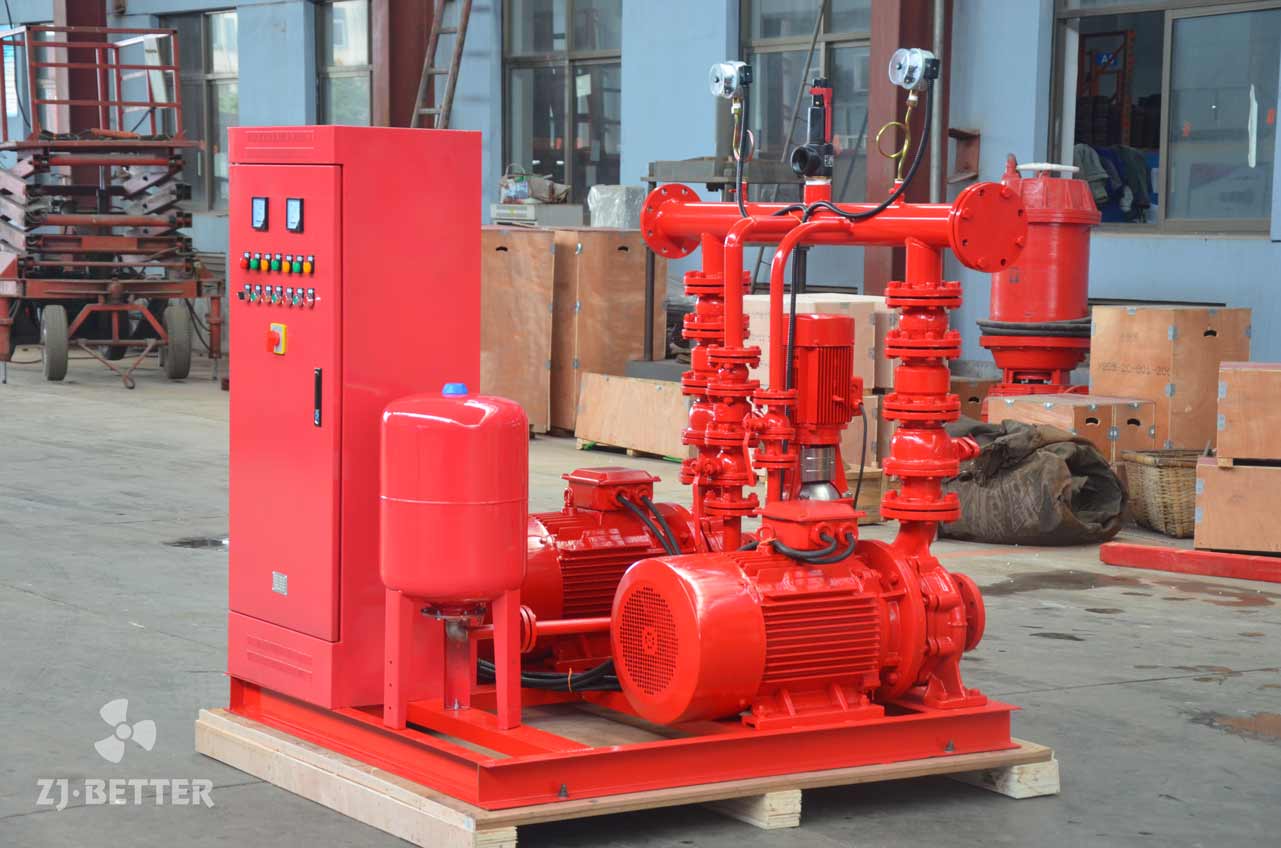

The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. The diesel engine pump set is driven by diesel and does not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is most suitable to choose a diesel engine to drive the water pump.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, storage and other places, and the performance requirements and quality requirements are different. The commonly used types of fire pumps are vertical electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multiple Level fire pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

What kind of terrain to choose what kind of water pump

This problem, in short, is the selection of water pumps. The following are the applicable way for you to choose water pumps from zjbetter. I hope they can help you choose water pumps and help you better. Choose the water pump that suits your design.
1. Confirm the use terrain
First understand the terrain in which the outfit is used, including temperature, moisture, air pressure, air cattiness, dustproof and leakproof conditions, and the position of dangerous areas.
2. Confirm operating conditions
Refers to the liquid face pressure( absolute) on the suction side of the liquid, the liquid face pressure on the discharge side, intermittent or nonstop work, fixed or mobile position, and the convenience of installation and conservation.
3. Confirm the nature of the medium
Medium temperature, viscosity, density, impregnated vapor pressure, solid flyspeck periphery and content, gas content, cattiness, volatility, trap, toxin.
4. elect the material of the pump bathe corridor
According to the physical and chemical parcels of the pumped medium above, the material of the inflow- passing corridor is determined.
5. Determine performance parameters
The performance parameters of the water pump can be determined by computation, analogy, test and other styles.
6. Determine the installation type
The installation of the channel is determined by the layout of the channel and the installation point, and there are direct connection, perpendicular and other types.
8. Determine the number of pumps
In general, spare pumps, especially fire pumps, are set up, and the number of pumps is named according to different situations.

There are several types of fire pumps, each designed for specific applications. Two common categories are centrifugal and positive displacement pumps.

Centrifugal pumps are widely used in fire protection systems due to their simplicity and reliability. They work by imparting kinetic energy to the water, which then exits the pump under pressure. These pumps are well-suited for maintaining consistent water pressure for fire suppression.

Positive displacement pumps, on the other hand, use a different mechanism. They trap water in a chamber and then force it into the discharge piping, creating pressure. Positive displacement pumps are typically used in situations where high pressure or low flow is required.

The choice of pump depends on the specific needs of the fire protection system and the facility it serves.

Diesel engine fire pumps can choose ductile iron and 304/3116 stainless steel materials, which can meet various special use conditions and technical requirements of users, and diesel engine fire pumps can be matched with different brands of diesel engines to ensure stable performance of diesel engine fire pumps. Long service life, high degree of automation.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

Fire pumps generate heat during operation, and preventing overheating is essential to maintain their efficiency and longevity. This article explores various cooling methods for fire pumps, including air cooling, water cooling, and heat exchangers. It highlights the role of cooling systems in preserving pump performance.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers.

Fire pumps are designed to operate in a range of environmental conditions, but extreme weather conditions can pose challenges. Adequate protection measures and regular maintenance help ensure that fire pumps function reliably in various weather conditions.

The fire pump is all made of polymer materials, so it has many characteristics such as cleanliness, good safety sealing, corrosion resistance, etc. It is a product that is believed in many fields at present. It has a long service life and can make the best use of it without wasting money. It is suitable for fire-fighting engineering in steel, metallurgy, electric power, petroleum, chemical, construction, port and other operations and emergency water supply for blast furnaces, continuous casting, converters, etc. Water supply works.

The fire pump is part of the water supply of the fire sprinkler system and can be powered by electricity or diesel. The inlet of the pump is connected either to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). The pump supplies water at higher pressure to the sprinkler system risers and hose risers.
Fire pumps generally use three driving forces, including diesel engines, gasoline engines and electric motors. Gasoline engines are commonly used in portable fire pumps and light duty firefighting. Electric motors are the most widely used driving force for fire pumps and are both efficient and convenient.

ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.
