Non-UL EJ pump sets

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The fire-fighting dual-power water supply equipment produced by Better Technology Co., Ltd. is designed and manufactured in accordance with GB 27898.5-2011 Stationary Fire-fighting Water Supply Equipment Part 5 <>. It meets the requirements of 3CF certification and has obtained 3CF certification for fire protection products.

Diesel engine fire pump is a new type of fire-fighting product that made strictly according to the national standard GB6245 and NFPA 20 fire pump performance requirements and testing methods, this series have wide head, flow range, can fully meet various occasions fire water supply in the warehouse, docks and airports, petroleum chemical industry, power plant, liquefied gas station, textile and other industrial and mining enterprises.

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Flow: 5-120L/s

Head:0.2-1.6MPa

Caliber: 50-250mm

Power: 3-220kW

Speed: 1500-2600r/min

Working Pressure: 1.6MPa

Diesel engine fire pump is a kind of fire-fighting equipment that we often see and often use in our life. The diesel engine fire pump has the characteristics of good starting performance, strong overload capacity, compact internal structure, convenient maintenance, simple operation and high degree of automation. It is a very reliable fire fighting equipment.

We can manufacture fire pumps that are NFPA20 compliant and UL listed.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

Answer: First of all, we must understand the relationship between pressure and lift: pressure = liquid density * g * lift (g = 0.981). In fact, the fire water pump can not only transport water, as long as the physical and chemical characteristics and water liquid are fine, but most of them transport water in daily life. The density of water is 1 ton per cubic meter. It can be obtained from the above formula : Pressure=1000*0.981*lift, pressure=0.981*lift, at this time the pressure and lift are almost the same, so whether we refer to lift or pressure, it can basically be regarded as a parameter.

A fire pump system typically includes the pump itself, a driver (usually an electric motor or diesel engine), a controller, and various accessories like suction and discharge piping, check valves, and pressure gauges.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers, etc., which can all be completed by means of fire pump systems.

Fire pumps used in different fields have different professional characteristics. For example, fire pumps in the general sense are installed on professional fire trucks or other special fire-fighting facilities, and are used to transport water and foam solutions for fire-fighting Pump.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

• Automatic switching between three pumps, when the electric fire pump fails, the diesel engine backup pump will automatically start
• Works even with power outages
• Adopt high-quality NSK bearing, wear-resistant mechanical seal or packing seal
• Product parameters available upon request

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

Water supply reliability is paramount for the effective operation of fire pumps. This article explores the significance of a consistent and adequate water source, such as municipal water mains, dedicated fire service water tanks, or reservoirs. It highlights the measures required to ensure water supply reliability and the potential consequences of water source inadequacy.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

In order to match the service cycle of the fire pump, the inspection of the diesel engine and the fire pump should be regularly checked, and the parts to be replaced or repaired should be adjusted and corrected in a timely manner. We need to check the fuel tank reserves and oil quality of the diesel engine fire pump every day; the usage of the battery; the cooling system, etc., the pump shaft, impeller, bearing, and the wear of the water pipe and filter screen of the water pump. (Diesel engines of different brands may be different, and should be checked and maintained according to the specific model and structure of the diesel engine).

1. The performance of the fire pump should meet the flow and pressure requirements of the fire water supply system.
2. The power of the driver equipped with the fire pump should meet the requirements of the power required for operation at any point on the performance curve of the selected pump’s flow and lift.
3. When a motor-driven fire pump is used, a dry-installed fire pump with the motor should be selected.
4. The fire pump should be installed dry, and the pump should be placed outside the pool, and the submersible pump cannot be directly placed in the water for water absorption.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

Firefighting pumps can be powered by various sources, including gasoline engines, diesel engines, electric motors, and even manual operation in some cases. The choice of power source depends on factors such as portability, availability of fuel, and the intended application.

When installing fire pumps and jockey pumps, environmental considerations are increasingly important to minimize ecological impact and comply with regulatory standards. This includes choosing energy-efficient models that reduce power consumption and greenhouse gas emissions, which can be particularly significant for systems that operate continuously or frequently. Additionally, it is important to consider the water source for fire pumps, ensuring that they do not deplete local water supplies or adversely affect nearby ecosystems. Using sustainable materials and manufacturing processes for pump components can also reduce environmental footprints. In some cases, fire pump systems can be integrated with rainwater harvesting or greywater recycling systems to utilize alternative water sources, further minimizing environmental impact.

Application fields of fire pump set:
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc., national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports, fire engineering companies.

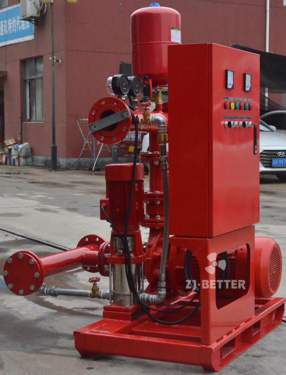

EJ fire pump set producting
150gpm 7bar electric fire pump with jockey pump
Assemble in our workshop

EEJ Fire Pump Set means 2 electric pumps and 1 Jockey pump. The rated pressure is less than 150m. The speed is 2950 to 3550 RPM.
