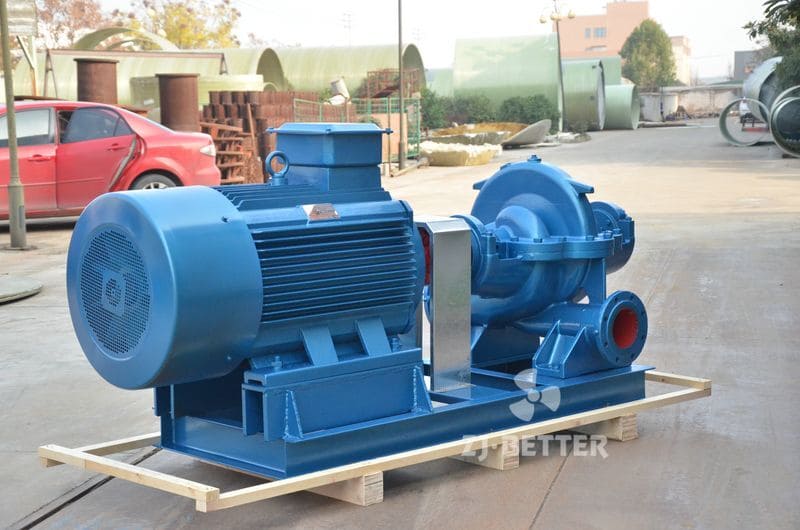

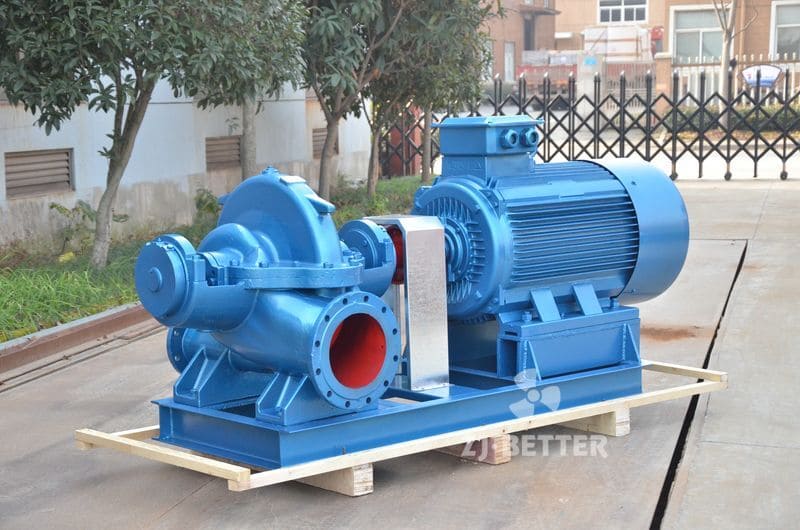

OTS Electric Split Case Pump

Flow：50-5000 GPM
Head：3-16 Bar (40-232 psi )
Power：11-1000 kw
Frequency：50 or 60 Hz
ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

ZX series self-suction pump is an energy saving pump designed with ISO international standard and developed through absorbing and improving the related technical data both at home and abroad and belongs to the self-suction centrifugal pump and uses the mechanical seal of a ceramic ring so as to resist any sandy liquid to go into the sealing face, preventing it from getting scratched. This pump holds the advantages of a compact structure, easy operation, stablemovement, easy maintenance, high efficiency, long duration and strong self-suction capacity and, as no foot valve is needed to be mounted on the pipeline and only a certain amount of leading liquid is required to be filled into the pump before work, improves the work condition while simplifying the pipeline system.
This pump can be equipped with either Y series common motor or YB series explosion-proof one upon the different surroundings of use.

The split case pump is also known as a single-stage double-suction centrifugal pump, and its main feature is that the flow rate of the conveying medium is large. The working principle of the split pump operation: The impeller is installed in the pump casing and fastened to the pump shaft, which is directly driven by the motor. There is a liquid suction and suction pipe in the center of the pump casing. The liquid enters the pump through the bottom valve and suction pipe. The liquid discharge port on the pump casing is connected with the discharge pipe. When the speed of the pump is constant, its pressure head and flow rate are related to the diameter of the impeller.

Vertical turbine pump is a kind of centrifugal pump. From the perspective of centrifugal pump, it is improved from the performance of submerged pump. This pump can be used to transport rainwater, iron oxide water, sewage, corrosive industrial Wastewater, seawater and other liquids. Widely used in water companies, sewage treatment plants, steel plants, mines and other industrial and mining enterprises, as well as municipal water supply and drainage, farmland irrigation, flood control and drainage projects.

The vertical pipeline centrifugal pump is a pipeline centrifugal pump with a vertical structure. There are many models of the pump. The most common one is the ISG pipeline centrifugal pump. Urban water supply and drainage, high-rise buildings pressurized water supply.

The operation efficiency of the vertical turbine pump is very high if you choose the right model. The premise is to choose the correct model according to the use environment. The vertical electric fire pump is also a long-axis fire pump. The lift, flow and power can meet the needs of most users. Fire pump manufacturers should be responsible for the performance and quality of each type of long-axis fire pump to ensure the normal use of customers.

OTS split case pump is applicable to hydraulic engineering, irrigation and drainage pump station, fire protection system, marine application and oil refining industry. The pump has low noise and good stability, and ensures a comfortable environment in use.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums. Consulting with professionals and adhering to maintenance guidelines ensures the safe and reliable operation of the pump within air conditioning systems.

Pumps type IS is a kind of axial suction centrifugal pump with single stage and suc-tion.
It is used to pump clear water and physical or chemical liquid similar to clear water below85℃, and is widely applied to industries, to citywater supply and drain, and also to agricultural and orchard irrigation.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums.

The mud pump is mainly used to transport the mud medium with high consistency or more particles and debris. It is often used in construction sites, enterprise production, and mud pond pumping.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

WXZQseries fire pneumatic water supply equipment is composed of fire pressure stabilizing device, fire pump and electric control system. As a complete set of equipment, it can meet all technical specifications of automatic fire water supply. In addition, it can accept and process all kinds of fire signals, replace the fire control center, and send out all kinds of operation and fault alarm signals.

The reasonable use and serious maintenance of the fire pump is the most important prerequisite for ensuring the normal and reliable operation of the pump, giving full play to the emergency function and prolonging the service life. In order to make the pump operator familiar with its structural characteristics, grasp the use and maintenance methods, and make good use of the pump, we have prepared this manual for the operator reference.

Features:
1. The pump is a vertical structure, the inlet and outlet diameters are the same, and are located on the same center line. It can be installed in the pipeline like a valve. The appearance is compact and beautiful, the floor space is small, and the construction investment is low. Can be used outdoors.
2. The impeller is directly installed on the elongated shaft of the motor, the axial dimension is short, the structure is compact, and the pump and motor bearings are reasonably arranged, which can effectively balance the radial and axial loads generated by the operation of the pump, thereby ensuring the smooth operation of the pump. Low vibration and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy sealing ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively prolong the service life of mechanical seal.
4. Easy installation and maintenance, no need to dismantle the pipeline system, just remove the pump joint seat nut to extract all the rotor parts.
5. The series and parallel operation modes of pumps can be adopted according to the requirements of use, that is, the needs of flow and head.
6. The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline arrangement

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

Diesel-driven and electric fire pumps are the two most common power sources for fire pump systems, each with its unique advantages and disadvantages.

Electric fire pumps are typically favored for their efficiency, simplicity, and automatic start capabilities. They are well-suited for facilities with stable and reliable electrical power sources.

On the other hand, diesel-driven fire pumps are highly reliable in areas with inconsistent electrical power or during power outages. They are self-sufficient and can operate independently, making them suitable for critical facilities where constant water supply is imperative.

The choice between diesel and electric fire pumps depends on the facility’s needs, local conditions, and the level of redundancy required.

Flow：250-10000 GPM
Head：3-16 Bar
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants, oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.

The hot water pump is also a hot water pump product optimized on the basis of the ISG and ISW centrifugal pump series, especially the IRG hot water circulating pump has the largest consumption, because the pump adopts the vertical installation of the motor on the upper part, and the connection between the pump and the motor. There is also a short bracket in between, which will not cause the water in the motor to burn out the motor due to the leakage of the mechanical seal, and it can also be designed as a mechanical seal on the basis of the IRG hot water pump. The maximum temperature of high temperature pump products can reach 240 ¡ã C.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

CDL multistage pipeline centrifugal pump is my unit at home and abroad on the basis of excellent pump type combined with user requirements and fire protection standards.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Single-suction pump, also known as end-suction pump, has the advantages of stable operation, simple structure, simple repair and maintenance, convenient installation and small footprint. The single-suction pump has low cost, reasonable price and wide application. The flow rate of the single-suction pump is smaller and the flow rate is equal. The volume of the single-suction pump is smaller, but the axial force is large and the bearing load is large.

When choosing an electric fire pump, consider the following factors:

The required water flow rate and pressure.
The availability and reliability of the power supply.
Compliance with local fire codes and standards.
The reputation and reliability of the manufacturer.
The availability of service and support.

The pumps used in firefighting are divided into different types according to different classification methods. With its fully sealed and non-leakage characteristics, it is used in environmental protection, water treatment, fire-fighting and other departments to pump various liquids. It is a non-leakage, civilized The ideal pumps for workshops and civilized factories are similar to the types of pumps for fire protection systems, but the head and flow are different.
