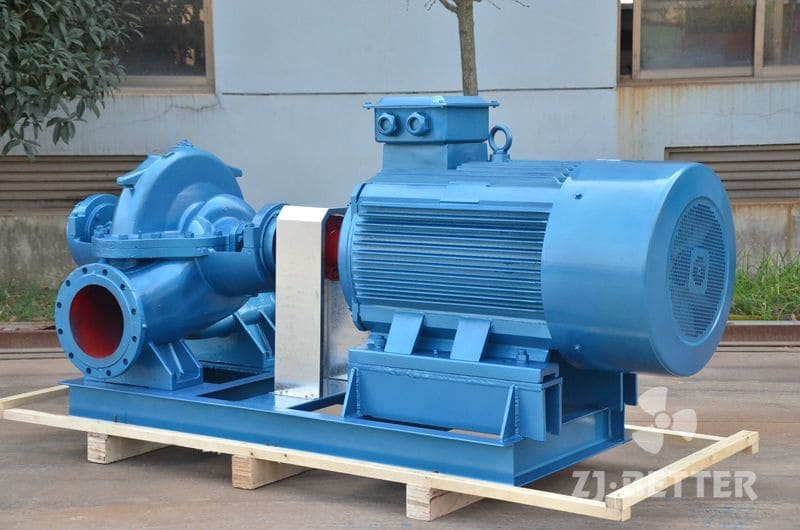

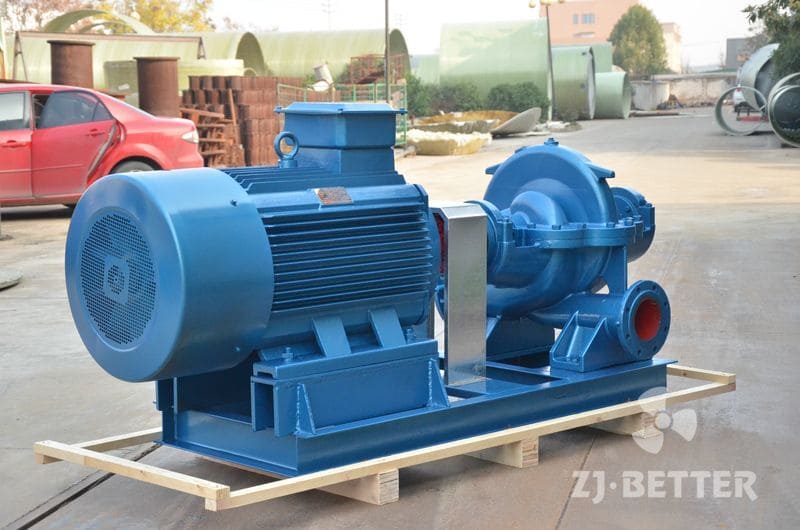

OTS Split Case Pump Factory

Regular maintenance should be performed weekly, monthly, and annually. Weekly inspections typically involve checking the pump house conditions, while monthly and annual checks include running the pump and testing its components.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Single-suction pump, also known as end-suction pump, has the advantages of stable operation, simple structure, simple repair and maintenance, convenient installation and small footprint. The single-suction pump has low cost, reasonable price and wide application. The flow rate of the single-suction pump is smaller and the flow rate is equal. The volume of the single-suction pump is smaller, but the axial force is large and the bearing load is large.

End-suction centrifugal pump is a non-self-priming, single-pole single-suction, pump body and base fixed, its maximum working flow can reach 1200 cubic meters per hour, so this series of pumps fully meet the needs of fire water supply, can improve its extinguishing speed. The mechanical seal of this series adopts the standard wear-resistant mechanical seal, and the bearing adopts the bearing frame, which can locate the bearing, avoid the serial movement of the bearing, and at the same time improve the rigidity of the rotor parts, so this series of pumps use The lifespan will also be longer. At the same time, this series of water pumps also have the functions of stable operation, convenient maintenance and low operating noise, so this series of water pumps is the first of the fire system equipment.

Diesel engine fire pumps, since they replaced general fire pumps and seized the market on a large scale, both customers and R&D personnel have continued to expand. In order to better show their own brands, the relevant product development experts, of course, take great pains to participate in the power of science and technology.​​
According to the technical information of diesel engine fire pump, diesel engine fire pump has been widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is an ideal pump to create civilized workshops and factories without leakage and pollution.

ZX series self-suction pump is an energy saving pump designed with ISO international standard and developed through absorbing and improving the related technical data both at home and abroad and belongs to the self-suction centrifugal pump and uses the mechanical seal of a ceramic ring so as to resist any sandy liquid to go into the sealing face, preventing it from getting scratched. This pump holds the advantages of a compact structure, easy operation, stablemovement, easy maintenance, high efficiency, long duration and strong self-suction capacity and, as no foot valve is needed to be mounted on the pipeline and only a certain amount of leading liquid is required to be filled into the pump before work, improves the work condition while simplifying the pipeline system.
This pump can be equipped with either Y series common motor or YB series explosion-proof one upon the different surroundings of use.

Vertical long axis pump is also called vertical long axis submerged sewage pump, which has the advantages of high efficiency and energy saving, convenient operation, low noise and easy maintenance. It can be used to transport clean water or sewage containing solid particles, such as iron filings, coal powder, sand, etc., and the transport temperature is lower than 80 ¡ãC.

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.

Flow：50-5000 GPM
Head：3-16 Bar (40-232 psi )
Power：11-1000 kw
Frequency：50 or 60 Hz
ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

A Vertical Turbine Fire Pump serves a crucial role in fire protection systems, especially in large commercial and industrial buildings, as well as facilities with high-rise structures. Its purpose is to provide a reliable source of water at adequate pressure and flow rate to fire sprinkler systems, hydrants, and other fire suppression equipment in the event of a fire emergency. Here are the main purposes of a Vertical Turbine Fire Pump:

Pump flow:200≤Q≤5000GPM
Head:70＜H≤150m
Speed:1500-3550 rpm
Frequency50 Hz or 60 Hz

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor.
The motor output shaft directly connect with the pump shaft through a coupling.
The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet &outlet section with stay bolts.
The inlet and outlet are located at the pump bottom at the same plane.
This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Pump type we use is single stage single suction horizontal pump, electric fire pumps are mainly used for the fixed fire hydrant fire system; automatic spraying fire system used by all sorts of organs, projects, high-floor buildings etc. and can be transferred with the clear water without solid grain under 100 or its equivalence, also be used for public-used water providing system for fire, living, production, construction and municipality.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

There are many classification methods for fire pumps, which can be divided into sprinkler pumps, fire hydrant pumps, jockey pumps, etc. according to their uses.

The operation efficiency of the vertical turbine pump is very high if you choose the right model. The premise is to choose the correct model according to the use environment. The vertical electric fire pump is also a long-axis fire pump. The lift, flow and power can meet the needs of most users. Fire pump manufacturers should be responsible for the performance and quality of each type of long-axis fire pump to ensure the normal use of customers.

The vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability.

The pictures show duty pump which is a part of EDJ fire pump set. It’s electric motor pump. The type of pump is horizontal centrifugal pump.

3 sets electric pump product process
It is XA model, and suitable for high flow and pressure
This model is 350gpm 120 psi

Capacity: Q = 5~1800m3/h
Total head: H = 20~234m
Speed: n = 2940~980 r/min

Multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water. The temperature of pumped medium are not more than 110℃.
This pumps are horizontal single-suction centrifugal pump with ring section body. The position of suction port is arranged horizontal and is vertically up.
The position of discharge port is arranged vertically up.
The shaft sealing of these pumps are sealed with soft-packing. At the location of the shaft sealing, there is a renewable sleeve to protect the shaft.
The pumps are directly driven by the motor through the flexible coupling.
The rotating directions of the pumps are clockwise, when viewed pump from the driving end.

Electric vertical turbine pump with high efficiency, energy saving and high efficiency, pump impeller immersed in water, no bottom valve, no irrigation and shaft vacuum, can be directly started, very convenient and reliable.

·UL Standard:
Flow:50-500GPM
Head:6-16 Bar（90-230PSI）
·Non-UL Standard:
Flow：50-5000 GPM
Head：3-16 Bar（40-232 psi）

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

Flow：250-10000 GPM
Head：3-16 Bar
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants, oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Vertical fire pumps are widely used in our lives, such as in water treatment, fire safety and other departments. At the same time, it also has the characteristics of full sealing, no leakage and corrosion resistance, and is widely used in life and production. In transportation It also shows its excellent characteristics in terms of storage and storage, and has become a device that is needed in many places now.
