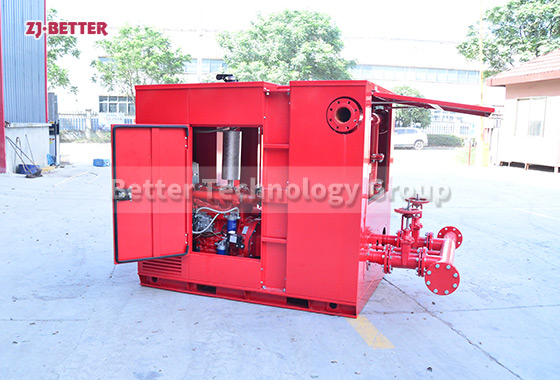

Premium outdoor EDJ Fire Pump set: Engineered for Performance

The double-suction fire pump has the characteristics of high lift and large flow, and is widely used in fire fighting. The impeller of this pump type is actually a combination of two back-to-back impellers, and the water flow from the impellers merges into a volute. The double-suction pump has the following characteristics: it is equivalent to two single-suction impellers of the same diameter working at the same time, and the flow rate can be doubled under the same outer diameter of the impeller; the pump casing is horizontally opened, which is convenient for inspection and maintenance. The inlet and outlet of the suction pump are in the same direction and perpendicular to the pump shaft, which is conducive to the arrangement and installation of the pump and the inlet and outlet pipes; the impeller structure of the double suction pump is symmetrical, there is no axial force, and the operation is relatively stable.

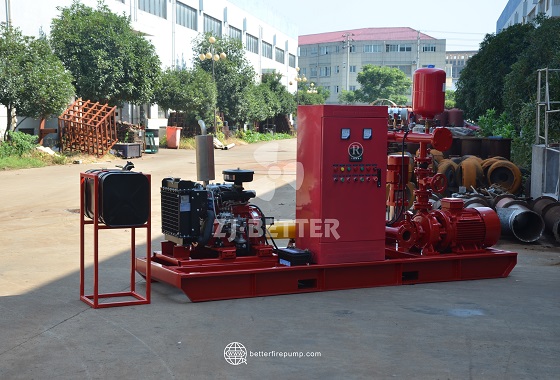

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

750gpm fire fighting package set

120≤ Q≤1000GPM
H＜150m
The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The fire-fighting dual-power water supply equipment is suitable for all kinds of emergency backup pumps. When the mains is normal, the electric pump set is put into work. When the power supply fails and the electric fire pump cannot be put into use normally, the diesel engine fire pump set can be automatically put into operation to ensure firefighting. Fire extinguishing is carried out normally, and the diesel engine fire pump set is equipped with various automatic functions to meet the requirements of national standards, ensuring that the equipment is in a normal standby state for a long time, and can be put into fire fighting work at any time.

Fire pumps are an important part of the fire protection system, especially in high rise structures.In basic 400 – 500 or advanced water situations, fire pumps are important to distribute water into water lines and sprinkler systems where the water pressure of the fire fighting equipment cannot reach. Especially in low-rise structures, fire pumps are important for fire control.
Stylistically, fire protection is a dangerous activity, but without a well-designed and professionally installed system and pump, it certainly becomes more dangerous and commercial assets and lives are less at risk.

High Pressure Fire pump set for 25m3/h, 270m head, and this is two multistage pump with one outdoor type controller

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump system is made of Electric Pump + Diesel Engine Pump+Jockey Pump+Accessories

Operation: 1 Duty(electric pump ) + 1 stand by(diesel engine pump ) + 1 Jockey fire pump

Capacity: 100GPM, 150GPM, 200GPM, 300GPM, 400GPM, 500GPM, 750GPM, 1000GPM, 1250GPM…GPM with Pressure 4Bar, 5bar, 6Bar, 10Bar, 15Bar… Bar.

Horizontal and vertical fire pumps differ in their physical orientation, and the choice between them depends on the available space and installation requirements. Horizontal fire pumps are positioned parallel to the ground and are commonly used in facilities with ample floor space. Vertical fire pumps, on the other hand, are designed to be installed in a space-saving, vertical orientation. This makes them suitable for facilities with limited floor space, such as high-rise buildings.

Vertical pumps are often used in skyscrapers, where space is at a premium. Both types of pumps are equally effective, and the choice between them is typically influenced by the layout and structural constraints of the building.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Diesel engine fire pump sets are mainly suitable for fire water supply systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply systems, and can be used in fire protection and living shared water supply systems. It can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions .

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.

Fire pumps can be integrated into smart building systems through advanced controllers and sensors that allow for remote monitoring and control. These systems can track the performance of the fire pump, alert maintenance teams to potential issues, and even adjust pump operation in real time to optimize efficiency and response during emergencies.

Diesel engine fire pumps can be divided into self-priming, centrifugal and double-suction types. Self-priming pumps are widely used in urban flood control and emergency rescue. Centrifugal pumps are divided into single-stage centrifugal pumps and multistage centrifugal pumps.

The fire pump is the necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is that the electric fire pump needs power system supply. The electric diesel engine fire pump can be started at any time to fill the position of the original electric fire pump.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

The EDJ fire pump set is composed of a fire pump, a dual-shaft extension motor and a diesel engine. One end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump. One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double-shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through the action driving circuit. With dual-power fire pump, there is no need to configure a second fire pump, reducing floor space and manufacturing costs.

1. Knowledge of Fire Pump Design and Components: Fire pumps are complex pieces of machinery, and technicians must be familiar with its components, including the electric motor, reservoir, impeller, and check valves.

2. Electrical Troubleshooting: Electric motor control centers, circuit breakers, and other electrical components must be understood by technicians in order to properly maintain fire pumps.

3. Instructions for Proper Maintenance: Technicians must be able to read and understand manufacturer’s instructions for inspection and required maintenance, such as oil and filter changes.

4. Record Keeping: Accurate records of maintenance must be kept in order to ensure that fire pumps are in peak working condition.

5. Diagnose and Repair of Pump Malfunctions: Technicians must have the ability to diagnose and fix common pump problems such as bearing wear, corrosion, and bearing failure.

6. Troubleshoot Accessories and Peripherals: Technicians should be familiar with fire pump accessories such as pressure switches, gauges, and houseline piping.

7. Handle Power Sources: Technicians must have the knowledge to recognize safe levels of power sources, such as AC or DC, to ensure fire pump operations.

8. Pressure Testing: Technicians must understand and follow safety procedures when pressure testing fire pumps and their related houselines.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

Yes, backup power sources are essential for fire pumps, especially in the event of a power outage. Diesel-powered pumps have built-in redundancy, while electric pumps may need backup generators or uninterruptible power supply (UPS) systems to ensure continuous operation.

Fire pumps work by drawing water from a water source (such as a dedicated water tank or municipal supply) and pressurizing it before delivering it to the fire sprinkler system or hose lines.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Diesel engine fire pump product overview: The fire pump used in the diesel engine fire pump complete set can be the IS series single-stage type and D-type series segment multi-stage type produced by our company. The diesel water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.
