Pressurized And Jockey Fire Pump

Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The DJ Fire pump set is made of Diesel fire pump+Jockey pump.
Application Scope：Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

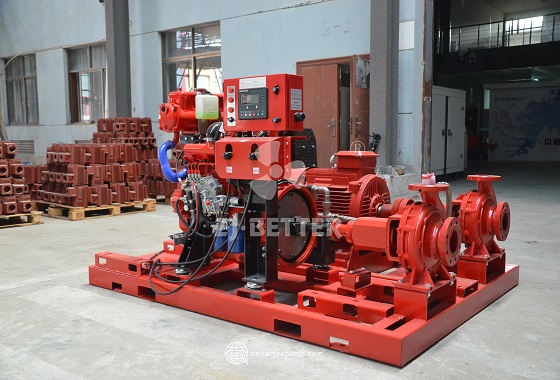

The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

Eliminating fire pump faults promptly is crucial to ensure the fire pump’s reliability and effectiveness during emergency situations. Here are some measures to address fire pump faults effectively:

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

Fire Pump Set Components :
Electric pump:kinds of end suction pump, split case pump, multistage pump. made of cast iron, stainless steel. Impeller can be bronze.
Diesel pump:Flow is the same with electric pump. It connects the pump set with High elastic coupling or universal joint. It also includes water tank, oil tank, fans, control screen etc.
Jockey pump:horizontal or vertical, small flow, head is higher than electric or diesel pump
Control panel:control the pumps automatically with overload, overcurrent protection

Packaging and delivery

Packaging details: standard export wooden cases or as required delivery detail: within 30 days

Specification

Compact structure, stable performance
Install and maintain conveniently
Mechanical or packing seal

Application

Use in fire system water supply, and also suitable for water supply plant, irrigation, drainage pumping plant, electric plant, air conditioning water supply, industry water supply, fire system, shipping industry, oil refining system, mining and other water supplying situations.

As the name implies, the fire pump is a pump used in fire protection. The fire pump is an imported product. It is divided into different types according to different classification methods. It is fully sealed, leak-free, and corrosion-resistant. It is widely used in environmental protection, water treatment, fire protection, etc. The department is used to pump various liquids, and it is an ideal pump and fire protection system for creating a leak-free, pollution-free civilized workshop and civilized factory. The pump types are similar, but the head and flow are different.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The size of a fire pump is determined through hydraulic calculations based on the specific fire protection requirements of the building. Factors considered include the building’s height, area, occupancy type, and the required flow rate and pressure to meet fire protection standards.

Three start-up functions for diesel engines:
1. Manual start function: manual and automatic interlocking can be completed through the transfer switch, and the manual start function can be realized:

2. Automatic manual function: allow to start three times. If the startup fails for three times, it will issue a “startup failure alarm” and automatically exit the startup state. After a successful startup, the time from startup to rated load is 5-10-15S (depending on the unit capacity);

3. Emergency manual direct start function: When the automatic control device fails, the emergency manual direct start function can be realized.

EDJ fire pump set is suitable for any emergency firefighting occasions, such as: firefighting water supply and emergency water supply in warehouses, docks, airports, petrochemicals and other occasions. This product can run in the case of power failure, the product has strong stability and is more reliable, and the jockey pump and pressure vessel can save some electricity and save costs.

EDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

DJ fire pump is composed of diesel engine pump + jockey pump, which can be operated in any fire-fighting occasion,diesel engine fire pumps can work without electricity and are widely used.
Our company has professional technicians and sales staff, who can customize products according to their own needs.

Now the general diesel engine fire pump set is powered by imported or domestic Cummins, Wuxi Power Engine Factory and other diesel engines produced by large-scale key enterprises in the internal combustion engine industry at home and abroad, through highly elastic couplings or diaphragm couplings produced by professional manufacturers. The engine is directly connected with the water pump, and the power of the diesel engine can reach 880KW. It can be equipped with water pumps of different lifts and flow rates for customers to choose and use according to different needs.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ （Diesel Pump:IS, Electric Pump:ISW）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

This fire pump set uses Cummins diesel engine and ISO pump. The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

As the name suggests, fire pumps are used in fire protection. They are divided into different types according to different classification methods. They are fully sealed and leak-free. They are used in environmental protection, water treatment, fire protection and other departments to pump various liquids. They are created The ideal pumps for non-leakage, civilized workshops and civilized factories are similar to the pumps for fire protection systems, but the head and flow are different.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

While the primary purpose of fire pumps is firefighting, some systems may incorporate them for other water supply needs, such as industrial processes or water distribution. However, their design and functionality are optimized for firefighting applications.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

The parts that may cause friction when the pump rotates are all made of wear-resistant, corrosion-resistant and high-anti-seize material combinations to ensure reliable operation, reduce noise, and avoid rust water, blocking spray and other fire-fighting devices, extending service life and after shutdown. Rust bite phenomenon.

Best practices for maintaining diesel fire pumps include following the manufacturer’s recommended maintenance schedule, conducting regular inspections of critical components such as belts, hoses, seals, and bearings, performing routine lubrication and fluid checks, and keeping detailed records of maintenance activities and any repairs or replacements performed. Additionally, it’s essential to address any issues promptly and to ensure that all maintenance personnel are adequately trained and equipped to perform their duties safely and effectively.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The application of electric fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

The diesel engine fire pump set has the characteristics of good starting performance, strong load capacity, compact and effective structure, convenient maintenance, simple and reliable use, etc. The generator set has maintenance functions such as speed limit, low oil level, repeated failed starts, high temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm system or the centralized control cabinet of fire-fighting facilities to establish a real-time monitoring function.
