Reliable 265GPM 8Bar EDJ Fire Pump Sets Industrial Use

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

CDL stainless steel vertical multistage pump has the remarkable characteristics of small size, light weight, high efficiency, energy saving, low vibration and noise, smooth operation, long service life, vertical installation, small footprint, light weight and beautiful appearance.

Best practices for maintaining diesel fire pumps include following the manufacturer’s recommended maintenance schedule, conducting regular inspections of critical components such as belts, hoses, seals, and bearings, performing routine lubrication and fluid checks, and keeping detailed records of maintenance activities and any repairs or replacements performed. Additionally, it’s essential to address any issues promptly and to ensure that all maintenance personnel are adequately trained and equipped to perform their duties safely and effectively.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

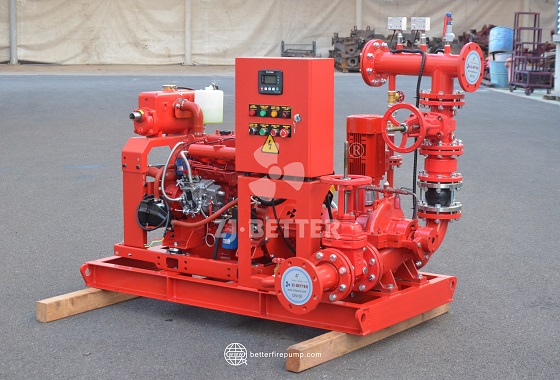

The EDJ model is basically a combination of Electric, Deisel and Jockey pumps. They mainly consist of an electric motor driven end suction pump and a backup pump of a diesel engine driven end suction pump. It is also combined with a jockey pump for maintenance to form a complete skid.
The complete EDJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

1.Flow：1000 GPM
2.Head：14bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

Fire pumps can be powered by various sources, including electricity, diesel engines, and, in some cases, natural gas. The selection of a power source depends on factors such as reliability, availability, and the specific requirements of the facility.

Electric fire pumps are commonly used in urban areas with a stable power supply. They are efficient and can start automatically in response to a fire alarm signal. In contrast, diesel-powered fire pumps are reliable in areas with inconsistent power availability, as they can function independently. The choice of power source should align with the facility’s operational conditions and the need for uninterrupted fire protection.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is really high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use Leading the pipeline tools.

1. The fire pump should be capable of supplying the rated flow and pressure for a duration of two hours, at a rate of 150% of the rated capacity, and should not be affected by prolonged operation.

2. The fire pump should be able to start up automatically by a power source when activated.

3. All switches, gauges, alarms, controllers and monitoring systems should be certified to UL and FM standards.

4. The fire pump should be sized to meet the NFPA 20 standard for fire pump design.

5. The fire pump should be able to handle the maximum system flow and pressure required for the building.

6. The fire pump driver should match the requirements of the pump and meet NFPA 20 requirements for fire pump drivers.

7. The fire pump should be installed according to NFPA 20 standards for fire pump installation.

8. The fire pump should be tested and inspected in accordance with NFPA 25 standards for testing and inspection of fire pumps.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Diesel engine fire pumps are usually used as a backup facility, and will only start automatically when the electric water pump fails or the power is cut off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of pump starting should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

This equipment is a customized EEJ fire pump set which can meet 500GPM@80m. The duty pump and standby pump are XA series pump.

EDJ fire pump small flow capacity: 50gpm, pressure: 5bar

– Marine-Grade Materials: Using materials that can withstand the corrosive marine environment.
– Integration with Ship Safety Systems: Coordinating with onboard safety systems for comprehensive fire protection.
– High Capacity Systems: Providing high-capacity systems to handle fires on large ships and offshore platforms.
– Compliance with Maritime Safety Standards: Adhering to fire safety regulations specific to the shipping and maritime industries.

Because of the width required by our customer, this fire pump set is designed in in-line. Capacity and total head are 34m³/h@8bar.

The fire pump group is composed of electric pump + diesel pump + jockey pump. The conventional electric pump is the main pump, and the diesel pump is the backup pump. The jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or When the mains is cut off, the control cabinet will receive the signal from the electric contact pressure gauge and start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal firefighting work.

1.Flow：1000 GPM
2.Head： 14 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

outdoor fire pump set which is no need to build the fire pump house, it can put outdoor directly.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.​​

The EDJ fire pump set is tested in the Better factory, and our company’s fire pump set needs to be tested after the assembly is completed to ensure the quality. EDJ fire pump sets are widely used in large public places, factories, firefighting and other occasions.

Diesel engine with mechanical emergency fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, and convenient maintenance. Where batteries are allowed to be used, the unit can be installed and used with a battery starting device. The diesel engine is vertical, multi-cylinder, four-stroke, water-cooled. It can also be matched according to the requirements of air cooling.

The main reason to have a fire pump is to work with the fire protection system in case the water supply does not have sufficient pressure. High structures or large warehouses that carry large amounts of water require the help of a fire pump. It increases the pressure of the water flowing into the fire suppression system, allowing the system to release the maximum amount of water while extinguishing the fire.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

• Automatic switching between three pumps, when the electric fire pump fails, the diesel engine backup pump will automatically start
• Works even with power outages
• Adopt high-quality NSK bearing, wear-resistant mechanical seal or packing seal
• Product parameters available upon request

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
