Skid mounted Fire Pump

Containerized fire pump system which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system

The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. This series of fire pump sets has a wide range of head and flow, which can fully meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Instructions for use:
Altitude≤1000m;
Ambient temperature: +5℃～+40℃;
Relative humidity: <= 90%. Scope of application of fire pump set: Equipment suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

Fire pumps for firefighting are mainly used to deliver water to pipelines, or to drain water in cities and industries, and to deliver water to high-rise buildings. This is similar to the need to deliver water due to some cold and hot cycles in long-distance situations. What kind of equipment is used.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The EJ fire pump set consists of an electric pump and a jockey pump. The electric pump adopts an XA pump, and the jockey pump adopts a CDL pump. The flow rate of this pump is 500gpm and the lift is 130psi. It is manufactured in strict accordance with customer requirements. It is cast iron, the impeller of the electric pump is made of cast iron, the pressure jockey pump is made of stainless steel, and the seals of the pumps are all mechanical seals, which will not leak.

Electric fire pump: It is an important part of the fire water supply system. Divided into ordinary type and foam type. The ordinary type is used for general fire water supply; the foam type is equipped with an adjustable proportion mixer and a cam pump, which can deliver the mixed liquid to various foam launching devices to extinguish various oil fires. The electric fire pump consists of two parts, the motor and the pump. The pump and the motor are coaxial. The pump structure includes pump body, rotor, pump cover, mechanical seal and other components.

Dual power fire pump has high efficiency, remarkable energy-saving effect, compact structure, low noise, small floor area, saving investment and energy, and has obtained UL certification.

The national standard name of the diesel engine fire pump is “engineering diesel engine fire pump group”, and the national standard model is XBCL/Q where L is the lift value and Q is the flow value. XBC diesel engine fire pump set is the latest according to the national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Ability to provide a steady and reliable flow of water: Fire pumps are designed to provide a steady and reliable flow of water to the fire suppression system. This ensures that the fire is extinguished quickly and without any damage to the property.

2. High-Pressure Output: Fire pumps can provide a high-pressure output to ensure that the water is able to reach further distances and at higher pressures than would be achievable by a standard water system. This is important in controlling and extinguishing fires, as it allows the water to reach all areas of the fire.

3. Emergency Operation: Fire pumps are designed to be able to operate in the event of a power outage. This ensures that the fire suppression system can still be operational in the event of a power failure. This is especially important in commercial buildings and other areas where power outages can occur.

4. Automatic Activation: Fire pumps are designed to automatically activate in the event of a fire. This ensures that the fire suppression system can be activated quickly and without any manual intervention. This is especially important in the event of a large fire, as it ensures that the system is already in operation before the fire department arrives.

5. Low Maintenance: Fire pumps are designed to be low maintenance, requiring only regular inspections and maintenance to ensure that they are working correctly. This ensures that the fire suppression system is always ready for use and that it can be relied upon in the event of a fire.

With the continuous development of society, people have higher requirements for the quality of life, and the safety of diesel engine fire pumps is more important. All places need to be equipped with fire-fighting facilities, and fire pumps are water intake equipment for fire-fighting facilities. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps need power system supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

The lifespan of a fire pump depends on factors such as usage, maintenance, and environmental conditions. Regular inspections and proper maintenance can extend the lifespan of a fire pump, and replacement may be necessary if it no longer meets safety standards.

Best practices for maintaining diesel fire pumps include following the manufacturer’s recommended maintenance schedule, conducting regular inspections of critical components such as belts, hoses, seals, and bearings, performing routine lubrication and fluid checks, and keeping detailed records of maintenance activities and any repairs or replacements performed. Additionally, it’s essential to address any issues promptly and to ensure that all maintenance personnel are adequately trained and equipped to perform their duties safely and effectively.

With its full seal, no leakage, and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is an ideal pump for building non-leakage, non-pollution civilized workshops and civilized factories.

Firefighting pumps can be powered by various sources, including gasoline engines, diesel engines, electric motors, and even manual operation in some cases. The choice of power source depends on factors such as portability, availability of fuel, and the intended application.

The motor of this fire pump set is directly connected to the fire pump, which simplifies the intermediate transmission structure and enhances the stability of operation. The equipment occupies a small area, saves costs, and is a cost-effective fire pump set.

1. The performance of the fire pump should meet the flow and pressure requirements of the fire water supply system.
2. The power of the driver equipped with the fire pump should meet the requirements of the power required for operation at any point on the performance curve of the selected pump’s flow and lift.
3. When a motor-driven fire pump is used, a dry-installed fire pump with the motor should be selected.
4. The fire pump should be installed dry, and the pump should be placed outside the pool, and the submersible pump cannot be directly placed in the water for water absorption.

The motor of this EJ fire pump set is directly connected to the pump body, which saves costs. It adopts ISW pump, and its performance parameters and technical indicators meet relevant standards. It has the characteristics of high efficiency and reasonable structure. It is suitable for industrial and urban water supply and drainage, high-rise building increase Pressurized water supply, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other hot and cold water circulation pressurization and equipment.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi

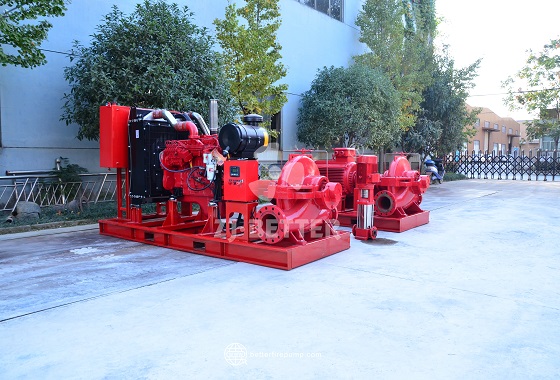

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The diesel engine fire pump set has the characteristics of high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly fails, the diesel engine emergency water supply pump set will automatically start to supplement the pressure of the pipe network.

This equipment is an EEJ fire pump set customized by a Greek customer with a frequency of 50Hz. The electric pump adopts an XA pump.This pump combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model.

All places need to be equipped with fire-fighting facilities, and fire pumps are the water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power systems. supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

1. Electric pump, can use multistage pump, material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

Jockey material casing: cast iron ,shaft and impeller SS304

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

In cold climates, fire pumps must be designed and installed to prevent freezing and ensure reliable operation in low temperatures. This includes using heated enclosures or pump rooms to keep the pumps and associated piping above freezing temperatures. Insulation and heat tracing can be applied to pipes to prevent water from freezing, particularly for outdoor or exposed piping. Additionally, anti-freeze solutions may be used in sprinkler systems to protect against freezing. Fire pumps in cold climates must also be tested and maintained regularly to ensure that all components, including heaters and insulation, are functioning correctly. Special considerations are also given to the type of fire pump selected, with diesel-powered pumps often preferred over electric ones in areas where power outages during winter storms are common.

In order to match the service cycle of the fire pump, the inspection of the diesel engine and the fire pump should be regularly checked, and the parts to be replaced or repaired should be adjusted and corrected in a timely manner. We need to check the fuel tank reserves and oil quality of the diesel engine fire pump every day; the usage of the battery; the cooling system, etc., the pump shaft, impeller, bearing, and the wear of the water pipe and filter screen of the water pump. (Diesel engines of different brands may be different, and should be checked and maintained according to the specific model and structure of the diesel engine).

Fire sprinkler systems are hydraulically calculated prior to installation to determine adequate water flow and in order to ensure the system can reliably suppress a fire until fire crews arrive. When it’s determined inadequate flow is available from a municipal supply for the system to operate effectively, a fire pump is installed. The fire pump operates when the sprinkler system pressure drops below a certain threshold, due to the operation of sprinkler heads. The fire pump draws additional water from the municipal water supply or on site storage tanks, to maintain the sprinkler systems required operating pressure. Fire pumps are often required in high rise construction and large area buildings, due to the size of piping systems and pressure loss.

The large-scale EDJ electric diesel dual-drive fire pump is a fire-fighting water supply equipment designed and manufactured by Beide Technology Co., Ltd. according to the <> standard, and has obtained 3CF certification. There are many models of Baide dual-power fire pumps, which can be customized according to needs.
Large-scale EDJ electric diesel dual-drive fire pump Pumps for various fire hydrants, sprinkler fire main pumps; suitable for various fire pressurization and voltage stabilization pumps; various villas, residential areas and other fire protection systems; industrial and civil building fire protection System; suitable for various oil depots, oil product loading and unloading terminals, logistics parks and other places with high fire protection level requirements.
