Sleek and Robust: EDJ Firefighting Pump set Excellence

Diesel engine fire pump is also called “engineering diesel engine fire pump group”. Diesel engine fire pump group has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use and so on. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. It can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Experience unmatched performance and reliability with the EDJ Fire Pump.
Designed to meet the highest standards of fire protection, our pump offers exceptional functionality and dependability.
Whether for residential, commercial, or industrial applications, the EDJ Fire Pump provides the peace of mind you need for effective fire prevention and suppression. Trust in our advanced technology and ensure the safety of your property with the EDJ Fire Pump.

After several years of R&D testing and certification, Beide Technology Group Co., Ltd. has obtained FM/UL certification for its existing fire pumps after obtaining domestic 3CF certification, and joined the NFPA Fire Engineers Association. Beide Technology Group Co., Ltd. has been committed to providing human beings with more reliable, more energy-saving and safer pump products.

The electric fire pump set is a medium and low pressure fire pump product developed by our company in strict accordance with the technical requirements of the national standard GB6245-2006 (fire pump) and the National Fire Protection Association NFPA20 (installation of centrifugal fire pumps). The product has passed the type inspection of the National Fixed Fire Extinguishing System and Refractory Component Quality Inspection Center.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

• Automatic switching between three pumps, when the electric fire pump fails, the diesel engine backup pump will automatically start
• Works even with power outages
• Adopt high-quality NSK bearing, wear-resistant mechanical seal or packing seal
• Product parameters available upon request

EDJ-OTS is a powerful tool designed specifically for firefighting emergencies, aiming to deliver exceptional performance and reliability. It is the ideal choice for fire departments and industrial facilities, ensuring quick and efficient response to fires when it matters most. Whether you are a member of a fire department or responsible for industrial facility safety management, EDJ-OTS is your ultimate choice for a fire pump. Choose EDJ-OTS and safeguard your safety with unparalleled firefighting capabilities.

Factors include the building size, height, occupancy type, local fire codes, water supply source, and the required water flow and pressure. A thorough hydraulic analysis is typically performed to determine the appropriate pump size and type.

EEJ fire pump set is composed of two electric pumps and one jockey pump. The fire pump adopts ISW pump, which has the characteristics of convenient installation and convenient maintenance, and is widely used in any fire emergency situation.

Electric horizontal multistage pump use for main pump, and standby pump also same, but use diesel engine driven.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

Fire pump professional production manufacturers, complete products, manufacturers direct sales, after-sales worry, pump quality is good, durable products.

Flow: 14-2700 GPM
Head: 12-80 meter
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Flow: 2500gpm
Head: 10bar
This pump uses horizontal split case pump.
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

750gpm@90m fire fighting package set

120≤ Q≤1000GPM
H＜150m
The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The lifespan of a fire pump depends on factors such as usage, maintenance, and environmental conditions. Regular inspections and proper maintenance can extend the lifespan of a fire pump, and replacement may be necessary if it no longer meets safety standards.

1. Electric pump, can use multistage pump, material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

Jockey material casing: cast iron ,shaft and impeller SS304

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Controllers ready to dispatch
This is the controller for jockey pump, electric pump and fire pump set

Fire-fighting package set water supply equipment manufactured by is referred to as
“dual-power”, “Fire Pump Set” hereinafter as “dual-power”, “Fixed Fire Pump Installation
Standard” and “Standard for the Fixed Fire Pump Installation Standard” of the
American Fire Protection Association in accordance with China Standard GB27898.5-2011
Fixed Fire-fighting Water Supply Equipment Part 5 “Fire Dual-power Installation of
Stationary Pumps for Fire Protection -2016 design and manufacture. Comply with the
latest Chinese national standard CCCF certification requirements and obtain the
certificate. Dual power is one of the reliable products in fire fighting water supply equipment.

Ignite a new level of fire protection with the Outdoor Fire Pump Set. This versatile and reliable pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. It is the ideal pump and fire protection system to create no leakage, no pollution civilized workshop and civilized factory.

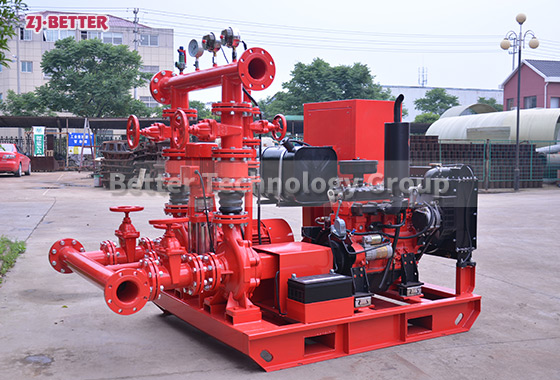

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

As the name implies, fire pumps are used in firefighting. They are divided into different types according to different classification methods. They are widely used in environmental protection, water treatment, firefighting and other departments to pump various liquids due to their fully sealed, leak-free, and corrosion-resistant characteristics. , It is the ideal pump for creating leak-free, pollution-free civilized workshops and civilized factories.

Safety measures include regular training for personnel, ensuring proper ventilation in pump rooms, and following manufacturer guidelines for maintenance and operation.
