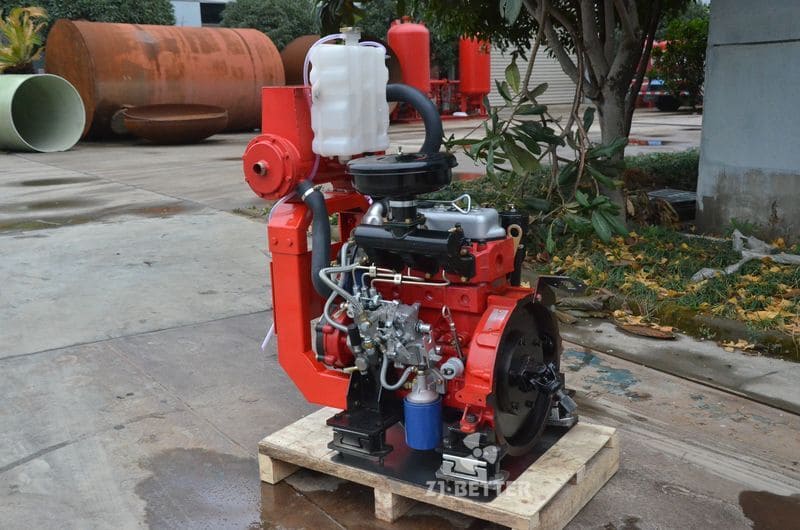

Small Diesel Engine Fire Pump

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

Flow：250-10000 GPM
Head： 3-16 Bar
Power：11-1000 kw
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

XBC series fire pump set is a new type of fire fighting equipment (hereinafter referred to as equipment) developed by the company in strict accordance with the national standard GB6245 “performance requirements and test methods for fire pumps” and the American Fire Protection Association standard NEPA20 “installation of centrifugal fire pumps”. , This series of equipment can be divided into three sub-series XBC-IS, XBC-S, XBC-D according to the fire pump (single-stage single-suction type, single-stage double-suction type, segmental multi-stage type) used. It has a wide range of pressure and flow, and its application can meet almost all kinds of occasions required for fire protection. The diesel engines equipped with the equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is an advanced and reliable fire fighting equipment.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Diesel engine fire pump set is a new type of fire-fighting equipment developed by our company in strict accordance with the national standard GB6245-98 “Fire Pump Performance Requirements and Test Methods” and the American Fire Protection Association standard NEPA20 “Installation of Centrifugal Fire Pumps” and other standards (hereinafter referred to as equipment ), this series of equipment can be divided into three sub-series, XBC-IS, XBC-S, XBC-D, etc. The equipment has a wide range of pressure and flow, and its application can almost meet various occasions required by fire protection.

An FDC is an external connection point that allows the fire department to supplement the water supply to the fire protection system using their hoses and equipment if needed.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

Not all buildings require fire pumps. Their necessity depends on various factors, including the building’s size, occupancy type, and the available municipal water supply pressure. Local building codes and regulations dictate when fire pumps are required.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

XBC series diesel engine fire pump is a new type of fire fighting equipment developed on the basis of supporting fire pumps (single-stage single-suction type, single-stage double-suction type, segmented multi-stage type), and can be divided into several series. The equipment has a wide pressure and temperature range and can be used in almost every occasion required for fire protection. The diesel engine matched with this equipment is an excellent domestic or imported product, which has the characteristics of good starting performance, strong overload capacity and compact structure. It is easy to maintain and use and has a high degree of automation.

XBD, XBC electric fire pump units and diesel engine fire pump units meet the national standards GB6245-1998 “Fire Pump Performance Requirements and Test Methods”, GB/T1147-1987 “General Technical Conditions for Internal Combustion Engines”. They can be equipped with ISG, IS, S, D and other pump types respectively, forming various structural types such as pipeline type, vertical multi-stage, horizontal single-stage cantilever type, horizontal split, horizontal multi-stage, etc., to be suitable for various working conditions Use under different conditions (different power, different speed, different materials, etc.).

XBD and XBC units are mainly suitable for fire protection engineering of steel, metallurgy, electric power, petroleum, chemical industry, construction, port and other operations, emergency water supply for blast furnace, continuous casting, converter and other accidents, power plant emergency water supply for power failure, nuclear reactor safety protection cooling water supply, And other water supply projects that require automatic control.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

Diesel engine fire pump is a good water supply equipment, which is widely used in both ordinary water supply and fire water supply. As long as the appropriate model is selected to match the application, and the inspection and maintenance work is done well, the diesel engine fire pump will basically not fail. The diesel engine fire pump is highly automated, and can be equipped with different operating systems according to the needs of use. It has strong overload capacity, convenient maintenance and good starting characteristics. Since there are so many advantages in use, the daily inspection and maintenance work should be more meticulous. The daily maintenance of the diesel engine fire pump must check the fuel tank, battery, transmission connecting plate, connecting screws, check the three leaks (water, oil, gas) – check the sealing surface of the oil pipe and the water pipe joint, etc.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The Diesel Single-stage Single-suction Fire Pump is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the Diesel Single-stage Single-suction Fire Pump delivers dependable performance to safeguard lives and properties from fire risks.

The diesel engine irrigation pump is easy to move. According to customers’ requirements, it can be combined freely to realize the fuction of small flow fire pump set.

Diesel engine fire pumps have been widely used in fire diversion as fixed fire fighting equipment, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply. , fire pump, connecting device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, trailer-type mobile water pump stations, etc., which can be used together with electric fire pumps.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the centralized control cabinet of the fire protection system to realize the function of remote monitoring.

Flow：80-2700 GPM
Head：10-24 Bar
XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

The Diesel Engine with Mixed Flow Pump is an advanced firefighting and rescue equipment. This combination consists of a robust diesel engine and an efficient mixed flow pump, offering advantages such as independent power supply, high performance, agile mobility, versatility, and cost-effectiveness. During sudden fire emergencies, the Diesel Engine with Mixed Flow Pump operates autonomously, requiring no external power source, and rapidly provides a substantial water supply to minimize fire damage. Its exceptional mobility allows firefighters to swiftly transition and address ever-changing disaster scenarios. It is suitable for various environments, especially in areas with unstable power supply, where it maintains its peak efficiency. Moreover, this equipment is cost-effective, easy to maintain, and offers long-lasting firefighting assurance.

Multistage pumps are designed to transfer cleaning liquids through multiple impellers in series instead of one, and are typically used in installations that require high lift. High pressure applications can be achieved by mounting the impellers on the same shaft of the multistage pump or on opposite shafts parallel to each other for higher flow rates. They are mainly used for energy saving and different range of flow/head situations.

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

Diesel engine fire pumps are used for fire-fighting water supply in large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel and combined, with wide flow and pressure ranges. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

Flow：80-2700 GPM
Head：10-24 Bar
Diesel Engine Multistage Fire Pump is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, Diesel Engine Multistage Fire Pump ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

       The operation of the Fire Pump Set

     Operation of diesel engine fire pump

     Diesel engine fire pump operation:Start, Stop and Run of the Equipment

Start: first make sure of the correct rotatingdirection of the fire fighting pump and the inlet valve is as N.O and outletvalve N.C. Before the pipe network starts with no water. After no error is found, start the fire-fighting pump and, when the pump gets stable run, gradually open the outlet valve and adjust it to the work condition point for the pump to run. The outlet valve is N.O. when the network is filled with water at usual.
Run: when the pump gets a normal run, check the shaft seal and the bearing to see how it works. Theleakage for themechanical seal should not be over 3 drops/min and for the stuffing seal should be dot drop. The bearing’s temperature should not be over 75℃ and its temperature rise not over 35℃ Stop running for a checking case of an abnormal sound during the pump’s run.
To stop, first close the outlet valve, then the diesel engine.

ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.
In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Standard:
       UL    Flow：50-2000 GPM    Head： 80-250 PSI
       NON-UL   Flow：50-5000GPM   Head： 40-250 PSI
