Standard EDJ Fire Pump Set

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Flow: 750GPM

Head:3-20Bar

Speed: 740-2900r/min

Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw

There are many applications for fire pumps. Different motors are selected according to the flow rate and head size. The commonly used motors include electric motors and diesel engines, and domestic and foreign brands can match the application. The fire pump can choose vertical or horizontal structure according to the pipeline requirements, and the head size is also different. Finding a professional pump factory or company can reduce the probability of wrong selection, and at the same time take into account the on-site installation requirements and pipeline design.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

The lifespan of a fire pump motor or engine varies based on factors like usage, maintenance, and the quality of the equipment. However, they are typically designed to be durable and long-lasting.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The minimum fire rated pressure of ED small fire fighting package set water supply equipment is 3 bar and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
Motor: Three-phase asynchronous squirrel-cage motor independently developed and manufactured by our company, which can be controlled in production time and greatly shorten the whole set production time.
Diesel Engine: According to the different parameters of customers, we will choose diesel engines with high cost performance ratio. The main brands are QuanChai, Weichai, ShangChai, FAWDE, Cummins, etc.
Electric Pumps: Electric pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Diesel Pumps: Diesel pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Electronic Components: The main electric components is CHNT, if Schneider or other brand electrical are need, should mention it before place the order.
Safety Valve plays a safety protection role in the system. When the system pressure exceeds the prescribed value, the safety valve opens, and a part of the gas/fluid in the system is discharged into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.
Pressure Tank: Water is a non-compressible medium. Generally speaking, the pressure drop of fire-fighting pipe network is normal. However, the pressure drop is very slow, the total loss of water in the pipe network isnot large, and the frequent change of pressure in the pipe network leads to frequent start-up and shutdown of pumps. Especially when the power of equipment is high, it will cause great impact on pressure sensors, relaysand motors, thus affecting the performance and life whole equipment. Therefore, it is necessary to choose the right volume of the pressure tank.

The diesel engine fire pump can deliver clean water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of living and production water supply conditions are taken into account. The products can be used not only in independent fire-fighting water supply systems, but also in fire-fighting and living shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Assess the water supply: Ensure availability and capacity of your building’s water source.
Identify the fire protection system needs: Consider sprinkler systems, standpipes, or hydrants.
Understand NFPA 20 standards: Choose UL-listed or FM-approved pumps for compliance.
Select the appropriate pump type: Electric, diesel, or jockey pump depending on power reliability and application.
Consider the building size and use: High-rises or industrial facilities require higher-capacity pumps.

outdoor fire pump set which is no need to build the fire pump house, it can put outdoor directly.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

100gpm 8bar small fire pump set test for Rwanda client

This is the three times client place order for us

3 set 100gpm 8bar EDJ fire pump set

250gpm bar EDJ fire pump

100gpm 10bar EDJ fire pump set

Mechanical seals are commonly used on fire pumps to ensure reliable and long-lasting operation. These seals are designed to create a tight, reliable seal between the pump shafts, and the fire pump’s motor. Mechanical seals are typically composed of stationary and rotating components that move against each other with minimal friction, to form a mechanical seal that can withstand the stresses of the fire pump’s operation. In addition to preventing leaks, mechanical seals can help improve pump efficiency, reduce wear and tear on motor components, and increase the life of the fire pump.

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

There is a combination equipment that uses diesel as fuel for firefighting, but it is usually used as a backup firefighting facility, because it can only be started automatically when the firefighting signal comes, and the electric water pump fails or the power supply is cut off, that is, the diesel engine firefighting pump set. It is very different from the electric fire pump in that it has its own independent power supply and storage system.

The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance. Due to these advantages of high performance and low energy consumption, the safety and efficiency of the fire pump are far ahead of the pipeline tools of the same purpose.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

CDL stainless steel vertical multistage pump is especially suitable for boiler feed water, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire pressurization, hydraulic flushing, food, brewing, medicine, chemical industry, aquaculture , environmental protection, chemical process and machine tool supporting industries, as the power equipment for water supply and drainage.

A fire pump is installed to ensure an adequate and pressurized water supply for firefighting systems, such as sprinklers, standpipes, and hoses, in case of a fire emergency.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

As a fixed firefighting equipment, diesel engine fire pumps are widely used in firefighting and shunting operations, especially when there is no power supply or no power supply (main power supply).
Diesel fire pumps can also be equipped with other diesel engines as power engines according to user needs. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery, intelligent self-control panel, etc. The crankshaft of diesel engine fire pump has high overall rigidity, high strength and high torque transmission efficiency. Adopt international advanced technology, sliding bearing, plate-fin cooler, upper heat exchanger, rotary oil filter, double cooling system. Diesel engine fire pump performance, smoke and noise indicators meet national standards.

EDJ2500gpm@10bar
Pump test well, can match the rated flow and head
EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pump model of the electric pump and the diesel engine pump are all OTS split case pumps, and the jockey pump is a CDL pump. The three pumps are automatically switched, and can work even if the power is cut off. It adopts high-quality bearings and wear-resistant packing seals.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

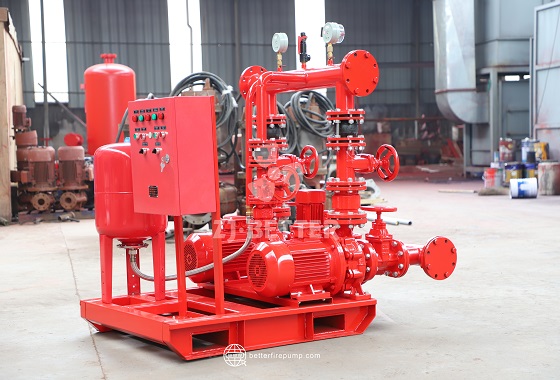

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

Fire pumps are the key to supplying fresh pressurized water to fire protection systems. They do not produce water per se, but add the energy needed to effectively extinguish a fire. These pumps can be connected to sprinkler systems or other external water sources near the emergency situation. Some may actually be connected to a well, reservoir or water body.

Choose the installation location: Ensure it’s a clean, ventilated, and non-flood-prone area.
Prepare a solid foundation: Use a robust concrete base to minimize vibration.
Follow manufacturer guidelines: Properly align and secure the pump and diesel engine.
Connect fuel supply and exhaust systems: Ensure safe fuel storage and proper exhaust ventilation.

The ZJ Better electric fire pump system is designed and manufactured in strict accordance with international firefighting and safety certification standards such as ISO. Every component undergoes rigorous testing and durability assessments to ensure stable performance even under high-intensity operation. To meet the diverse needs of various firefighting environments, the product is subjected to multiple field simulation tests before shipment, including high-temperature resistance, corrosion resistance, and extended continuous operation. Through stringent quality control and ongoing technological upgrades, the ZJ Better electric fire pump system delivers exceptional firefighting efficiency and safety assurance, offering reliable and long-lasting protection for industrial, commercial, and public facilities

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.
