The function and characteristics of diesel engine fire pump

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

30 HP EJ fire pump package dispatch to Manila
It is made of one electric pump 150gpm 150 psi and one jockey pump with 8gpm 160 psi
Also include controller and pipe syetem
It is the clients 4 times order for Better Technology Group

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The box type double power fire pump is easy to install and does not need to build another pump room. The complete set of equipment leaves the factory with simple operation and reliable performance.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

The EE fire pump is composed of two electric pumps. According to the customer’s requirements, there is no jockey pump and control cabinet. It is a small fire pump set with competitive price. The fire pump set is being tested at the Better factory. , make sure the product is free of any problems.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

1. Jockey pump
2. Suction piping
3. Fire pump
4. Discharge piping
5. Pressure switch
6. Pressure gauge
7. Check valve
8. Control panel
9. Alarm system
10. Bypass valve
11. Priming chamber (if applicable)
12. Backflow preventer (if applicable)

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1. Increase the suction head: Increasing the suction head, or the vertical distance between the suction inlet and the centreline of the impeller, can reduce the chances of cavitation.

2. Increase the impeller speed: Increasing the impeller speed can also reduce the chance of cavitation.

3. Install an air separator: An air separator in the suction line can help remove any entrained air from the system, thus reducing the chance of cavitation.

4. Install a venturi: A venturi installed in the suction line can help create an area of low pressure, which can reduce the chance of cavitation.

5. Install a priming valve: A primer valve can help reduce the suction head and thus reduce the chance of cavitation.

6. Install a vacuum breaker: A vacuum breaker can be used to reduce the pressure in the suction line, thus reducing the chance of cavitation.

7. Improve the suction piping: Improving the suction piping, such as using larger pipes, can reduce the chance of cavitation.

8. Inspect the pump and suction line: Inspecting the pump and suction line for any signs of wear or damage can help reduce the chance of cavitation.

Diesel engine fire pumps are large-scale fire pumps. Diesel engine fire pumps are currently the hottest fire pumps on the market, especially in large warehouses, docks, airports, petrochemicals, power plants, and liquefied gas stations. This kind of fire pump with large flow and high power is often needed.

Fire pump set manufactured by Better Technology CO., LTD. In accordance with the Chinese national standard GB27898.5-2011 fixed fire water supply equipment part 5 “fire double power water supply equipment” hereinafter referred to as “packaged fire pump”, “ Fire Pump Set” or “fire pump packages” and National Fire Protection Association’s NFPA20 “Standard for the Installation of Stationary Pumps for Fire Protection”(2016). and meet the latest Chinese national standard CCCF certification requirements and obtain a certificate. Fire pump package is one of the reliable products in fire water supply equipment.
The minimum fire rated working pressure of fire pump package is 0.3MPa, and the minimum fire rated working flow is 2L/S. The fire pump package includes at least two types of motor pump sets, engine pump sets, jockey pump sets, diaphragm pressure tanks, pipes, valves, electrical control systems, control sensors and other related accessories driven by the power source. Fire water supply equipment continuously supplies water to the fire pipe network. The reasonable layout, the firm installation, the reliable connection, the compact and tidy structure, and convenient for maintenance and overhaul.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

The fire-fighting dual-power water supply equipment is suitable for all kinds of emergency backup pumps. When the mains is normal, the electric pump set is put into work. When the power supply fails and the electric fire pump cannot be put into use normally, the diesel engine fire pump set can be automatically put into operation to ensure firefighting. Fire extinguishing is carried out normally, and the diesel engine fire pump set is equipped with various automatic functions to meet the requirements of national standards, ensuring that the equipment is in a normal standby state for a long time, and can be put into fire fighting work at any time.

Fire pumps typically draw water from a reliable source such as a dedicated water tank, municipal water supply, or open water source. It’s essential to ensure that the water supply is sufficient and free from contaminants.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump can be completely separated from the mains.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

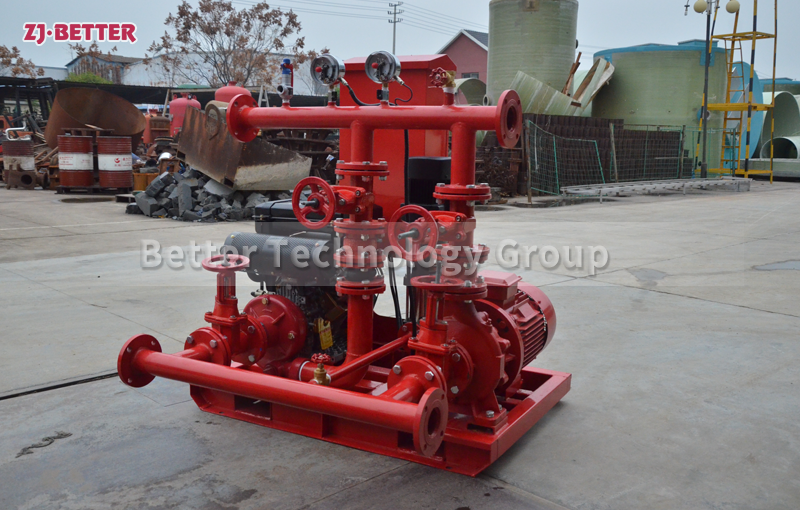

DJ fire pump set consist of diesel pump, jockey pump and control panel. The diesel engine is fixed on the base with anti-vibration rubber pads and the pump is directly coupled to a diesel engine through flexible coupling, According to the power output of the engine the electrical system, the diesel engine can be Cummins,Deutz,Perkins and Other China brand engine(Shangchai,Yuchai,ec.) and it consists of alternator, started motor, fuel system, lubricating system, exhaust system, etc.

Floating impeller axial force tone- balancing device
The balancing slice device has two gaps, the radial gap behind the impeller and the axial gap of the balancing slice, because of these two gaps, the balancing slice can automatically acclimate the axial l gap to achieve automatic balance of axial force, and the tableware rotor is in a floating state.

The principle of the balance plate is scattered to the impeller, the impeller back mouth ring radial concurrence below the axial concurrence, this device that’s the same as the balance plate, the conformation of two gaps, only in a different position. Because the impeller has these two gaps to round each other, so that the impeller can also achieve automatic balance of axial forces.

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Outdoor controller for fire pump set use for outdoor fire pump set

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The dual power fire pump pressure switch and control cabinet can automatically turn on/off the three pumps – the electric pump and the jockey pump work when there is electricity, and the diesel pump when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW
