The Horizontal Split Case Centrifugal Pump for Industry

As the name suggests, fire pumps are used in fire fighting, and they are divided into different types according to different classification methods. Due to their characteristics of full sealing, no leakage, and corrosion resistance, they are widely used in environmental protection, water treatment, tdaf001 Tiandun fire protection and other departments. Pumping various liquids is an ideal pumping and fire-fighting system for creating leak-free, pollution-free civilized workshops and civilized factories. The pump types are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the process flow and water supply and drainage requirements. The performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Methods” standard.

CDL series vertical stainless steel multistage centrifugal pump is anon-self-PRIming vertical MULTIstage centrifugal PUMP DESIGNED and MANUFACTURED by absorbing domestic and foreign technology, using standard vertical motor and quick loading mechanical seal, easy to replace.

The over-current part of the pump is made of stainless steel (304\316) material, which can be applied to mildly corrosive media. This product can replace foreign CR, CRN and other similar products. After the product is put on the market, with its energy-saving, good quality, wide range of use and other characteristics, by the majority of users love.

1.Radial runout of the shaft is controlled within 0.13mm of the US standard
2.Runs smoothly and the noise is low
3.Various stainless steel materials such as ductile iron, ASTM304, 316, 416 are selected to meet various special working conditions and technical requirements of users

CPS pump ready to loading
This is Constant Pressure Systems
normal color is blue, and use for water supply

·UL Standard:
Flow:50-500GPM
Head:6-16 Bar（90-230PSI）
·Non-UL Standard:
Flow：50-5000 GPM
Head：3-16 Bar（40-232 psi）

Regular testing is crucial. Weekly churn tests, monthly flow tests, and annual full performance tests are recommended to ensure the pump operates correctly and meets required standards.

Type D & DG multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water. The temperature of pumped medium oftype D are not more than 80C and type DG110℃
Type D& DG pumps are horizontal single-suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontal and that of type DG is vertically up. The position of discharge port is arranged vertically up.
The shaft sealing of these pumps are sealed with soft-packing. At the location of the shaft sealing, there is a renewab le sleeve to protect the shaft.
The pumps are directly driven by the motor through the flexible coupling.
The rotating directions of the pumps are clockwise, when viewed pump from the driving end.

XBD fire pump has the advantages of low energy loss, small footprint, low noise operation, easy disassembly and assembly.

Common issues include loss of power, inadequate water supply, and mechanical failures. Regular maintenance and prompt repair of identified issues can mitigate these problems.

ISW series horizontal centrifugal pump is a new generation of energy saving,environment friendly verticalcentrifugal pump researched and developed by our company,whichabsorbs advanced technology of similar products abroad and adoptsdomestic general performance parameters of centrifugal pumps.

ISG Vertical In-line Pumps are widely used in building water supply systems, HVAC systems, cooling water systems, industrial circulation systems, fire protection systems, and other fields, providing efficient and reliable hydraulic conveying solutions for various facilities.

Vertical long axis pump is also called vertical long axis submerged sewage pump, which has the advantages of high efficiency and energy saving, convenient operation, low noise and easy maintenance. It can be used to transport clean water or sewage containing solid particles, such as iron filings, coal powder, sand, etc., and the transport temperature is lower than 80 ¡ãC.

The Vertical turbine pump is mainly used to transport clean water, sewage containing certain solid particles (such as iron filings, sand particles, coal powder, etc.), corrosive industrial wastewater and seawater. It is widely used in primary water treatment plants, sewage treatment plants, metallurgical and iron and steel industries (especially in the industry where the swirling pool conveys iron oxide scale water), power plants, mines, municipal projects and farmland water conservancy projects.

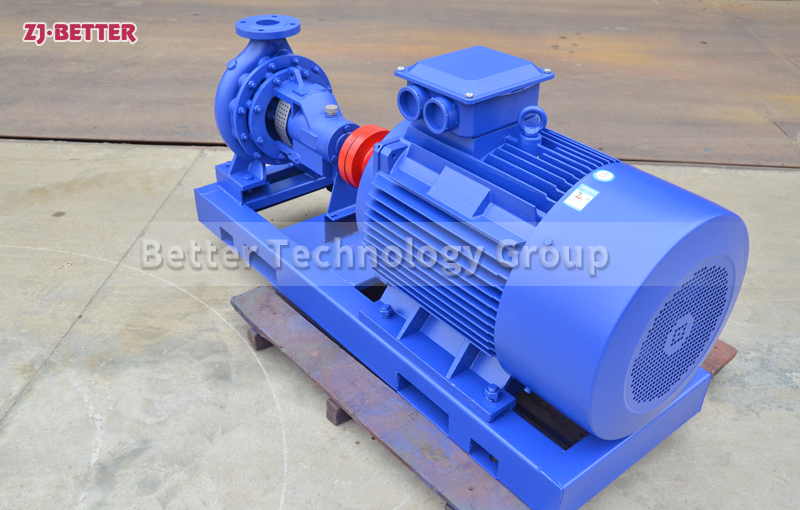

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

ISO single-stage single-suction centrifugal pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump independently developed by the staff of Beide Technology Group and domestic water pump experts using the domestic excellent hydraulic model and the performance parameters of domestic general centrifugal pumps. Different from the ISW basic centrifugal pump, it has the characteristics of excellent performance, high reliability, long life, reasonable structure and beautiful appearance, and has the industry leading level.

Sewage pump is a pump and motor connected, and at the same time into the liquid work pump products, compared with the general horizontal pump or vertical sewage pump, sewage pump compact structure, small footprint. Easy installation and maintenance, large sewage pumps are generally equipped with automatic coupling device can be automatically installed, installation and maintenance is quite convenient. Long continuous operation time. Sewage pump because pump and motor coaxial, shaft is short, rotating parts light weight, so the bearing load (radial) is relatively small, life is much longer than the general pump. There is no cavitation damage and irrigation water problems. In particular, the latter point brings great convenience to the operator. Low vibration noise, low motor temperature rise, no pollution to the environment.

D-type horizontal multistage centrifugal pump is a single-suction multistage segmental centrifugal pump with advanced and reasonable structure, high pump efficiency, good cavitation resistance, low vibration, stable and reliable operation, and long life.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Horizontal split double suction fire pump Applicable occasions: fire water supply in residences, hotels, office buildings, commercial buildings, factories, hospitals, etc. In general, as long as any flow pressure operating point is selected within the performance range of the horizontal split double-suction fire pump, the appropriate model can be provided to meet the needs of users.

XBD series fire pump set is a new type of fire pump developed by our company according to the actual needs of the market for fire booster (stabilized) pumps and its special requirements for special use, and in strict accordance with the latest national GB6245-2006 “fire pump” standard. product. Tested by the National Fire Equipment Quality Supervision and Testing Center, all performance indicators meet or exceed the standard requirements, and have obtained the formal certification of the National Fire Equipment Testing Center.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

Electric fire pumps offer several advantages, including reliability, consistent performance, and ease of maintenance compared to diesel-driven pumps. They also eliminate the need for onsite fuel storage and reduce emissions.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The OTS Split Case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.

The electric motor fire pump is a relatively important water supply equipment in the fire protection system. The electric motor fire pump has a wide coverage of lift, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensuring emergency use.

Vertical fire pump is mainly suitable for pressurized water supply of fire system pipelines. It is also applicable to industrial and urban water supply and drainage. It can be used in some occasions such as pressurized water supply of high-rise buildings and long-distance water supply. It is composed of electromechanical and pump. The pump and motor share the same shaft. The pump structure is composed of pump body, impeller, pump cover, mechanical seal and other components. The inlet and outlet of the pump are on the same horizontal axis, and the diameter specifications Also, it is very convenient to install and remove. If the pump is equipped with a mounting base, the installation is also more convenient, which can increase the stability of the pump during operation. The seal of the pump is a mechanical seal, which has the characteristics of reliable sealing and no leakage.

Sewage pump is a kind of non-clogging pump, with many forms: such as submersible and dry type, dry type sewage pump with cam rotor, mainly used to transport urban sewage, feces or liquid containing fiber, paper scraps For mediums such as solid particles, the temperature of the medium to be conveyed is usually not greater than 80 ¡ãC. Because the conveyed medium contains fibers that are easily entangled or bunched. Therefore, the flow passage of this kind of pump is easy to be blocked. Once the pump is blocked, the pump will not work normally, and even the motor will be burned, resulting in poor sewage discharge. It has a serious impact on urban life and environmental protection. Therefore, blocking resistance and reliability are important factors for the quality of sewage sewage pump.
