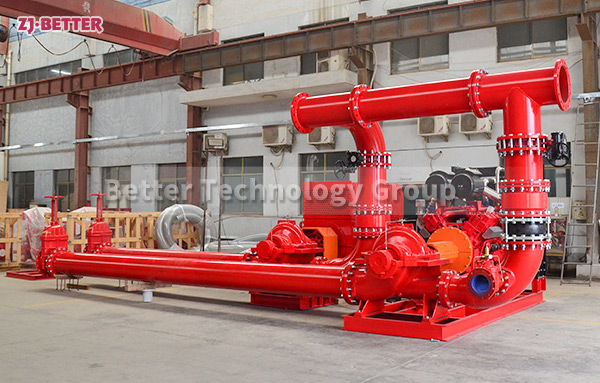

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set: Unparalleled Fire Suppression Performance

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump set has the characteristics of good starting performance, strong load capacity, compact and effective structure, convenient maintenance, simple and reliable use, etc. The generator set has maintenance functions such as speed limit, low oil level, repeated failed starts, high temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm system or the centralized control cabinet of fire-fighting facilities to establish a real-time monitoring function.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

With the characteristics of full sealing, no leakage and corrosion resistance, fire pumps are widely used in environmental protection, water treatment, fire protection and other departments. They are ideal pumps for building non-leakage, non-pollution civilized workshops and civilized factories. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is that the electric fire pump needs power system supply. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

The fire pump is mainly used to pressurize and send water to the fire system pipeline. It can also be applied to industrial and urban water supply and drainage, pressurized water delivery for high-rise buildings, long-distance water delivery, heating, bathroom, boiler cooling and heating cycle pressurized air-conditioning refrigeration system water delivery and equipment matching, etc.

This equipment is a customized EEJ fire pump set which can meet 500GPM@80m. The duty pump and standby pump are XA series pump.

The fire pump set consists of electric pump + diesel pump + jockey pump, The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.

Diesel engine fire pump is also called “engineering diesel engine fire pump group”. Diesel engine fire pump group has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use and so on. The unit is equipped with protection functions such as overspeed, low oil pressure, failure to start three times, high water temperature, low oil level, and low battery voltage. It can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Yes, firefighting pumps are often used in conjunction with water tanks, lakes, rivers, or other water sources to ensure a constant and adequate water supply during firefighting operations. Portable water tanks or drafting equipment can be employed to access water from non-traditional sources when necessary.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

25≤Q≤100GPM
30≤H＜120m

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building.

Handling such systems involves:

Zoning: Implement zoned fire protection systems tailored to the specific needs of different areas within the building, such as residential, commercial, and industrial spaces.
Custom Design: Design custom fire pump setups to meet the diverse requirements of each zone, ensuring adequate pressure and flow rates.
Flexible Operation: Use control systems that allow flexible operation and adaptation to the varying fire protection needs of different building areas.
Unified Monitoring: Integrate the fire pump systems into a unified monitoring and control system to ensure coordinated response and management across the entire building.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

The EDJ fire pump unit consists of a fire pump, a double-shaft motor and a diesel engine. One end of the output shaft of the double-shaft motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double-shaft motor is connected to the One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action driving circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

Maintenance, commissioning and after-sales service of fire pump set! which consist of electric split case fire pump, diesel engine fire pump and controller

Multi stage pump refers to a pump with two or more impellers, which can absorb and press water in stages and stages, so as to lift the water to a very high position. The lift can increase or decrease the number of stages of pump impellers according to needs; When the single-stage pump head needs to be equipped with two-stage motors, the multi-stage pump can be equipped with four-stage motors by increasing the number of impellers, which can improve the service life of the pump and reduce the noise of the unit. When the actual required lift of the pump is less than 125 meters, the selection of a single-stage pump or a multi-stage pump can be comprehensively considered according to the area of the pump room, the pump price (the price of a multi-stage pump is generally higher than that of a single-stage pump) and other factors.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply systems, and can be used in fire protection and living shared water supply systems. It can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions .

Diesel engine fire pump sets are mainly suitable for fire water supply systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.

After receiving the fire/pipe network pressure/power failure/other start signals, the diesel engine fire pump can automatically start and enter full load operation within 5 seconds. The battery can be automatically charged by the main power supply or the diesel charging motor to ensure the smooth start of the equipment; automatic alarm protection for low oil pressure, high water temperature and other faults of the diesel engine, overspeed alarm and shutdown; the diesel engine fire pump is in a hot engine standby state to ensure emergency work. The diesel engine fire pump adopts the direct connection technology between the diesel engine and the water pump. Through the elastic coupling, the failure points are reduced, the start-up time of the unit is greatly shortened, and the reliability and emergency performance of the unit are improved.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, warehouses, etc., with different performance requirements and quality requirements. The commonly used types of fire pumps include electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multi-stage fire pumps Pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pump is a kind of fire-fighting equipment that we often see and often use in our life. The diesel engine fire pump has the characteristics of good starting performance, strong overload capacity, compact internal structure, convenient maintenance, simple operation and high degree of automation. It is a very reliable fire fighting equipment.

According to the needs of system operation control and maintenance management, the fire pump electrical control cabinet mainly has the functions of starting and stopping the pump, switching the main and standby pumps, manual automatic switching, dual power switching, inspection, protection, and feedback mechanical emergency start.

The diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump. The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries.

1. The function of the diesel fire pump is very powerful. We can set the control time during use, such as: preheating, pre-lubricating or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.
2. The head and flow can be controlled by adjusting the speed of the engine, and the height and size of the water flow become easier to control. When the nozzle is in a stable state, by controlling the engine, we can accurately spray the water source at the fire point to extinguish the fire, which also reduces the difficulty of rescue for firefighters.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
