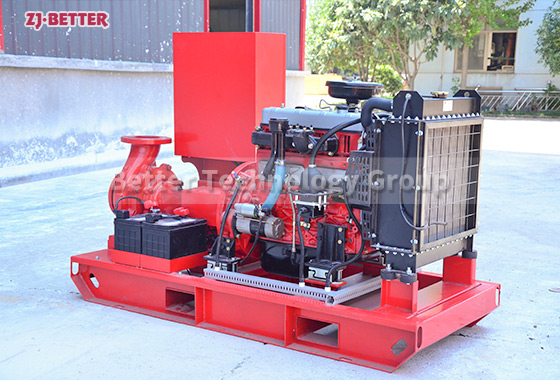

The XBC-IS Diesel Engine Fire Pump: Ensuring Fire Safety with Unparalleled Reliability

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-200 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa

The fire pump is an imported product from abroad. It is divided into different types according to different classification methods. It is fully sealed, leak-free and corrosion-resistant. It is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is the creation of Ideal for pumps and fire protection systems in non-leakage, non-pollution civilized workshops and civilized factories. The pump types are similar, but the head and flow are different.

XBC series fire pump set is a new type of fire fighting equipment (hereinafter referred to as equipment) developed by the company in strict accordance with the national standard GB6245 “performance requirements and test methods for fire pumps” and the American Fire Protection Association standard NEPA20 “installation of centrifugal fire pumps”. , This series of equipment can be divided into three sub-series XBC-IS, XBC-S, XBC-D according to the fire pump (single-stage single-suction type, single-stage double-suction type, segmental multi-stage type) used. It has a wide range of pressure and flow, and its application can meet almost all kinds of occasions required for fire protection. The diesel engines equipped with the equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is an advanced and reliable fire fighting equipment.

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C¡£
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

The advantage of the diesel engine fire pump is that when a fire breaks out, the power supply fails, and the electric fire pump set cannot be put into use normally, the diesel engine fire pump set can be put into operation automatically to ensure the normal fire fighting. Compared with the electric fire pump set, the second advantage is that it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time.
The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

Flow: 238-1000 gpm / 15-63 l/s

Head:2-21 bar / 29-304.5 psi

Caliber: 100-150mm

Power: 11-160kW

Speed: 1500r/min

Working Pressure: 1.6MPa

Fire pumps are used in the equipment of the fire protection system. Their function is to increase the pressure to supplement the water source, so as to achieve the purpose of extinguishing the fire. Moreover, the equipment adopts high-tech means and introduces advanced technology, which has incomparable advantages over other products.

The diesel engine fire pump has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. Diesel engine fire pump is composed of diesel engine, chassis, cooling water tank and fan, high elastic coupling, water pump, diesel tank and control panel and other equipment. The diesel engine fire pump is directly connected with the diesel engine through a highly elastic coupling or a diaphragm coupling, and is installed on a common channel steel chassis.

1. Automatic start: After the diesel engine pump unit receives a fire alarm/pipe network pressure/power failure/or other start-up signals, it can start automatically within 15 seconds and be put into full-load operation;
2. Automatic charging: the battery can be automatically charged by the mains or diesel engine charging motor to ensure the smooth start of the unit;
3. Automatic alarm: automatic alarm protection for diesel engine low oil pressure, high water temperature and other faults, and alarm and stop when the speed is exceeded again;
4. Automatic preheating: keep the diesel engine in a hot standby state to ensure emergency work;
5. Direct connection type: The diesel engine pump unit below 360kw adopts the first domestic direct connection technology between the diesel engine and the water pump through the elastic coupling, which reduces the failure points, greatly shortens the starting time of the unit, and increases the reliability and emergency performance of the unit ;
6. Users can also request to set other alarm outputs (non-standard supply);
7. With telemetry, remote signaling and remote control functions (non-standard supply);
8. The equipment is powered by X6135, 12V135, 4102, 4105, 6102 and other series diesel engines. The diesel engine (with clutch) is connected with the fire pump through a highly elastic coupling to form a fire pump group. Fans, control panels (for automatic units) and other components.
9. When it is an automatic control unit, the split diesel engine automatic control cabinet (programmable) realizes the automatic start, input and automatic switching of the system (the electric pump group is switched to the diesel engine pump group or the diesel engine pump group of this group is switched to another group. Diesel unit), automatic protection (diesel engine overspeed, low oil pressure, high water temperature, three start failures, low oil level, low battery voltage and other alarm shutdown protection) and other functions, and can also interface with the user’s fire center or automatic fire alarm device, Realize remote monitoring.
10. In order to ensure the normal operation of the unit in an environment below 5°C, the unit can be equipped with an AC220V cooling water preheating heating device.
11. Diesel engine fire pump can form an automatic fire water supply system with electric pump group, stabilized pump, etc.
There are two water inlet methods for fire pumps: self-irrigation and suction. According to the requirements of fire protection regulations, it is generally self-irrigation. If the user needs to absorb two kinds of water, according to the requirements of fire protection regulations, it is generally the method of self-irrigation and water diversion. If the user needs to suck up the water inlet system, special instructions are required so that the company can provide an automatic vacuum water diversion device, but the size of the pump set has changed.

Portable fire pump is mainly composed of engine, water supply system and hand lift. The engine is the power. Most of the engines used in portable fire pumps are automobile engines, because automobile engines have the characteristics of high power, light weight, simple structure, easy to use and maintain, and fast starting. The air supply system is the working part of the portable fire pump, and the hand lift is the support of the whole machine. When using, pull out the handle horizontally to lift the pump.

Experience efficient fluid transfer with the XBC-XA Diesel End Suction Pump. With its unique end suction design and powerful diesel engine, this pump offers reliable performance and exceptional pumping capacity. It is suitable for a wide range of applications, from industrial fluid transfer to fire protection systems. The XBC-XA Diesel End Suction Pump features automatic operation, advanced control systems, and automatic fault detection for added safety and convenience. Choose this versatile pump for reliable and efficient fluid transfer in various industries.

When the temperature of a diesel engine fire pump becomes too high, it can indicate various underlying issues that need to be addressed promptly to avoid potential damage or failure. Here are five possible reasons why the temperature of the diesel engine fire pump might be too high

Fire pump performance curves are graphical representations that show the relationship between the pump’s flow rate and its discharge pressure. These curves help in selecting the right pump for a specific application by providing crucial data on how the pump performs under various conditions. Key points on the curve include:
Shutoff (Churn) Point: The point at which the pump operates with no flow, indicating maximum pressure.
Rated Point: The point at which the pump delivers its rated flow and pressure.
End of Curve: The maximum flow the pump can handle while maintaining acceptable pressure.

Environmental and Working Conditions
Ambient temperature:
Ambient temperature range 4℃-40℃.
Working to improve the ambient temperature every 5℃, its power decreased by 1%(to 25℃ as the base);
Altitude:
Reference elevation 91.4m, the reference atmospheric pressure is 100KPa;
If the work to an altitude of over 1000m, reference should be corrected GB1105 1-1987 diesel engine power, you can consult the specific technical department;
Relative humidity ≤80% (20℃), outdoor allow 90% (when installed outdoors in the order presented, you can choose to configure the outdoor structure, protection class IP55).

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

All places need to be equipped with fire-fighting facilities, and fire pumps are the water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power systems. supply. In the event of a power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

XBC series diesel double suction pump, large diesel flow pump set, adopts new type double suction pump + diesel engine + automatic control system (optional) combination of diversified and efficient, superior performance, safe and stable operation, low noise, energy saving and environmental protection, Easy installation and maintenance, long service life. The technical level has reached the domestic leading large flow. XBC series diesel double suction pump is mainly used for irrigation, municipal drainage, fire fighting, etc.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The fire pump impeller plays a crucial role in the operation and performance of a fire pump. It is a key component responsible for generating the flow and pressure of water or firefighting agents. Here are the main roles and characteristics of the fire pump impeller:

Flow Generation: The primary role of the impeller is to create the flow of water or firefighting agents within the pump. It consists of curved blades or vanes that spin rapidly when driven by the pump’s motor or engine. As the impeller rotates, it draws water into the pump and imparts energy to the fluid, causing it to move radially outward towards the pump outlet.

Pressure Generation: The impeller also contributes to the generation of pressure within the fire pump. The curved blades of the impeller impart centrifugal force to the water, increasing its velocity. This increase in velocity is then converted into pressure as the water is directed towards the pump’s outlet. The shape and design of the impeller blades play a crucial role in optimizing pressure generation.

Efficiency: The impeller design influences the overall efficiency of the fire pump. Efficient impeller designs are aimed at minimizing energy losses and maximizing the conversion of input power into hydraulic energy. Factors such as blade shape, size, and spacing are carefully considered to optimize the impeller’s efficiency and hydraulic performance.

Material Selection: The impeller is typically constructed using materials that are resistant to corrosion, wear, and erosion. Common materials include bronze, stainless steel, or composite materials. The chosen material must withstand the demands of pumping water or firefighting agents, especially when operating in challenging environments.

Impeller Trim: The impeller trim refers to the adjustment or modification of the impeller’s diameter or blade length. By changing the impeller trim, the pump’s performance characteristics, such as flow rate and pressure, can be adjusted to meet specific requirements. Trim modifications are often made during the pump’s installation or commissioning phase to optimize its performance for a given system.

Compatibility and Performance Matching: The impeller is carefully selected to match the pump’s design, performance requirements, and system characteristics. Proper selection ensures that the impeller’s characteristics, such as flow capacity and pressure head, align with the intended application and hydraulic conditions. Matching the impeller to the pump system helps achieve optimal performance and efficiency.

Maintenance and Inspection: The impeller requires regular inspection and maintenance to ensure its proper functioning. Over time, debris or particles may accumulate on the impeller blades, affecting its performance. Regular cleaning, inspection of blade condition, and realignment of impeller components are necessary to maintain optimal pump performance and prevent efficiency losses.

The fire pump impeller is a critical component that contributes to the overall performance and efficiency of a fire pump system. Its role in generating flow and pressure ensures the effective delivery of water or firefighting agents to combat fires and protect lives and property. Proper design, material selection, maintenance, and performance matching are essential to maximize the impeller’s effectiveness and overall fire pump performance.

Diesel Vertical Pump
Flow rate:25-5000gpm
Head:Less 160 m
Speed:1500-3000 rpm
Battery:12 V or 24 V

Flow：80-4000 GPM
Head： 3-15 Bar
Power：11-1000 kw

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Flow：250-10000 GPM
Head：3-16 Bar
Power：11-1000 kw
The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

The inlet pipe of the self-priming pump does not need to install the bottom valve, and the water can be sucked up after being filled with water for the first time, and there is no need to add water in the future. Self-priming function.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI
