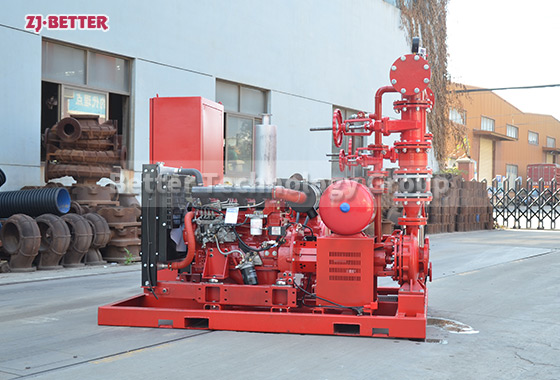

Understanding the Technology Behind EDJ FIRE PUMP SET

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Fire pumps work by drawing water from a water source (such as a dedicated water tank or municipal supply) and pressurizing it before delivering it to the fire sprinkler system or hose lines.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

Handling such systems involves:

Zoning: Implement zoned fire protection systems tailored to the specific needs of different areas within the building, such as residential, commercial, and industrial spaces.
Custom Design: Design custom fire pump setups to meet the diverse requirements of each zone, ensuring adequate pressure and flow rates.
Flexible Operation: Use control systems that allow flexible operation and adaptation to the varying fire protection needs of different building areas.
Unified Monitoring: Integrate the fire pump systems into a unified monitoring and control system to ensure coordinated response and management across the entire building.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. Its national standard model is XBCL/Q, where L and Q represent the lift value and flow value of the fire pump respectively. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Fire pumps are designed to operate in a range of environmental conditions, but extreme weather conditions can pose challenges. Adequate protection measures and regular maintenance help ensure that fire pumps function reliably in various weather conditions.

The use of fire pumps is generally based on different situations. Different types will have different classification methods. The fire pump is in its own fully sealed state, without the possibility of leakage, and can resist corrosion. , is widely used, and is mainly used in fire protection, sewage treatment and some departments of environmental protection. It is used to pump different liquids, so that there is no leakage and no pollution. It is very civilized A kind of fire engine, which is very beneficial to the use of all of us.

1. Jockey pump
2. Suction piping
3. Fire pump
4. Discharge piping
5. Pressure switch
6. Pressure gauge
7. Check valve
8. Control panel
9. Alarm system
10. Bypass valve
11. Priming chamber (if applicable)
12. Backflow preventer (if applicable)

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

The fire pump set adopts ISW pump. ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump developed by our company by absorbing the advanced technology of similar foreign products and adopting the general performance parameters of domestic centrifugal pumps.

In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pump systems, like any mechanical equipment, can face various challenges that impact their performance and reliability. Some common issues include:

Cavitation: This occurs when there’s excessive pressure drop in the suction piping, causing vapor bubbles to form within the pump. Cavitation can damage the pump and reduce its efficiency.

Overheating: Fire pumps generate heat during operation. Overheating can lead to pump failure, so proper cooling and ventilation are essential.

Blockages: Debris or obstructions in the piping can impede water flow, reducing the pump’s effectiveness.

Wear and Tear: Like any mechanical equipment, fire pumps experience wear over time. Regular maintenance is essential to replace worn parts and ensure longevity.

Identifying and addressing these challenges promptly is essential for maintaining the functionality and reliability of fire pump systems.

The ultimate in tailor made fire protection pump packages are the SPP Pumps pump house packages, housing pumps, control systems and pipework. After simply connecting the water and power supplies on site, the unit is immediately operational.

A fire pump is designed to provide adequate water pressure to a sprinkler system during a fire emergency. It is usually powered by an electric motor or diesel engine and is capable of pumping water at a much higher pressure than a domestic water pump. A domestic water pump is designed to provide water pressure to a regular plumbing system for everyday use. It is usually powered by an electric motor and is capable of pumping water at a lower pressure than a fire pump.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.

There are many applications for fire pumps, and different motors are selected according to the flow rate and head size. The commonly used motors include electric motors and diesel engines, and domestic and foreign brands can match the application. The fire pump can choose vertical or horizontal structure according to the pipeline requirements, and the head size is also different.

1. The fire pump pump room should be located close to the water source.

2. The location should allow easy access for maintenance and repair.

3. The area should be well-ventilated and protected from extreme weather conditions.

4. The room should be suitable for operation and maintenance of the fire pump system.

5. The pump room should be protected from unauthorized access.

6. The area should not be subject to flooding.

500gpm, 5bar fire fighting pump, export to Greece.Duty pump is electric fire pump, diesel engine fire pump as standby.

A fire pump is installed to ensure an adequate and pressurized water supply for firefighting systems, such as sprinklers, standpipes, and hoses, in case of a fire emergency.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.

Application fields of XA fire pump:
For conveying clean water and liquids with physical and chemical properties similar to water;
Liquid pressurization devices of water works or water supply companies;
Circulation and cooling systems, boiler feed water, industrial water supply and drainage in industrial process systems;
Farmland irrigation and drainage, air conditioning system, urban water supply and drainage, fire protection system.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

Provide a comprehensive guide on fire pump regulations, such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), local building codes, and UL/FM certification requirements. Discuss how these regulations impact the design, installation, and maintenance of fire pumps, why they’re essential for safety, and how to ensure your fire protection system meets all necessary legal and insurance requirements.

This is a set of 400gpm@90psi fire pump set, which consists of electric pump + diesel pump + jockey pump. Multiple fire pumps work together to ensure the quantity and stability of water supply. It is a pump set for fire water supply. A diesel fire pump to ensure normal operation in emergency situations.

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a treatment medium temperature lower than 80 degrees and non-corrosive. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric motor fire pump set adopts multiple fire water pumps powered by electric motors.

Flow: 45 GPM
Head: 7 Bar
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.
