Upgrading Your Fire Protection with Horizontal Fire Pump

The horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

The OTS Split Case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications.

Submersible pump is an important equipment for deep well water extraction. During use, the whole unit works in the water to extract groundwater to the surface, which is used for domestic water, mine rescue, industrial cooling, farmland irrigation, sea water lifting, ship load regulation, and fountain landscape.

Flow：50-7500 GPM
Head：3-20 Bar
Vertical Turbine Fire Pumps play a versatile role in various applications. They are essential in water management, agriculture for irrigation, and industrial processes dealing with different liquids. These pumps excel in emergency fire response, ensuring a swift and reliable water supply. Crucial for urban water systems, they meet the constant demand for clean water. With resilience to saltwater and corrosion, Vertical Turbine Fire Pumps are indispensable in marine engineering tasks such as drainage. In essence, these pumps provide robust solutions across diverse needs, spanning water management, emergency response, agriculture, and marine applications.

Regular testing and maintenance are crucial for ensuring the reliability of fire pumps when they are needed most. Fire pump testing typically includes flow tests, which evaluate the pump’s performance under various conditions, and driver tests, which examine the performance of the power source (electric motor or diesel engine). Routine inspections and maintenance should be conducted according to National Fire Protection Association (NFPA) standards and the manufacturer’s recommendations.

These tests and maintenance activities help identify potential issues, allowing for preventive measures and timely repairs, thus ensuring the fire pump’s readiness in case of an emergency.

Electric fire pumps should be installed in a dedicated, well-ventilated room with adequate space for maintenance. The location should be easily accessible and comply with local fire codes and standards.

This series of pumps adopts a vertical structure, which can better save the floor space, has the characteristics of high efficiency, wide application range, flexible installation forms and convenient maintenance.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

CDL series vertical stainless steel multistage centrifugal pump is anon-self-PRIming vertical MULTIstage centrifugal PUMP DESIGNED and MANUFACTURED by absorbing domestic and foreign technology, using standard vertical motor and quick loading mechanical seal, easy to replace.

The over-current part of the pump is made of stainless steel (304\316) material, which can be applied to mildly corrosive media. This product can replace foreign CR, CRN and other similar products. After the product is put on the market, with its energy-saving, good quality, wide range of use and other characteristics, by the majority of users love.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums. Consulting with professionals and adhering to maintenance guidelines ensures the safe and reliable operation of the pump within air conditioning systems.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums. Consulting with professionals and adhering to maintenance guidelines ensures the safe and reliable operation of the pump within air conditioning systems.

Before start:

Turning the clutch by hand, there should be no jammedphenomenon at the turner position.
Opening the inlet valve and the vent valve, letting the waterfill into the pump’s chamber, then closing the vent valve.
Clicking the switch of motor, and confirming whether theturning is right or not.

Running:

Fully opening the inlet valves, and closing the valves of theoutlet pipe.
Connecting the power, Opening the valves of the outlet pipeand adjusting the needed working point when the turning velocityis normal.
Watching whether there exist abnormities or not, if yes,should the pump be stopped and inspected before re-running.

Stop:

After turning off the outlet valves one by one, shutting offthe power.
Shutting off the inlet valves.
If the ambient temperature is below 0 , some warm-℃keeping measures should be adopted.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

Series OTS pumps are single stage,double suction with horizontally split casings.
They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105℃.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.
They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

Site conditions
YE3 series motors air suitable for almost all applications and operate satisfactorily at temperatures from -20 to +40 and
altitudes up to 1000 meters above sea level.
Temperature and insulation
The Motors’ insulation system are designed by Class F(155 ), operated with Class B(80K). Which incerase the motor useful
life and reliability.
Cooling and ventilation
The standard cooling method is totally Enclosed Fan Cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard
motors are equipped with radialflow plastic fans.
Protection class
The standard degrees of protection is IP55.The IP55 enclosure means complete hoseproof and dustproof protection. A
higher degrees of protection is available.
Motor protection
Motors can be installed with PTC, PT100, such as winding and bearing temperature measurement as well as other kinds of
protection on request

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

Vertical turbine pump pacakge process
The vertical turbine pump is hot sale in Philippines makrket
It can save pump room area and use in port area
If any need can contact with us

Flow：50-5000 GPM
Head：30-160 m 3-16 Bar 40-232 psi
Power：11-1000 kw
Frequency：50 or 60 Hz

Flow：250-10000 GPM
Head：3-16 Bar
The Horizontal Split Case Centrifugal Pump is a widely used in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications.

The single-stage double suction centrifugal pump is a new type of energy-saving horizontal split pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. According to the user’s demand, the pump can be used to transport muddy sand water or various corrosive liquids by changing the pump structure and material. This series of pumps are suitable for factories, mines, urban water supply and drainage, power stations, household irrigation and drainage and various water conservancy projects.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

370kg package weight for the booster pump

There are many classification methods for fire pumps, which can be divided into sprinkler pumps, fire hydrant pumps, stabilized pumps, etc. according to their uses.

Flow：50-5000 GPM
Head：3-16 Bar

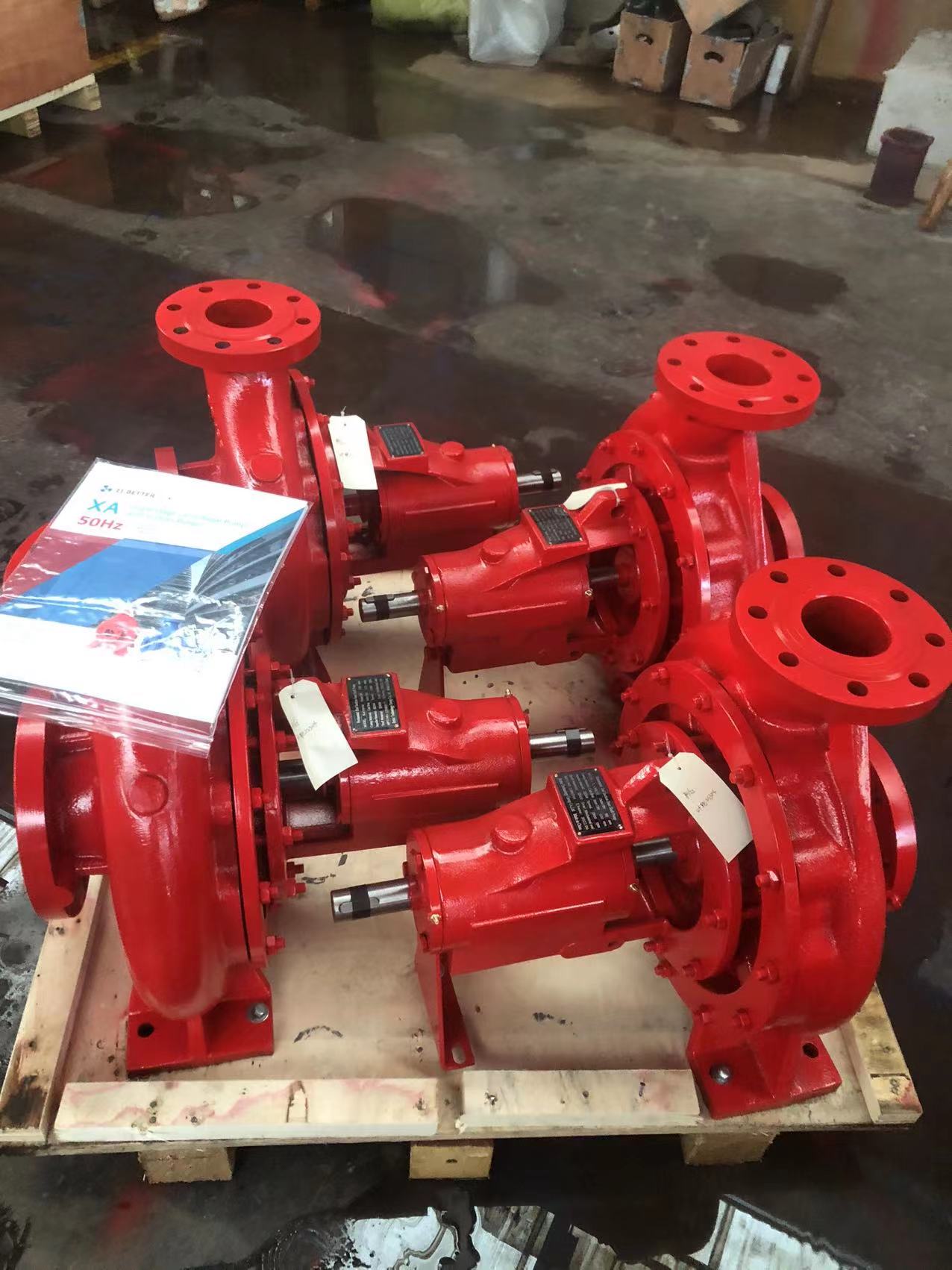

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing.

XBD-L-type vertical suction sub-fire multi-stage pumping systems for non-delivery of water and solid particles of similar physical and chemical properties of liquid water use. Fire mainly used for pressurized water pipeline system, but also to industrial and urban water supply and drainage, high-rise building pressurized water, and transport from the water, heating, bathrooms, boilers and well-being of pressurized water cycle, air conditioning and refrigeration equipment for water systems and other occasions.

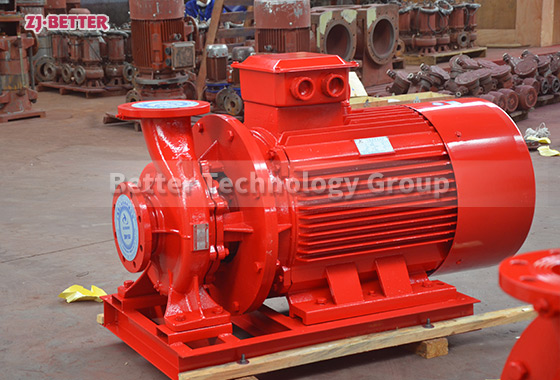

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

The end suction pump works by rotating the impeller to make the water centrifugally move. Before starting the centrifugal pump, it is necessary to fill the pump casing and the suction pipe with water, and then start the motor to make the pump shaft drive the impeller and the water to rotate at a high speed. It flows into the pressurized water pipeline of the single-suction pump. According to the material type and the different configurations of the sealing system and cooling system, the single-stage single-suction pump has a wide range of applications. The end suction pump can pump clear water media, and can be used in air conditioning, heating, pressurization, building water supply, fire protection buildings, etc. It can pump chemical media similar to water and other corrosive liquid media, and can be used in chemical, horizontal, pharmaceutical, metallurgy, petroleum and other fields.
