Versatile Air Conditioning Pumping Solutions

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China) Technology Co., Ltd.
This product combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model.Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

Electric fire pumps are mainly used for fire-fighting water supply in high-rise buildings, with a wide range of head and flow, basically meeting the needs of most users. The operation of electric motor fire pumps is also relatively simple, and the vertical installation occupies a small area. The main function of the electric fire pump set is to supply water. If the water output is insufficient, it will affect the emergency use. Therefore, everyone should choose a matching and suitable fire pump model.

The vertical split pump has a compact structure and a beautiful appearance. This series of pumps is a convenient dismantling structure. The pump and the pump are integrated, and the appearance is beautiful. Dismantling function, convenient maintenance, low maintenance cost.

Regular testing is crucial. Weekly churn tests, monthly flow tests, and annual full performance tests are recommended to ensure the pump operates correctly and meets required standards.

The split case pump is also known as a single-stage double-suction centrifugal pump, and its main feature is that the flow rate of the conveying medium is large. The working principle of the split pump operation: The impeller is installed in the pump casing and fastened to the pump shaft, which is directly driven by the motor. There is a liquid suction and suction pipe in the center of the pump casing. The liquid enters the pump through the bottom valve and suction pipe. The liquid discharge port on the pump casing is connected with the discharge pipe. When the speed of the pump is constant, its pressure head and flow rate are related to the diameter of the impeller.

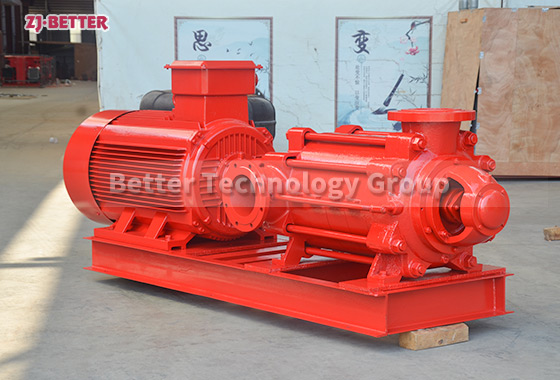

Type D & DG multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water. The temperature of pumped medium oftype D are not more than 80C and type DG110℃
Type D& DG pumps are horizontal single-suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontal and that of type DG is vertically up. The position of discharge port is arranged vertically up.
The shaft sealing of these pumps are sealed with soft-packing. At the location of the shaft sealing, there is a renewab le sleeve to protect the shaft.
The pumps are directly driven by the motor through the flexible coupling.
The rotating directions of the pumps are clockwise, when viewed pump from the driving end.

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.

ZX series self-suction pump is an energy saving pump designed with ISO international standard and developed through absorbing and improving the related technical data both at home and abroad and belongs to the self-suction centrifugal pump and uses the mechanical seal of a ceramic ring so as to resist any sandy liquid to go into the sealing face, preventing it from getting scratched. This pump holds the advantages of a compact structure, easy operation, stablemovement, easy maintenance, high efficiency, long duration and strong self-suction capacity and, as no foot valve is needed to be mounted on the pipeline and only a certain amount of leading liquid is required to be filled into the pump before work, improves the work condition while simplifying the pipeline system.
This pump can be equipped with either Y series common motor or YB series explosion-proof one upon the different surroundings of use.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

The lifespan of a fire pump depends on factors such as usage, maintenance, and environmental conditions. With proper maintenance and regular testing, fire pumps can have a service life of 20 years or more. However, individual components may need replacement during this period.

Environmental considerations include:

Energy efficiency: Using efficient motors and VFDs to reduce energy consumption.
Noise levels: Installing pumps in noise-sensitive areas may require sound-dampening measures.
Water conservation: Ensuring the system is designed to use water efficiently and avoid unnecessary wastage.
Emissions: Unlike diesel pumps, electric pumps do not produce exhaust emissions, making them more environmentally friendly.

This pump operates with multiple stages (impellers) stacked vertically, which pressurize the water as it moves upwards through the pump casing. Each impeller increases the pressure and flow until it reaches the required level for firefighting purposes.

Flow：50-5000 GPM
Head： 3-16 Bar / 40-232 psi
Power：11-1000 kw
Frequency：50 or 60 Hz

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Flow：50-7500 GPM
Head：3-20 Bar
Vertical Turbine Fire Pumps play a versatile role in various applications. They are essential in water management, agriculture for irrigation, and industrial processes dealing with different liquids. These pumps excel in emergency fire response, ensuring a swift and reliable water supply. Crucial for urban water systems, they meet the constant demand for clean water.

The name of the fire pump is the name of the fire pump. The pump used on fire protection. The fire pump is introduced to foreign products. According to different classification methods, it is divided into different types. It is widely used in environmental protection, water treatment, fire protection, etc. The department is used to pump all kinds of liquids. It is an ideal pump and fire system for creating non -leakage and pollution -free civilized workshops and civilized factories. The pump types are similar, but the raising and traffic are different. The selection basis for the fire pump should be considered according to the process of process and water drainage requirements.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

Electric Split case pump
double suction split case centrifugal pump
Features: Large Flow, High Pressure

The OTS Double-Suction Split-case centrifugal Pump with High-Pressure Electric Motor is an exceptional firefighting equipment. This powerful combination delivers high flow rates and unmatched pumping efficiency, ensuring robust and continuous firefighting actions. Its compact design allows for quick deployment and rapid response, making it suitable for various settings. From rural wildfires to urban firefighting needs, this firefighting pump safeguards communities of all sizes, representing the pinnacle of safety and protection.

ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Flow: 30-5000 GPM
Head: 3-20.5BAR
Speed: 980~ 3550 r/min

Vertical turbine pumps are used to extract normal temperature water and warm water below 100¡ãC from wells, rivers, lakes and seas. It is more suitable for urban, factory sewage and water with high sand content in rivers and seas, and is widely used in factories and mines, cities and countries, planting and farmland irrigation. They are also used for groundwater supply in municipalities that do not depend on surface water.

ISO series single stage centrifugal pump is a single-stage single-suction centrifugal pump product developed by China Better Technology Co, Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard. This product combines the strengths of similar products at home and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. The long shaft pump provides flexibility through customization options and multiple driving choices. It is a reliable solution for water supply, sewage treatment, and chemical processes. Choose the long shaft pump for reliable and efficient fluid handling in your engineering projects.

Horizontal fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be applied to industrial and urban water supply and drainage, pressurized water delivery for high-rise buildings, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation, pressurized air conditioning and refrigeration system water delivery and equipment support and other occasions.
The horizontal fire pump consists of two parts, the motor and the pump. The fire pump and the motor are coaxial. The pump structure includes the pump body, impeller, pump cover, mechanical seal, etc. It is equipped with a mounting base, which is easy to install and increases the stability of the pump operation. , The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

The part of the pump body and pump cover of the ISO centrifugal pump is split from the back of the impeller, that is, the so-called rear door structure. The advantage is that the maintenance is convenient. During maintenance, the pump body, the suction pipeline, the discharge pipeline and the motor are not moved, and the rotor part can be withdrawn for maintenance only by removing the intermediate connecting piece of the extended coupling.
