Vertical multi-stage fire pump set

The multistage fire pump consists of two parts: the motor and the pump, and the motor and the pump are coaxial. The structure of the pump consists of pump body, impeller, pump cover, mechanical seal and so on. The inlet and outlet of the pump are on the same horizontal axis and have the same caliber specification, so the loading and unloading is very convenient, and the floor space is small. The pump is fitted with a base for easy installation and increased pump stability. It is used to transport clear water without solid particles, liquids with physical and chemical properties similar to water. It is mainly used for pressurized water delivery in fire-fighting system pipelines, and is also suitable for industrial and urban water supply and drainage.

Diesel engine fire pump Controller, use for diesel engine fire pump
①Voltage display: control the voltage in the cabinet.
②Current display: control the current in the cabinet.
③Power indication: control the power in the cabinet. (red)
④Diesel engine fault indication: diesel engine fault state indication. (red)
⑤ ” Emergency stop “: the button for emergency stop electric fire pump and diesel engine fire pump. (red)

The pump station from Better Technology Group is being installed

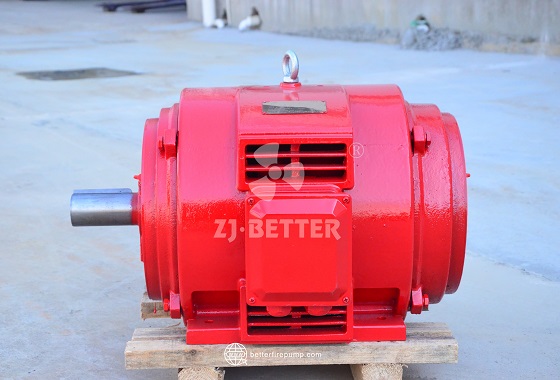

These photos show some of the motors used in exhibitions. Our company’s ordinary motor products include Low voltage motor, Low-voltage variable frequency speed control motor, Compact low voltage high power motor, High voltage motor, High voltage motor, High voltage compact motor, Low-voltage flameproof motor, Low-voltage flameproof type variable frequency speed regulating motor, Low-pressure dust explosion-proof motor.

Product Introduction of Electric Fire Pumps
XBD electric fire pumps are a kind of new type fire products researched and developed in full compliance with the state issued-newly standard of GB6245-2006 “Fire pump”, according to the end-user’s practical needs and special using requirements. The inspection of the state fire equipment quality supervising center shows its all kinds of performance indexes are up to or over the standard’s requirements and it earned the certificate for fire state products.

WQ (QW、WQK ) series submersible sewage pump applicable to transport containing solids and fiber of sewage or clean water.

The housing of the diesel engine fire pump constitutes the working chamber of the pump. The impeller, shaft and rolling bearing are the rotors of the pump. Suspension bearing parts The supporting parts support the rotor parts of the pump, and the rolling bearings are subjected to the radial and axial forces of the pump. In order to balance the axial force of the diesel engine fire pump, most pumps have sealing rings at the front and rear of the impeller, and a balance hole on the back cover of the impeller. Because some pumps have little axial force, there is no seal on the back of the impeller. ring and balance hole. The axial sealing ring of the diesel engine fire pump is composed of packing gland, packing ring and packing to prevent air intake or large water leakage.

Explosion-proof motor is a type of motor with explosion-proof performance. The measures taken are: the electrical equipment cover is installed in a casing, which has a structure that can withstand the explosion pressure of the internal explosive mixture and can prevent the internal explosion from spreading to the explosive mixture around the casing (flameproof type); make the motor Live parts are not likely to generate sparks, arcs or dangerous temperatures sufficient to cause an explosion hazard, or isolate live parts that could produce these phenomena from the explosive mixture so that they cannot come into contact with each other or to the extent that they are explosive (increase safety type, ventilation type, etc.). In all kinds of environments with explosive danger, it is very important to choose the explosion-proof motor matched with all kinds of equipment correctly.

High efficiency, flat performance curve, wide operating range, in line with the relevant regulations of the fire department, and can meet the needs of different users
Adopt segmented structure, stable operation, low noise, long service life, small footprint, easy installation and maintenance

The pump’s performance range: flow 130-9000m3/h, head 3.5-22m. Simple structure, reliable use, easy
installation, high efficiency, small body, light weight.

WQ(QW) series products in the rated voltage is
380 V or thter , power frequency for 50 Hz/60HZ when used
2、 the temperature of the medium no more than
40℃, medium density≤1150kg/m3, PH valuein 5～9
range.
3、 the altitude does not exceed 1000 meters
4、 transport medium viscosity not super 1000 CP
5、 products work operation must be completely submerged, but shall not be more than 10 m diving depth

The gasoline engine water pump is a centrifugal pump composed of a water pump and a bracket. It has the advantages of low cost, light weight, convenient maintenance, low manufacturing cost and low noise.

The domestic water supply equipment system is equipped with storage tanks and other water storage facilities, which saves the floor area and reduces the construction load, thereby saving a large amount of civil engineering investment costs. The intelligent and automatic operation of the equipment does not require a special person to be on duty, which saves management costs, and there is no water quality treatment instrument, which eliminates the need for regular cleaning and disinfection; the loss of system dripping, leakage, and overflow is reduced.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

The special hydraulic design and structural design make it more suitable for building fire-fighting water supply system with flow and pressure grading than ordinary centrifugal clean water pumps, and the flow-pressure characteristic curve is flat and has no hump. All parts of the friction parts due to rotation are made of wear-resistant, corrosion-resistant and anti-meshing materials, which have high reliability. The multi-stage pump can be equipped with double water outlets, which has high bearing capacity, strong anti-overload capacity and sensitive starting. .

Specification
1. Simple structure, reliable performance
2. Small size, light weight
3. Good corrosion resistance, low power consumption
Main features
1.Mechanical seal and packing seal
2.Types of stainless steel: 301, 304, 316L
Application
It is used for drainage of industry, agriculture and city and fire-fighting drainage.
Technology parameter
Flow Q (m3/h): 3.5-400
Head H (m): 3-125
Rotating speed N (r/min): 1450, 2900
Power P (kw): 0.55-90
Model explanation
IS/IR/IH 100 – 80 – 160 A
* IS — clear water centrifugal pump
* IR — heat water centrifugal pump
* IH —chemical centrifugal pump
100 — inlet caliber
80 — outlet caliber
160 — impeller diameter
A — first incision

The double-blade impeller structure is adopted, which greatly improves the passing capacity of dirt.
The mechanical seal adopts a new type of grinding pair, and runs in the oil chamber for a long time;
The overall structure is compact, the volume is small, the noise is low, the energy saving effect is remarkable, the maintenance is convenient, and the user is convenient to replace;
Can be used within the design range without overloading the motor;

An “air conditioner pump” is not a common term in the context of air conditioning systems. However, it’s possible that you might be referring to one of the components or aspects related to air conditioning systems. Let me provide some information on components that could be related to what you’re asking:

Submersible sewage pump is a submersible sewage pump, especially suitable for conveying liquids containing hard solids, fibers and especially dirty, sticky, slippery liquids.

The sewage pump is a kind of centrifugal impurity and has many forms: such as submersible type and dry type. At present, the most common submersible type is the WQ type submersible sewage pump, and the most common dry type sewage pump is the W type horizontal sewage pump. And two types of WL vertical sewage pump. Mainly used to transport urban sewage, manure or liquid containing fiber. For the medium of solid particles such as paper scraps, the temperature of the conveyed medium is usually not greater than 80¡ãC.

The integrated prefabricated sewage pumping station of Beide Technology Group Co., Ltd. serves the glass production base in Xingan County Development Zone, Ji’an, Jiangxi Province. On-site commissioning training is delivered to relevant departments. Thank you and leaders for the support.

The remote monitoring system for the water supply pump station is suitable for the remote monitoring and management of the pressurized pump station in the urban water supply system.
The pump station manager can remotely monitor the water level of the pump station pool or the entry pressure, the working status of the booster pump group, the outbound flow, and the exit pressure from the monitoring center; they can remotely control and automatically control the start and stop of the booster pump group; When optical fiber communication is used, the panorama and important stations in the station can be monitored by image, so that the pump station can be unattended.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

The pressure tank, also known as the pressure tank, is one of the important components in the secondary water supply equipment. Its core function is to stabilize the water pressure, so it is called the pressure tank.
The reason why the surge tank can stabilize the water pressure is mainly achieved by compressing the gas in the capsule, because water is an incompressible fluid, and water with the same pressure can compress the gas to store water and have a certain pressure.

Sewage pump is a pump and motor connected, and at the same time into the liquid work pump products, compared with the general horizontal pump or vertical sewage pump, sewage pump compact structure, small footprint. Easy installation and maintenance, large sewage pumps are generally equipped with automatic coupling device can be automatically installed, installation and maintenance is quite convenient. Long continuous operation time.

In view of its excellent performance and cost performance, single screw pump has gradually been widely used in China in recent years. Its main features are strong adaptability to the medium, stable flow, small pressure pulsation, and high self-priming ability, which cannot be replaced by other pumps. Single screw pump is widely used in petrochemical, environmental protection, exploration and mining, medicine and food, shipbuilding industry, energy industry, papermaking, construction, mining, machinery and other industries.

The equipment from Better Technology Group is debugging now

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

This device is suitable for fighting Class A (ordinary combustibles like wood, paper, and textiles), Class B (flammable liquids such as gasoline, oils, and alcohols), and some Class D (combustible metals like magnesium and titanium) fires, depending on the foam concentrate type used.
