What are some considerations for selecting the right firefighting pump for specific applications?

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Containerized fire pump system which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system

The electric pump of the EDJ fire pump group is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive electricity from the The signal from the contact pressure gauge will start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal operation of the fire extinguishing work.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.

EDJ fire fighting equipment consists of electric pump + diesel pump + jockey pump. Both the electric pump and the diesel pump use a multistage jockey pump with large flow and high lift. The diesel engine can be started without electricity. It is suitable for any fire protection occasion. The company has a professional sales and production team, and the choice of pumps can be customized according to their own needs.

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers, etc., which can all be completed by means of fire pump systems.

Fire pumps used in different fields have different professional characteristics. For example, fire pumps in the general sense are installed on professional fire trucks or other special fire-fighting facilities, and are used to transport water and foam solutions for fire-fighting Pump.

The DJ model is basically a combination of a diesel engine and a jockey pump. They consist mainly of end suction pumps driven by diesel engines and have no backup pumps. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete DJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

Available DJ-type fire pump skid kits provide the following flows:
50, 120, 150, 250, 300, 350, 500, 750 and 1000 GPM.

Suction and Discharge Connections: The fire pump has dedicated suction and discharge connections for the water supply and the distribution system, respectively. The suction connection draws water from a water source such as a reservoir or hydrant, while the discharge connection delivers the pressurized water to the fire protection system.

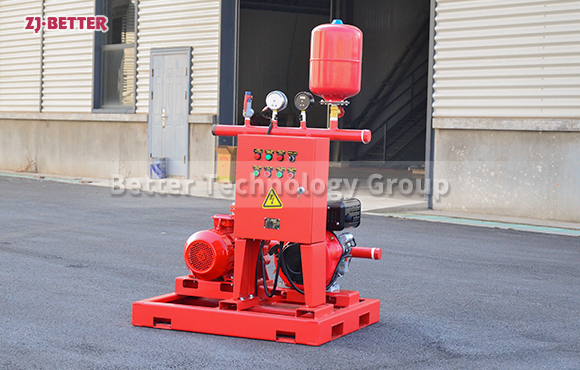

ED small fire pump set (referred to as ED small fire complete set of water supply equipment) refers to a highly integrated electromechanical system with a flow rate of less than 100GPM and composed of electric centrifugal pumps, multi-stage centrifugal pumps (booster pump sets), diesel engine centrifugal pumps, pressure limiting protection Device (safety valve), valve fittings, control system, pressure sensor system, waterless protection device, backflow preventer, soft joint, bypass pipeline, common base, filter, etc. It is a fire-fighting water supply equipment that continuously supplies water to the fire-fighting pipe network at a preset pressure.

Before starting the electric motor fire pump set, the inspection work is indispensable. Check the condition of the power supply and motor, whether the water volume of the reservoir is sufficient, and whether the water inlet and outlet are normal. The inspection is normal and then starts; after the fire pump is started, attention should be paid to the vibration and temperature rise. It is necessary to set the maintenance time period to ensure the stable performance of the fire pump. According to the needs of system operation control and maintenance management, the electrical control cabinet of the fire pump mainly has the functions of starting and stopping the pump, switching between the main and standby pumps, manual automatic switching, dual power switching, patrol inspection, Protection, feedback mechanical emergency start and other functions.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Caliber: 25-800mm
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
5.Speed: 740-2900r/min
6.Material: HT200，SS304，Bronze
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Lifecycle management involves:

Regular Maintenance: Implement a scheduled maintenance program to keep the pump in optimal condition.
Upgrades and Retrofits: Upgrade or retrofit components as technology advances or as system requirements change.
End-of-Life Planning: Plan for the eventual replacement of the pump system, ensuring minimal disruption to fire protection coverage.
Performance Monitoring: Continuously monitor performance to identify when parts or the entire system need replacement or overhaul.

1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

A fire pump is installed to ensure an adequate and pressurized water supply for firefighting systems, such as sprinklers, standpipes, and hoses, in case of a fire emergency.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

EJ fire pump is composed of electric pump + jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc. The pump set is deeply loved by domestic and foreign customers.

CDL stainless steel vertical multistage pump is especially suitable for boiler feed water, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire pressurization, hydraulic flushing, food, brewing, medicine, chemical industry, aquaculture , environmental protection, chemical process and machine tool supporting industries, as the power equipment for water supply and drainage.

These are pictures of a stock outdoor fire pump set. It is composed of electric pump, diesel engine pump, jockey pump, and accessories.

The diesel engine fire pump can form an automatic water fire water supply system with electric pumps and jockey pumps, and can be linked with the fire control center.
When the diesel engine fire pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set, start the motor, start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine until Rated speed. The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the diesel engine fire pump set receives a signal that the pressure of the pipe network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so a diesel engine fire pump is a good choice.

EDJ fire pump after packaged
250gpm 10bar EDJ fore pump set

Diesel engine fire pump is a common fire fighting equipment, especially suitable for use in places without electricity supply. The diesel engine fire pump uses a diesel engine as a power source to convert the work of the pump into hydraulic power to achieve a certain flow and pressure. It is mainly used in building fire protection, engineering fire protection, water source fire extinguishing and other fields.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
