What factors influence the selection of a fire pump?

– Rapid Evacuation: Ensuring the system supports rapid evacuation procedures to minimize risk to large crowds.
– Flexible Design: Providing flexible design options to accommodate varying event setups and capacities.
– Noise and Disruption Minimization: Ensuring minimal noise and disruption to maintain a pleasant environment.
– Compliance with Event Space Standards: Adhering to fire safety regulations and standards specific to high-occupancy event spaces.

Pressure relief valves prevent over-pressurization in the fire pump system. They ensure safe operation by releasing excess pressure, protecting the pump and connected piping from damage.

Fire pump components:
1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. Pipeline supplementary pressure pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is a cutting-edge fire protection solution that combines power, efficiency, and reliability. With a remarkable power output of 2000 kilowatts and a 10-kilovolt system, this fire pump set delivers unmatched water flow capacity and electrical performance. Its advanced Split Case design ensures easy maintenance and optimal performance, making it suitable for a variety of applications. Engineered to exceed industry standards, the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set offers dependable fire protection in the most demanding environments. Invest in this state-of-the-art solution and experience the pinnacle of fire safety technology.

Perform a flow test: Measure pressure at different flow rates.
Run a churn test: Operate the pump at shut-off to check performance.
Simulate power failure: Ensure backup diesel systems kick in.
Record test results: Compare to manufacturer and NFPA benchmarks.

Flow: 30GPM~9000GPM
Head: ＜200m
Speed: 2950~3500 RPM

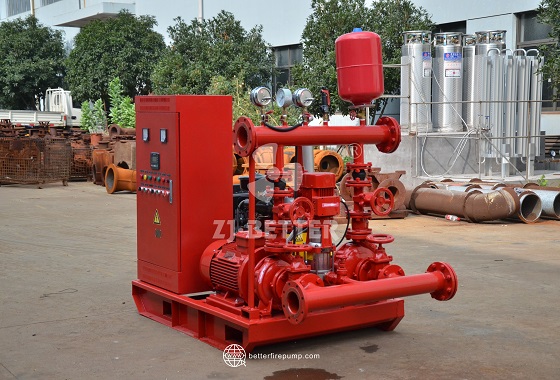

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a fire-fighting equipment with reliable performance. This series of fire pump sets has a wide range of head and flow, which can fully meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Personnel should be trained in fire pump operation, routine maintenance, emergency procedures, and understanding of the relevant NFPA standards. Regular training updates ensure that staff remain knowledgeable about the latest safety practices.

Optimization strategies include:

Variable Frequency Drives (VFDs): Implement VFDs to adjust the pump speed based on demand, reducing energy consumption during low-demand periods.
Efficient Pump Selection: Select pumps with high efficiency ratings appropriate for the expected flow and pressure requirements.
Regular Maintenance: Maintain pumps regularly to ensure they operate at peak efficiency, preventing energy losses due to wear and tear.
System Design: Design the fire protection system with minimal friction losses, using appropriate pipe sizes and layouts to reduce the energy required to move water.

The lower the pumping head of the fire pump, the smaller the motor load. Under the misleading of this kind of misunderstanding, when purchasing a water pump, the head of the water pump is often selected to be very high. In fact, for centrifugal water pumps, when the pump model is determined, the power consumption is proportional to the actual flow of the pump. The flow rate of the water pump will decrease with the increase of the head, so the higher the head, the smaller the flow rate and the smaller the power consumption. Conversely, the lower the lift, the greater the flow and the greater the power consumption. Therefore, in order to prevent the motor from overloading, it is generally required that the actual pumping head of the pump should not be lower than 60% of the calibrated head.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

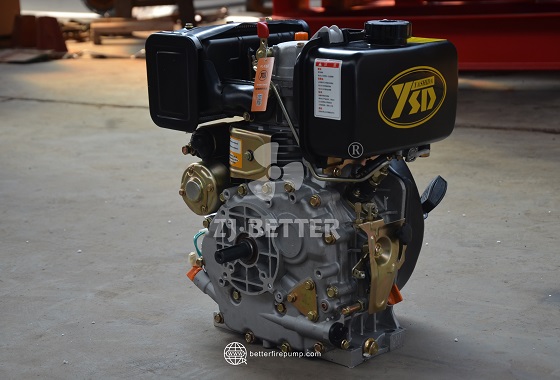

The diesel engine fire pump unit is directly driven by the diesel engine fire pump, and it is a mechatronic equipment that can start and complete the water supply in a short time. The diesel engine pump set is driven by a diesel engine without external power supply. Diesel pumps are suitable for fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, and textiles. Especially in the case of no electricity and dissatisfaction with the grid, choosing a diesel engine-driven water pump is the safest choice.

Power surges or electrical disturbances can impact the operation of electric fire pumps. Proper surge protection measures, such as surge suppressors and lightning protection, should be in place to safeguard the electrical components of the fire pump system.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Single stage centrifugal pump includes pump body, pump cover, motor with output shaft, pump shaft, bearing seat, impeller, mechanical seal and mechanical seal gland installed in the pump body, which are connected with the motor through extended elastic coupling. The rotation direction of the pump, viewed from the driving end, is clockwise. Wanfulong is characterized in that it also includes a clip on coupling arranged between the motor output shaft and the pump shaft, and a guide bearing installed on the bearing seat to assist in supporting the pump shaft; The wafer type coupling is rigidly connected with the motor output shaft and the pump shaft respectively, and a space distance is left between the motor output shaft and the pump shaft to facilitate the assembly and disassembly of the mechanical seal and the mechanical seal gland. When repairing or replacing the mechanical seal, it is not necessary to disassemble the motor and pump cover.

Fire pump model parameters are complete, specifications are rich, affordable, with a wide range of use, corrosion resistance, stable performance and other characteristics, there are perfect after-sales service, can be customized according to demand processing.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump can be completely separated from the mains.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Fire pump system is made of two Electric+Diesel+Jockey pump
The main eletric components is CHNT . If schneider or other brand electrical are need, should mention it before place the order
Diesel pumps can use vertical in- line pumps, horizontal end-suction pumps,vmultistage pumps, horizontal multi-stage pumps, split casing pumps and so on according to diffenent flow and head of customers

Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump set are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. At the same time According to the material quotation required by the customer, accurate selection is conducive to on-site use and reduces failure problems.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

The diesel engine fire pump set has the characteristics of high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly fails, the diesel engine emergency water supply pump set will automatically start to supplement the pressure of the pipe network.
