What is an EDJ Fire Pump Set?

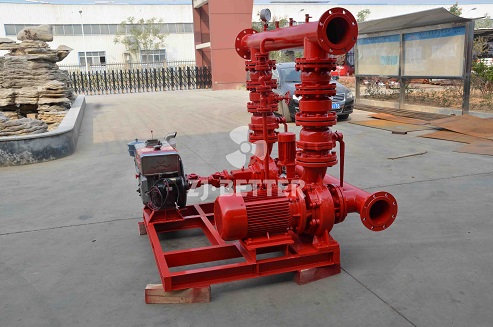

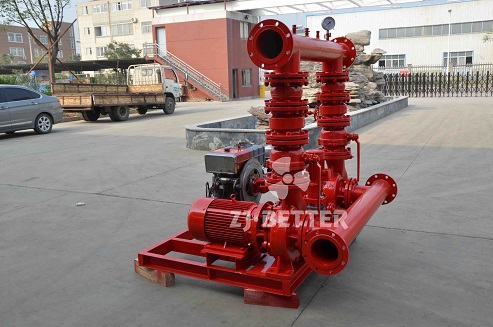

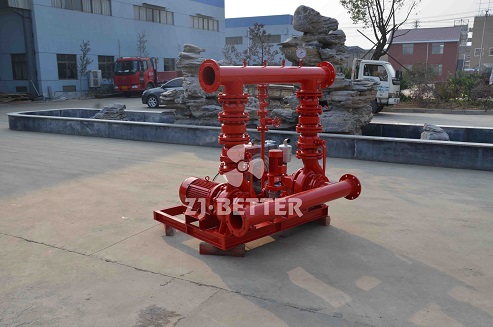

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel pump is a pump powered by diesel engine, which completely reduces the labor intensity of workers, and it is convenient to use, move, install, rarely maintain, and stable performance

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, other diesel engines can also be equipped as power engines according to the needs of users.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

While the primary purpose of fire pumps is firefighting, some systems may incorporate them for other water supply needs, such as industrial processes or water distribution. However, their design and functionality are optimized for firefighting applications.

The current use of fire pumps is still relatively important. As the name suggests, fire pumps are pumps used for fire protection. The fire pumps we use now are all imported from abroad. Its performance mainly includes three aspects, sealing, no leakage, and corrosion resistance. Because of the particularity of its use, its requirements are relatively strict in terms of material selection and production. Considering many aspects, the performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Methods” standard.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Fire Pump Set Components :
Electric pump:kinds of end suction pump, split case pump, multistage pump. made of cast iron, stainless steel. Impeller can be bronze.
Diesel pump:Flow is the same with electric pump. It connects the pump set with High elastic coupling or universal joint. It also includes water tank, oil tank, fans, control screen etc.
Jockey pump:horizontal or vertical, small flow, head is higher than electric or diesel pump
Control panel:control the pumps automatically with overload, overcurrent protection

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Application fields of fire pump set:
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc., national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports, fire engineering companies.

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

Diesel and electric fire pumps are the two primary types of fire pumps used in fire protection systems, each with its own advantages and considerations. Diesel fire pumps are powered by internal combustion engines and are typically used in locations where a reliable electric power supply is not available or where redundancy is needed to ensure continuous operation during a power outage. Diesel pumps are known for their reliability and ability to operate independently of the electric grid, but they require regular maintenance of the engine and fuel system, including fuel storage and periodic testing.

30HP EJ fire pump product process

An additional protective cover is added to the outdoor fire pump, which can protect against rain, sun, and rust to a certain extent.Heat exchange cooling, low noise，Hydraulic brace，Independent suspension system.Able to deal with harsh environments with good quality assurance

Proper maintenance of diesel engine fire pumps, especially preventive maintenance, is simple and economical maintenance, so it is the key to prolong service life and reduce operating costs. Daily maintenance can be carried out according to the following steps to check the amount of fuel in the fuel tank – observe the amount of fuel stored in the fuel tank, and fill it up as needed.
