What is the Best Size Fire Pump for Your Facility?

What is a jockey pump? While its name may remind you of one of those little guys that tells a race horse where to go, a jockey pump is actually used to maintain a high pressure in a fire suppression system.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

EJ vertical turbine fire pump package is including one electric vertical pump and one CDL jockey pump with accessories of gate valve and check valve, pressure relife valve, pressure Gauge, pressure switch, pressure vessel,and mainfold pipe for suction and discharge

There are many applications for fire pumps. Different motors are selected according to the flow rate and head size. The commonly used motors include electric motors and diesel engines, and domestic and foreign brands can match the application. The fire pump can choose vertical or horizontal structure according to the pipeline requirements, and the head size is also different. Finding a professional pump factory or company can reduce the probability of wrong selection, and at the same time take into account the on-site installation requirements and pipeline design.

Fire pump kits include a combination of electric pumps, diesel engine driven and electric motor driven jockey pumps for use in fire suppression systems. The fire pump group has a large flow rate, plays an important role in fire, and maintains a long-term high-efficiency working state under the condition of continuous water resources. With good reliability, it is welcomed and accepted by customers all over the world.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Fire Pump: A fire pump is the heart of a fire sprinkler system and is used to create the necessary water pressure to make the system work. It is powered by an electric motor or diesel engine and pumps water from a water source to the sprinkler system.

2. Control Panel: The control panel is the brains of the fire sprinkler system. It controls the flow of power to the pump and monitors the sprinkler system for any changes in pressure or water flow. It also triggers alarms and other safety devices in the event of a fire.

3. Suction Pipe: The suction pipe is connected to the fire pump and draws water from the water source. It is usually made of steel and must be strong enough to withstand the pressure exerted by the pump.

4. Pressure Gauge: The pressure gauge is used to measure the pressure in the system and ensure that the pump is providing the correct amount of water pressure. It is usually mounted on the control panel.

5. Valves: Valves are used to control the flow of water to and from the system. They are typically operated manually or automatically and can be used to start and stop the pump, control the flow of water, and isolate parts of the system for maintenance.

Yes, the fire pump configuration inspection cabinet is necessary for the fire protection system, as it stores important information and records related to the fire pump, its maintenance, tests, and repairs. This cabinet is also used to keep records of the operation of the entire fire protection system and any system components.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Flow: 30-500GPM
Head: 3-20Bar

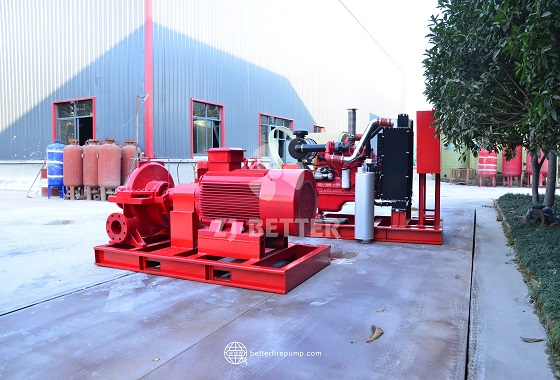

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Leakage failure in a fire pump refers to the undesirable escape of fluid, typically water, from the pump or its associated components. It is a critical issue that can hinder the performance and reliability of the fire pump system. Here are some key aspects of leakage failure in a fire pump:

Causes of Leakage: These include worn or damaged seals, gaskets, or O-rings, improper installation or tightening of connections, corrosion or erosion of pump components, and excessive vibration or misalignment.

Effects on Performance: Leakage compromises the efficiency and effectiveness of the fire pump system.

Safety Risks: Leakage failure poses safety risks to personnel and property.

Maintenance and Inspection: Regular maintenance and inspection are crucial for preventing and addressing leakage failure.

Corrective Actions: When leakage is detected, prompt action should be taken to rectify the issue.

Addressing leakage failure in a fire pump system is essential for maintaining its reliability and performance. By implementing regular maintenance practices, conducting thorough inspections, and promptly addressing any signs of leakage, the risk of failure can be minimized, ensuring the fire pump operates optimally and provides reliable water supply during critical firefighting situations.

Steps include:

Initial Inspection: Perform a thorough inspection of the installation to ensure all components are correctly installed and connected.
Performance Testing: Conduct performance tests to verify that the pump meets the required flow and pressure specifications.
System Calibration: Calibrate control systems and settings to ensure proper operation and response times.
Documentation: Document all tests, inspections, and calibrations, creating a comprehensive commissioning report.
Training: Provide training for facility staff on the operation, maintenance, and emergency procedures related to the fire pump system.

The DJ Fire pump set is made of Diesel fire pump+Jockey pump.
Application Scope：Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Our customer from Philippines ordered 2 sets small flow fire pump set Last month. The flow and head of this small fire pump set is 50gpm and 5bar. This electric fire pump system only includes electric fire pump and jockey pump.

EEJ fire pump set is composed of two electric pumps and one jockey pump. The fire pump adopts ISW pump, which has the characteristics of convenient installation and convenient maintenance, and is widely used in any fire emergency situation.

Outdoor controller for fire pump set use for outdoor fire pump set

50gpm 6bar ED fire pump set test video

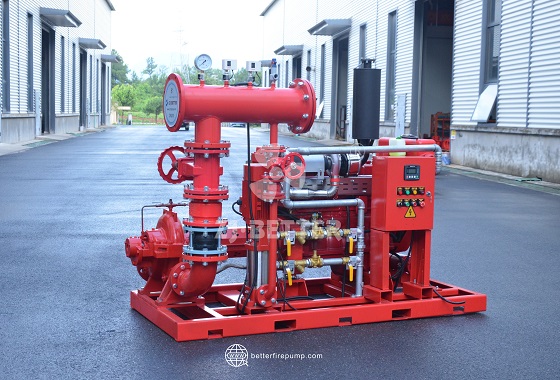

The diesel engine pump set has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is a kind of fire fighting equipment with reliable performance.

While fire pumps are designed to run for extended periods during emergencies, continuous operation under normal conditions is not recommended. Prolonged operation can lead to wear and tear, and regular testing is preferred over continuous running.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Diesel engine fire pumps are mainly used for emergency fire fighting on ships. At the same time, it is also suitable for industrial and mining enterprises, port terminals, warehouses and freight yards and other places. Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power engines according to the needs of users.

DJ fire pump 500gpm, 7bar
Caliber: 150mm
Flow Range:500gpm
Pressure: 7bar
Matching Power: 37kW
Motor:3ph,415V,50Hz

1.Flow: 50-5000GPM
2.Head: 3-20Bar
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

100gpm 8bar small fire pump set test for Rwanda client

This is the three times client place order for us

3 set 100gpm 8bar EDJ fire pump set

250gpm bar EDJ fire pump

100gpm 10bar EDJ fire pump set

When selecting a firefighting pump, it’s essential to consider factors such as the type and size of fires likely to be encountered, the terrain and accessibility of the area, the availability of water sources, and the expertise of the operators. For example, wildland firefighting may require lightweight and portable pumps capable of drawing water from remote sources, while industrial settings may require high-capacity pumps with specialized features for handling flammable liquids or chemicals.

The fire pump is designed to divert water when a fire is detected by the sprinkler system or other fire-detection device. The pump will then draw water from the water supply source and deliver it to the sprinkler system, fire hoses, or other fire suppression devices.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Firefighting pumps play a vital role in enhancing community resilience and disaster preparedness by providing essential firefighting capabilities to fire departments, emergency response agencies, and community organizations. Adequate investment in firefighting infrastructure, including pumps, hoses, and water supply systems, strengthens a community’s ability to respond effectively to emergencies and mitigate the impact of disasters on lives and property.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.
