What is the importance of regular training for personnel on fire pump operation and maintenance?

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

Packaging with iron frame suitable for export transport

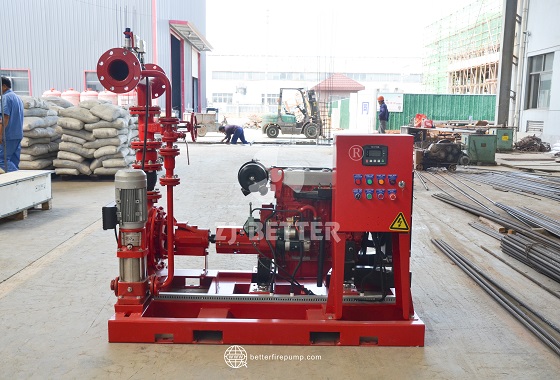

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

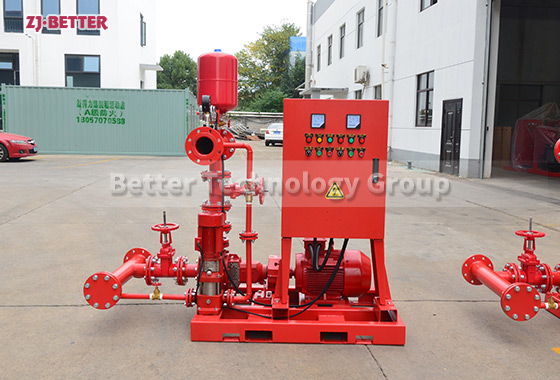

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure.

It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency.
Good stability, vibration proof.
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

Because of the width required by our customer, this fire pump set is designed in in-line. Capacity and total head are 34m³/h@8bar.

The National Fire Protection Association (NFPA) has established standards and guidelines governing the installation and maintenance of fire pumps. NFPA 20, the Standard for the Installation of Stationary Pumps for Fire Protection, provides comprehensive requirements for fire pump design, installation, testing, and maintenance.

Compliance with NFPA 20 standards is essential to ensure that fire pump systems are installed and maintained in a manner that meets nationally recognized safety practices. These standards help ensure the reliability and effectiveness of fire pumps in protecting lives and property during fire emergencies.

Installing fire pumps requires careful planning and adherence to specific precautions to ensure proper functionality and compliance with safety standards. Here are some important precautions to consider during the installation process:

Compliance with Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations. Ensure that the installation meets the requirements of organizations such as the National Fire Protection Association (NFPA) and local authorities having jurisdiction (AHJs).

Professional Installation: Fire pump installations should be carried out by qualified professionals experienced in fire protection systems. Engage licensed contractors or fire protection engineers who specialize in fire pump installations. They possess the necessary knowledge and expertise to ensure a correct and safe installation.

Proper Location: Choose an appropriate location for the fire pump installation. Consider factors such as accessibility, proximity to water sources, electrical connections, and suitable drainage. The location should allow for easy maintenance and serviceability. Follow the manufacturer’s guidelines regarding clearance requirements and proximity to other equipment.

By following these precautions, you can ensure a safe and effective installation of a fire pump system. Proper installation is critical for the system’s performance, compliance with regulations, and the overall safety of the facility and its occupants. Consult with fire protection professionals and refer to relevant codes and standards throughout the installation process.

Fire pumps should be tested regularly to ensure their proper functioning. Monthly tests for a short duration and an annual full-load test are common practices. Regular testing helps identify and address any issues promptly.

Dual power fire pump consists of an electric motor driving fire pump, a diesel engine driving fire pump, a common fire pump controller, pressure vessel, standard fittings and base frame.

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original electric fire pump.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)

EDJ series fire pump set consists of electric pump + diesel pump + Jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

Diesel and electric fire pumps are the two primary types of fire pumps used in fire protection systems, each with its own advantages and considerations. Diesel fire pumps are powered by internal combustion engines and are typically used in locations where a reliable electric power supply is not available or where redundancy is needed to ensure continuous operation during a power outage. Diesel pumps are known for their reliability and ability to operate independently of the electric grid, but they require regular maintenance of the engine and fuel system, including fuel storage and periodic testing.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1. Good sealing performance: The mechanical seal of the fire pump has a good sealing performance and can effectively prevent the leakage of liquid.

2. High reliability: The mechanical seal of the fire pump has strong anti-interference ability and can continuously run for a long time under the rated working conditions.

3. Easy installation and maintenance: The mechanical seal of the fire pump is easy to install and maintain, and its performance is not affected by the installation and maintenance process.

4. Long service life: The mechanical seal of the fire pump has a long service life and can work stably for a long time.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is really high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use Leading the pipeline tools.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. The pump set adopts ISO pump,ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.
This product combines the strengths of similar products in China and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

Fire pump equipment has the characteristics of mature technology, high degree of automation, protection function, reasonable structure and easy installation. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into fire pump, industrial emergency pump, agricultural pump and other application series, can be linked with the electric fire pump switch use.
