What occasions are XBD series fire pump sets mainly used for?

Maintaining a fire pump in the context of a mechanical seal can be critical for safety and performance in various industries. Misunderstandings during this maintenance process can lead to inefficiencies, failures, and safety hazards. Here are some common misunderstandings related to fire pump mechanical seal maintenance:

Fire pumps are necessary because municipal water supplies might not always provide sufficient water pressure to effectively fight fires in large buildings or areas. Fire pumps boost the water pressure to ensure proper coverage and firefighting capabilities.

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Electric fire pumps are mainly used for fire-fighting water supply in high-rise buildings, with a wide range of head and flow. Basically, the needs of most users can be met. The operation of electric fire pumps is relatively simple. The main function of electric fire pumps is water supply. If Insufficient water output will affect emergency use, so everyone should choose a matching and suitable fire pump model.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

Fire pump is a general term for special pumps involved in water supply of various fire systems. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant systems, sprinkler fire extinguishing systems, foam fire extinguishing systems, large space high-altitude water cannons, water mist fire extinguishing systems, rain shower fire extinguishing systems systems, water curtains, etc.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

The fire pump has the characteristics of simple structure and stable performance, and because of its high speed and relatively small volume, its efficiency is really high. It is precisely because of these advantages of high performance and low energy that the safety and efficiency of the fire pump are in the same use Leading the pipeline tools.

The fire pump is all made of polymer materials, so it has many characteristics such as cleanliness, good safety sealing, corrosion resistance, etc. It is a product that is believed in many fields at present. It has a long service life and can make the best use of it without wasting money. It is suitable for fire-fighting engineering in steel, metallurgy, electric power, petroleum, chemical, construction, port and other operations and emergency water supply for blast furnaces, continuous casting, converters, etc. Water supply works.

Maintenance, commissioning and after-sales service of fire pump set! which consist of electric split case fire pump, diesel engine fire pump and controller

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

This is a set of 250gpm @ 8bar fire pump sets. We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Yes, various regulations and standards, such as those set forth by organizations like the National Fire Protection Association (NFPA), govern the design, installation, testing, and maintenance of firefighting pumps to ensure their safety and effectiveness. Compliance with these standards is essential for maintaining fire safety standards and regulatory requirements.

Early detection of fire pump issues is crucial for preventing critical system failures. This article explores the functionalities and benefits of fire pump alarms and monitoring systems in detail. It explains how these systems provide real-time data on the status and performance of fire pumps, enabling early warning of potential problems. By embracing these technologies, facility managers can ensure continuous oversight and timely intervention.

EDJ diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are also other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers and multi-stage fire pump furnaces, etc., can all be completed by means of fire pump systems.

Fire pumps are classified into various types based on their specific applications and operational characteristics. The common classifications of fire pumps include:

Horizontal Split Case Fire Pumps: These pumps have a horizontally split casing, which allows easy access to internal components for maintenance and repairs. They are typically used in large-scale fire protection systems, such as industrial facilities, commercial buildings, and high-rise structures. Horizontal split case pumps are known for their high flow rates and can handle a wide range of pressures.

Vertical Turbine Fire Pumps: Vertical turbine pumps have a vertical shaft and are designed to operate with submerged impellers. These pumps are commonly used in water sources such as wells, rivers, or lakes. Vertical turbine fire pumps are ideal for locations where space is limited, as they have a small footprint. They are also suitable for applications that require high pressures but lower flow rates.

Vertical Inline Fire Pumps: Vertical inline pumps have a vertical design with the motor located above the impeller. These pumps are compact and space-saving, making them suitable for installations where floor space is limited. Vertical inline fire pumps are commonly used in commercial and industrial applications, such as office buildings, hospitals, and manufacturing facilities.

End Suction Fire Pumps: End suction pumps have a single impeller mounted on the end of the shaft. They are widely used in various applications, including fire protection systems. These pumps are known for their simplicity, ease of maintenance, and cost-effectiveness. End suction fire pumps are typically used in smaller buildings, residential properties, and light commercial applications.

Multistage Fire Pumps: Multistage pumps consist of multiple impellers arranged in series. Each impeller adds pressure to the water, allowing these pumps to deliver high pressures. Multistage fire pumps are suitable for applications that require high-pressure delivery, such as high-rise buildings, industrial plants, and sprinkler systems with demanding pressure requirements.

Diesel-Driven Fire Pumps: Diesel-driven fire pumps are powered by diesel engines, providing a reliable source of power in situations where electricity may be unavailable or unreliable. These pumps are commonly used in remote locations, off-grid areas, and critical infrastructure where continuous operation is essential. Diesel-driven fire pumps are known for their durability and ability to deliver high flow rates and pressures.

It’s important to note that these classifications are not exhaustive, and variations of fire pumps exist within each category. The choice of fire pump classification depends on factors such as system requirements, available space, flow rates, pressure requirements, and power sources. Consulting with fire protection experts or system designers can help determine the most suitable fire pump classification for a specific application.

Electric fire pumps have a wide range of uses, of course the most important ones are still used in the fire protection industry, and they are also used in water treatment and environmental protection industries. Among these uses, the firefighting profession uses the most. The fire pump is the advantage of fast water pumping that the firefighting profession has fully utilized. Because most of the work of the firefighting profession is to fight fires, the fire pump has played a great role.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Signs include unusual noises or vibrations, reduced water pressure or flow, frequent tripping of the pump, leakage, and failure to start. Regular inspections and testing can help identify issues before they become critical.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

The fire pump unit can be classified according to the following rules:
1 according to the form of power source, it can be divided into:
A) diesel engine fire pump unit
Motor fire pump unit
C) gas turbine fire pump unit
D) gasoline engine fire pump unit
(2) it can be divided into:
A) water supply fire pump unit
Stabilized pressure fire pump unit
C) hand lift motorized fire pump unit
3. According to the auxiliary characteristics of the pump unit, it can be divided into:
A) common fire pump unit
Deep well fire pump unit
C) submersible fire pump unit
The above is the basic classification, but various types can be combined with each other, such as medium and low pressure fire pumps, high and low pressure vehicle fire pumps, ordinary fire pump sets, electric submersible fire pump sets, etc

Use of EDJ fire pump:

1. All kinds of fire hydrant, sprinkler fire pump;

2. Suitable for all kinds of fire booster and pressure regulator pump occasions;

3. Various villa, community and other fire control systems;

4. Industrial and civil building fire control system;

5. Suitable for all kinds of oil depots, oil loading and unloading docks, logistics parks and other places with high fire level requirements.

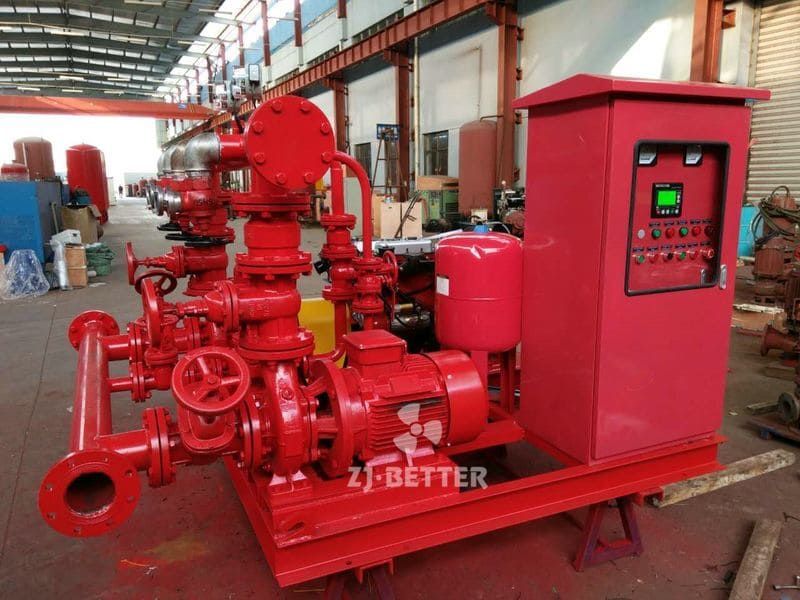

EDJ fire fighting package set is composed of diesel fire pump, electric pump, jockey pump.
Electric pump can choose single-stage pump, horizontal split case pump, end suction pump, multistage centrifugal pump, vertical turbine pump which are made of cast iron or stainless steel. Regarding to the impeller, we also could choose the bronze impeller.
Diesel fire pump, the flow is same as the electric pump. The diesel engine is combined by high elastic coupling or universal joint connection. The diesel fire set also includes fuel tank, water tank, fan, control panel and other components.
Jockey pump which is horizontal or vertical. Normally, it has the characteristics of small flow and higher head (more10-15m head than the electric pump and diesel pump).

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
