What to do if the fire pump is corroded?

Three start-up functions for diesel engines:
1. Manual start function: manual and automatic interlocking can be completed through the transfer switch, and the manual start function can be realized:

2. Automatic manual function: allow to start three times. If the startup fails for three times, it will issue a “startup failure alarm” and automatically exit the startup state. After a successful startup, the time from startup to rated load is 5-10-15S (depending on the unit capacity);

3. Emergency manual direct start function: When the automatic control device fails, the emergency manual direct start function can be realized.

Non-UL Flow：30-9000 GPM
Non-UL Head： 3-20 Bar (40-300 psi)
UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

1. Connection form

The vertical water pump is connected with the motor by the coupling, which needs to be aligned regularly; the perpendicular water pump is superimposed and connected from the bottom to the top, and the perpendicular water pump is generally called the channel pump.

2. Installation form

Compared with perpendicular water pumps, perpendicular water pumps are easier to install. The vertical pump set is handed with a base, and perfection adaptation is needed after installation.

3. conservation difficulty

Since the perpendicular water pump is composed of upper and lower layers, the conservation of the perpendicular water pump is more delicate. For illustration, to repair the impeller, it’s necessary to remove all the corridor above the impeller before repairing; while the vertical water pump is fairly easy. For illustration, the IS type pump can perform impeller conservation by removing the bay pipe.

4. bottom space

It can be seen from the appearance that the vertical water pump has a base due to its vertical structure, so it occupies a large area.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.
All products are tested before delivery to ensure no quality problems.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

This fire pump set uses Cummins diesel engine and ISO pump. The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

The function of the diesel fire pump is very powerful. We can set the control time during use, for example: preheating in advance, pre-lubrication or timing start. The use of high technology has made some complicated and time-consuming things easier. The preheating setting in advance has greatly reduced the preparation time for rescue, allowing firefighters to rescue at the first time. In the face of disasters, time is money, time It is life.

With the continuous development of society, people have higher requirements for the quality of life, and the safety of diesel engine fire pumps is more important. All places need to be equipped with fire-fighting facilities, and fire pumps are water intake equipment for fire-fighting facilities. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps need power system supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

Yes, fire pumps can be integrated with water mist systems, providing a fine water spray for fire suppression. The combined system is effective in controlling and extinguishing fires, especially in enclosed spaces.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

A fire pump is a crucial component of a fire protection system that provides the required water pressure to deliver water to the fire sprinkler system or other firefighting equipment, ensuring an adequate supply of water in case of a fire emergency.

UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)

Diesel engine fire pump has high efficiency, long operating life and high reliability. It can be used in independent fire water supply systems, and can be used in fire protection and living shared water supply systems. It can also be used in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions .

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

The model of fire pump unit consists of six parts: pump characteristics, pump unit characteristic code, main parameters, use characteristic code, auxiliary characteristic code and enterprise custom code
The fire pump with power source is generally composed of a group of fire pump, power source, control cabinet and auxiliary devices.
The diesel electric hybrid fire pump unit can complete the work in various environments more safely, comprehensively and efficiently. In case of power failure, the electric pump will stop working and the diesel pump will start within ten seconds to continue working instead of the electric pump.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. The fire pumps we commonly use are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

0TS series double suction horizontal split case pump is a new series designed based on improvement and innovantion of our company’s traditional products;S、 SH、 SA series, provide a wider range of hydraulic coverage and wide variety of application.
FEATURES Split case design permits easy disassembly, that is, inspection issimplified, it is not necessary to disturb pump alignment and suction&dscharge piping when parts replacement is necessary.
Double suction with advanced designof suction perfromance ensures high suction lift even with large capacity.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. Its national standard model is XBCL/Q, where L and Q represent the lift value and flow value of the fire pump respectively. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

The motor of this fire pump set is directly connected to the fire pump, which simplifies the intermediate transmission structure and enhances the stability of operation. The equipment occupies a small area, saves costs, and is a cost-effective fire pump set.

This fire fighting equipment is an important part of building fire protection system. Its
routine inspection and daily maintenance are very important for each dual-power. If the fire
pump or booster pressure stabilizer pump in the dual power system fails, the fire accident
will lead to great losses of buildings and so on. It is the responsibility of the enterprise to
ensure that all equipment is regularly maintained and inspected, including the maintenance
and maintenance of all fire fighting systems

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions

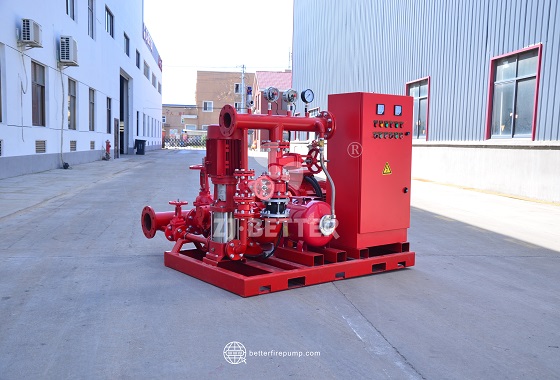

Diesel-driven fire pumps provide a reliable alternative to electric-driven pumps, especially in areas prone to power outages. They offer independent operation without relying on the building’s electrical supply and are often used in remote locations or where backup power is essential.

Flow: 120~1500GPM
Head: H＜150m
Speed:2950-3550RPM

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

250gpm 8bar DJ fire pump is the diesel engine pump and jockey pump, controller and pipe system on one skid, can meet the flow 250gpm @ pressure 8bar, it is Ecuador client’s order for Better Technology Group.
