Why it is called jockey pump?

100gpm 8bar small fire pump set test for Rwanda client

This is the three times client place order for us

3 set 100gpm 8bar EDJ fire pump set

250gpm bar EDJ fire pump

100gpm 10bar EDJ fire pump set

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

Using Instruction
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

The diesel fire pump set is easy to maintain, has a high degree of automation, reliable performance, and a wide range of equipment pressure and flow. XBC type automatic diesel engine fire pump set, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in fire water supply under unexpected circumstances such as no power supply or abnormal power supply (mains power).

The pump will start to work when the pressure in the fire extinguishing system pipeline of EDJ small Fire Fighting water supply equipment drops suddenly. The first triggered pump is the jockey pump(pressure stabili-zation pump). The pressure stabilization pipeline of the jockey pump is allowed to start frequently within a certain range. In general, the pressure of the jockey pump is 1-1.5 bar higher than that of the main pump.

The use of fire pumps is generally based on different situations. Different types will have different classification methods. The fire pump is in its own fully sealed state, without the possibility of leakage, and can resist corrosion. , is widely used, and is mainly used in fire protection, sewage treatment and some departments of environmental protection. It is used to pump different liquids, so that there is no leakage and no pollution. It is very civilized A kind of fire engine, which is very beneficial to the use of all of us.

Non-UL Flow：30-9000 GPM
Non-UL Head： 3-20 Bar (40-300 psi)
UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

The small DJ fire pump equipment is suitable for small public places or fire emergency use. The small fire pump occupies a small area and is easy to maintain. The pump set is composed of diesel engine pump + jockey pump, which is widely used and is not affected by the mains.

The diesel engine fire pump needs to be aimed at the occasion of large flow and high head fire water material supply, and it has good characteristics of the starting system for diesel automobile engines, fast starting development speed, strong overload capacity, no need for standby operation, and effective energy saving. Diesel engine firefighting pumps have complete performance and a wide range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps, long-axis pumps and other pumps can be used, and they can also be used in combination and in parallel. The flow and pressure ranges are wide. Diesel fire-fighting pumps are widely used in fire-fighting system water supply in various occasions of industrial and mining production enterprises such as data warehouses, docks, airports, petrochemicals, and power plants.

The diesel engine fire pump has the advantages of light weight, small size, flexible movement, quick start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, etc., fast automatic start and self-priming, and self-priming after dry running. Heavy-duty pump bearings – longer life; other parts are made of high-quality copper and stainless steel or customized by customers. The high-efficiency open impeller design of the diesel engine fire pump can handle large solids and abrasive materials while maintaining a high flow rate, and the large-capacity air treatment can be used for more “well point dewatering projects”.

Diesel engine fire pump set is a new type of fire-fighting equipment developed by our company in strict accordance with the national standard GB6245-98 “Fire Pump Performance Requirements and Test Methods” and the American Fire Protection Association standard NEPA20 “Installation of Centrifugal Fire Pumps” and other standards (hereinafter referred to as equipment ), this series of equipment can be divided into three sub-series, XBC-IS, XBC-SLOW, XBC-D, etc. The equipment has a wide range of pressure and flow, and its application can almost meet various occasions required by fire protection.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

Fire pump installations in historical buildings may have unique considerations to preserve the architectural integrity. Compliance with historical preservation guidelines and coordination with relevant authorities is crucial.

Small flow fire pump assemble process
This is for Philippines order for us, and flow as 50gpm 6bar
Normal use for small shop and hotel project

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters and delay rescue.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, warehouses, etc., with different performance requirements and quality requirements. The commonly used types of fire pumps include electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multi-stage fire pumps Pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

The electric fire pump set is an important fire pump equipment, usually in a horizontal state. Each pump group is composed of five parts: front pump, electric motor, hydraulic coupling, main feed water pump, lubricating oil device (including lubricating oil cooler and working oil cooler. In normal state, two sets are running, one There are two standby pumps, and any feedwater pump set can be used as a standby pump. When one of the two running pumps stops due to an accident, the standby pump will be put into operation automatically.

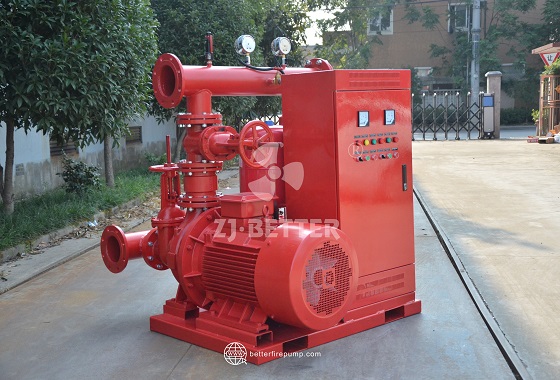

Electric fire pumps are suitable for pressurized water delivery in fire pipelines. It is used to pressurize water or other liquids whose physical and chemical properties are similar to water. The temperature of the medium used does not exceed 80°C. It is suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other cold and warm water cycle pressurization and equipment matching, etc.

Better Technology Co.,Ltd is a professional manufacturer of kinds of fire pump systems. We provide diesel engine fire pump set, motor electric driven fire pump set, EDJ fire pump set. We also have UL, ISO CE Certificates. More information pls contact us.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Diesel pump is a pump powered by diesel engine, which completely reduces the labor intensity of workers, and it is convenient to use, move, install, rarely maintain, and stable performance

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

This fire pump set is composed of diesel pump and stabilized pump. It adopts IS pump, which has advantages in price and is not affected by mains electricity. It is suitable for warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships , oil tankers and other fire-fighting occasions.

EJ fire pump is composed of electric pump + jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc. The pump set is deeply loved by domestic and foreign customers.

Fire pump equipment has the characteristics of mature technology, high degree of automation, protection function, reasonable structure and easy installation. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into fire pump, industrial emergency pump, agricultural pump and other application series, can be linked with the electric fire pump switch use.
