XA end suction horizontal centrifugal pump

The dual-power electric fire pump is composed of an electric fire pump and a voltage stabilizer pump. The electric fire pump can be applied to industrial and urban water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning and refrigeration System water supply and equipment supporting occasions.

Fire pumps can be adapted to work with water-saving fixtures or low-flow plumbing systems, but it’s essential to ensure that the pump’s capacity meets the demands of firefighting. Coordination with water conservation efforts is crucial for efficient water use.

Submersible pump is an important equipment for deep well water extraction. During use, the whole unit works in the water to extract groundwater to the surface, which is used for domestic water, mine rescue, industrial cooling, farmland irrigation, sea water lifting, ship load regulation, and fountain landscape.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The Vertical Inline pump is used for conveying liquids. It consists of an electric motor, pump body, impeller, and sealing device. The pump is suitable for conveying various liquids and can be selected based on specific process requirements and medium characteristics.

OTS pump is our common name. Its professional name is called single-stage double-suction centrifugal pump. The working principle of OTS pump operation: the impeller is installed in the pump casing and fastened to the pump shaft, which is directly driven by the motor.

Flow：50-7500 GPM
Head：3-20 Bar
The Vertical Turbine Fire Pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

The single-stage double suction centrifugal pump is a new type of energy-saving horizontal split pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. According to the user’s demand, the pump can be used to transport muddy sand water or various corrosive liquids by changing the pump structure and material. This series of pumps are suitable for factories, mines, urban water supply and drainage, power stations, household irrigation and drainage and various water conservancy projects.

Submersible sewage pump is a pump product used in the environmental protection industry to transport solid-liquid mixed liquids containing solid particles, fibers, etc., such as domestic sewage, industrial wastewater, mud, etc. WQ type submersible sewage pump is composed of sewage pump, sealing system, submersible motor, control and protection system, automatic installation system and so on. Different from the general sewage pump: in the WQ type submersible sewage pump, the pump and the motor rotate coaxially, and work underwater at the same time. The sealing system of the pump can effectively prevent the liquid from entering the motor cavity and protect the safe operation of the motor. The control and protection system enables the pump to alarm in time and shut down for repairs in the event of water leakage, oil leakage, overload, overheating, and lack of phase failure.

Compared with other pumps of the same type, OTS horizontal split pump has the characteristics of long service life, high efficiency, reasonable structure, low operating cost, convenient installation and maintenance, etc. it is an ideal pump for fire fighting, air conditioning, chemical industry, sewage treatment and other industries.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

Electric fire pumps should be installed in a dedicated, well-ventilated room with adequate space for maintenance. The location should be easily accessible and comply with local fire codes and standards.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums. Consulting with professionals and adhering to maintenance guidelines ensures the safe and reliable operation of the pump within air conditioning systems.

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions.

Selection criteria include:

Required flow rate and pressure.
Depth and characteristics of the water source.
Type of installation (indoor or outdoor).
Compliance with relevant standards and regulations.
Environmental conditions and potential hazards.

IHG Vertical Chemical Pumps are extensively used in chemical plants, refineries, pharmaceutical industries, and other industrial settings for transferring corrosive liquids, acids, alkalis, and other chemicals with high efficiency and reliability.

Selecting the right fire pump is a critical decision that depends on a range of factors. These factors include the facility’s water supply source, the building’s size and layout, the required flow rate, and the local fire codes and regulations.

For example, a large industrial facility may require a high-capacity fire pump, while a small office building may need a lower-capacity pump. The choice also depends on whether the facility uses municipal water, a private water supply, or a combination of both.

Consulting with a fire protection engineer or specialist is often recommended to ensure the selection of the most suitable fire pump for a specific application.

Features:
1. The pump is a vertical structure, the inlet and outlet diameters are the same, and are located on the same center line. It can be installed in the pipeline like a valve. The appearance is compact and beautiful, the floor space is small, and the construction investment is low. Can be used outdoors.
2. The impeller is directly installed on the elongated shaft of the motor, the axial dimension is short, the structure is compact, and the pump and motor bearings are reasonably arranged, which can effectively balance the radial and axial loads generated by the operation of the pump, thereby ensuring the smooth operation of the pump. Low vibration and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy sealing ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively prolong the service life of mechanical seal.
4. Easy installation and maintenance, no need to dismantle the pipeline system, just remove the pump joint seat nut to extract all the rotor parts.
5. The series and parallel operation modes of pumps can be adopted according to the requirements of use, that is, the needs of flow and head.
6. The vertical and horizontal installation of the pump can be adopted according to the requirements of the pipeline arrangement

As the name suggests, fire pumps are used in fire fighting, and they are divided into different types according to different classification methods. Due to their characteristics of full sealing, no leakage, and corrosion resistance, they are widely used in environmental protection, water treatment, tdaf001 Tiandun fire protection and other departments. Pumping various liquids is an ideal pumping and fire-fighting system for creating leak-free, pollution-free civilized workshops and civilized factories. The pump types are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the process flow and water supply and drainage requirements. The performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Methods” standard.

The function of the fire pump is relatively powerful. There are many models and a wide range of functions. Its selection is a problem that many users need to take seriously. Choosing a suitable model is not only easy to use, but also convenient for later maintenance. We have a professional technical team and sales team in our company, who can solve any doubts about the selection for you.

Flow：50-5000 GPM
Head： 3-16 Bar / 40-232 psi
Power：11-1000 kw
Frequency：50 or 60 Hz

The advantages of vertical pipeline centrifugal pump:

(1) Small size and small footprint.

(2) The structure is simple, the parts are few, and the maintenance is easy.

(3) The flow and pressure are stable, and the vibration of the pump is small when the pump is running normally.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

The video shows the testing for a vertical multistage fire pump. Multistage pumps can be used to meet high pressure.

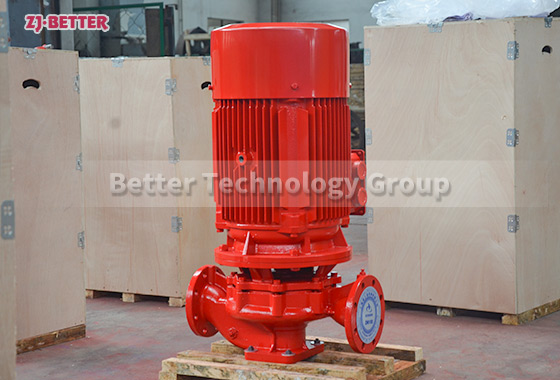

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.

The Vertical turbine pump is mainly used to transport clean water, sewage containing certain solid particles (such as iron filings, sand particles, coal powder, etc.), corrosive industrial wastewater and seawater. It is widely used in primary water treatment plants, sewage treatment plants, metallurgical and iron and steel industries (especially in the industry where the swirling pool conveys iron oxide scale water), power plants, mines, municipal projects and farmland water conservancy projects.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

·UL Standard
Flow：100-2500 GPM
Head：90-250 PSI
·NON-UL Standard
Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.
