XBC-IS Diesel Engine Pump

EJ Fire pump set Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.This fire pump set can be used for fire hose and fire hose reel system, fire sprinkler system, fire water monitor system, fire alarm system and fire hydrant system.

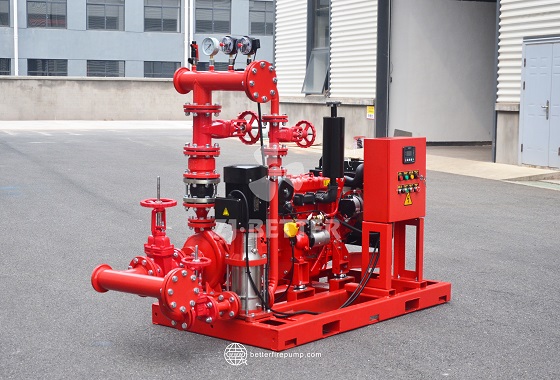

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Using Instruction:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

– Diverse Area Coverage: Ensuring comprehensive coverage for offices, retail spaces, dining areas, and other facilities.
– High Occupancy Management: Implementing systems that handle high occupancy and prioritize occupant safety.
– Integration with Building Management Systems: Coordinating with HVAC, security, and other building systems for comprehensive safety.
– Compliance with Commercial Building Codes: Adhering to fire safety regulations specific to multi-purpose commercial buildings.

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire pump sets are often required when the local water system cannot provide sufficient pressure to meet the design hydraulic requirements of the fire sprinkler system. This typically occurs in multi-story buildings or systems that require relatively high terminal pressures at fire sprinklers in order to release large volumes of water, such as storage warehouses. A fire pump is also required if the water supply is provided from above-ground or underground storage tanks.

Fire pump equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

Simplifies piping design
Single source unit responsibility
A complete package that will meet NFPA20 requirements
Packaged systems are performance and hydrostatically factory tested at an IS09001 certified manufacturing facility prior to shipment.
No material lost due to on-site material handling
Improves the speed of construction and reduces on-site installation time
Only external suction, discharge and power connection are required on-site
State of the art engineering design

In fire protection systems that include fire hydrants, jockey pumps play a key role in maintaining the necessary system pressure to ensure hydrants are immediately ready for use. Fire hydrants are typically located throughout a property or a city to provide easy access to water for firefighting efforts. The jockey pump helps maintain a consistent pressure in the piping network that supplies these hydrants, ensuring they are always charged and ready to deliver water when a firefighter opens them. This is especially important in systems with extensive piping networks, where pressure fluctuations could occur due to minor leaks, thermal expansion, or water usage. By keeping the system pressurized, jockey pumps help ensure a rapid response during a fire emergency, providing critical support to firefighting operations.

The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance. Due to these advantages of high performance and low energy consumption, the safety and efficiency of the fire pump are far ahead of the pipeline tools of the same purpose.

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

Flow-1000GPM
Head-106psi
Power-100HP=75KW
EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

In general, the equipment is designed to have one duty and one standby function. The main pump runs normally, and the standby pump starts automatically after the main pump fault . The Jockey pump will start and stop based on the pipe pressure, when the electric pump malfunction or mains power, control cabinet will receive signals from the electric contact pressure gauges and start the diesel engine pump in 5 seconds, and achieve the rated conditions in 20 seconds, ensure the normal conduct of fire fighting work.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

Functional description of fire pump control system, which is composed of electric motor fire pump, diesel engine fire pump, common chassis, water outlet pipeline and various valves. The operation of the unit is operated by hand. The diesel engine fire pump is equipped with a fuel tank with a running capacity of 6 hours. The electric fire pump set has a starter cabinet and a manual button box, which is convenient and feasible to operate. In addition to the entire structure of the manual control unit, the automatic motor fire pump unit and diesel engine fire pump unit also have an automatic control panel mainly composed of PLC. Automatic control panel function The automatic control panel receives the fire alarm signal.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Diesel engine fire pumps are used more and more widely. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Fire pumps are classified into various types based on their specific applications and operational characteristics. The common classifications of fire pumps include:

Horizontal Split Case Fire Pumps: These pumps have a horizontally split casing, which allows easy access to internal components for maintenance and repairs. They are typically used in large-scale fire protection systems, such as industrial facilities, commercial buildings, and high-rise structures. Horizontal split case pumps are known for their high flow rates and can handle a wide range of pressures.

Vertical Turbine Fire Pumps: Vertical turbine pumps have a vertical shaft and are designed to operate with submerged impellers. These pumps are commonly used in water sources such as wells, rivers, or lakes. Vertical turbine fire pumps are ideal for locations where space is limited, as they have a small footprint. They are also suitable for applications that require high pressures but lower flow rates.

Vertical Inline Fire Pumps: Vertical inline pumps have a vertical design with the motor located above the impeller. These pumps are compact and space-saving, making them suitable for installations where floor space is limited. Vertical inline fire pumps are commonly used in commercial and industrial applications, such as office buildings, hospitals, and manufacturing facilities.

End Suction Fire Pumps: End suction pumps have a single impeller mounted on the end of the shaft. They are widely used in various applications, including fire protection systems. These pumps are known for their simplicity, ease of maintenance, and cost-effectiveness. End suction fire pumps are typically used in smaller buildings, residential properties, and light commercial applications.

Multistage Fire Pumps: Multistage pumps consist of multiple impellers arranged in series. Each impeller adds pressure to the water, allowing these pumps to deliver high pressures. Multistage fire pumps are suitable for applications that require high-pressure delivery, such as high-rise buildings, industrial plants, and sprinkler systems with demanding pressure requirements.

Diesel-Driven Fire Pumps: Diesel-driven fire pumps are powered by diesel engines, providing a reliable source of power in situations where electricity may be unavailable or unreliable. These pumps are commonly used in remote locations, off-grid areas, and critical infrastructure where continuous operation is essential. Diesel-driven fire pumps are known for their durability and ability to deliver high flow rates and pressures.

It’s important to note that these classifications are not exhaustive, and variations of fire pumps exist within each category. The choice of fire pump classification depends on factors such as system requirements, available space, flow rates, pressure requirements, and power sources. Consulting with fire protection experts or system designers can help determine the most suitable fire pump classification for a specific application.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers.

The electric pump of this fire pump group adopts XA pump, which has good suction performance. The suction section of the pump is of an expanded structure, which reduces the flow rate of the pump inlet, so that the pump has good suction performance, a small necessary NPSH, and improves the prolongs the service life of the impeller and pump casing.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pumps can choose ductile iron and 304/3116 stainless steel materials, which can meet various special use conditions and technical requirements of users, and diesel engine fire pumps can be matched with different brands of diesel engines to ensure stable performance of diesel engine fire pumps. Long service life, high degree of automation.

Horizontal fire pump has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has an ultra-low pressure start-up device, the matching electric water pump control cabinet should also have an ultra-low-pressure start-up device, and the lower limit of the two pumps should have a certain pressure difference. Of course, according to customer requirements, design a control system that is more suitable for customer needs.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is ISW pump. ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic
general performance parameters of centrifugal pumps. In addition, according to different operation temperatures and mediums, we developed the hot-water pump (ISWR), corrosion-resistant chemical pump (ISWH) and oil pump (ISWB).

Yes, the fire pump configuration control cabinet is an important part of any fire system. The cabinet holds all of the system’s controls, relays, and other components, which allow the system to function properly. Without the control cabinet, the fire system would not be able to function correctly.

EJ fire pump set has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.
