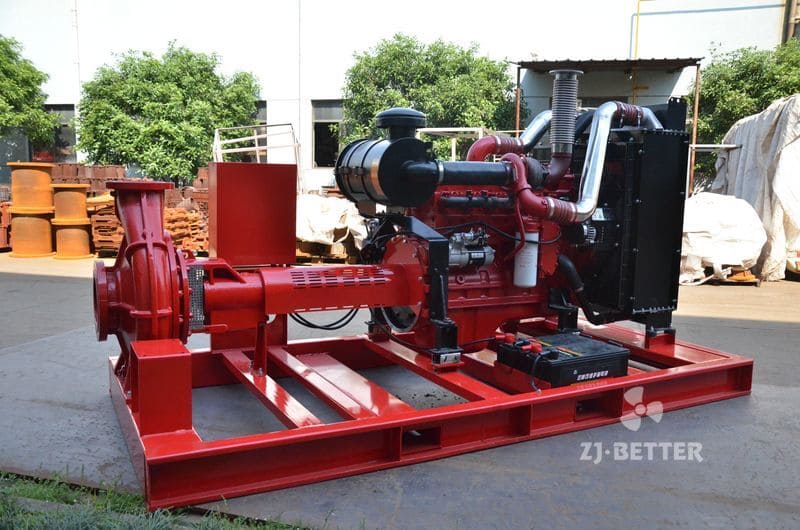

XBC-XA Diesel Engine Pump Set

Product Advantages:

1.Reliable
It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency. good stability, vibration proof.

2.Economic
Jockey pump and pressure vessel can save some electric power.
Convenience:It can be remote controlled by App in phones.

3.Professional Technological
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

DJ fire pump equipment is composed of diesel pump + jockey pump. It is widely used in various fire protection occasions. It is not affected by the mains and can run even when power is cut off. We have a professional sales team and R&D team with strong technical skills and self-produced control systems.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

EDJ fire pump set is our main product, the conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, The control cabinet will receive the signal from the electric contact pressure gauge and start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal operation of the fire extinguishing work.

DJ Fire Pump Application Scope:
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%.

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure jockey pumps. It is also suitable for various villas, residential areas and other fire systems, industrial Compatible with civil building fire protection systems, it is also suitable for various oil depots, oil product loading and unloading docks, logistics parks and other places with high fire protection requirements.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The national standard name of the diesel engine fire pump is “engineering diesel engine fire pump group”, and the national standard model is XBCL/Q where L is the lift value and Q is the flow value. XBC diesel engine fire pump set is the latest according to the national standard GB6245-2006 “fire pump performance requirements and test methods”. This series of products has a wide range of lift and flow, and can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

Diesel engine fire pump can not be short of a good helper, the rapid development of social science and technology, it has been widely used in the society. The use of diesel engine fire pump is very wide, for the fire has played a very important role, with it can also solve a lot of problems we can not solve before, to bring great help to firefighters, save time and effort is out of efficiency.

This fire pump set can be used outdoors, integrated pump station, no need to build another pump room, cost saving, composed of electric pump + diesel pump + jockey pump, three pumps automatically start and stop, when the stabilizer pump detects When the electric pump fails to run normally, the diesel engine pump starts automatically, which is not affected by the mains, and can also be used when the power is cut off. The fire pump set is widely used in various emergency firefighting occasions.

EJ fire pump set has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire-fighting package set water supply equipment manufactured by is referred to as
“dual-power”, “Fire Pump Set” hereinafter as “dual-power”, “Fixed Fire Pump Installation
Standard” and “Standard for the Fixed Fire Pump Installation Standard” of the
American Fire Protection Association in accordance with China Standard GB27898.5-2011
Fixed Fire-fighting Water Supply Equipment Part 5 “Fire Dual-power Installation of
Stationary Pumps for Fire Protection -2016 design and manufacture. Comply with the
latest Chinese national standard CCCF certification requirements and obtain the
certificate. Dual power is one of the reliable products in fire fighting water supply equipment.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire pumps used in the complete diesel engine fire pump unit can be the IS series single-stage type and the D-type series segment multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. They are advanced and reliable fire fighting equipment.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pumps are specifically designed for firefighting purposes. While some may have other applications, their primary function is to provide water at the required pressure for fire protection systems.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

Diesel fire pumps are ideal for applications where a separate pump room already exists or where the pump room is located on an exterior wall. Facilities using diesel fire pumps include warehouses, aircraft hangars and industrial facilities. Since they have a larger footprint than electric fire pumps, they are not suitable for installations where space is small. Unlike diesel pumps, electric fire pumps can be located inside buildings. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

Common accessories include:
Control Panels: For monitoring and operation.
Pressure Relief Valves: To prevent overpressure situations.
Hose Reels and Cabinets: For easy access during emergencies.
Flow Meters: To monitor water flow rates.
Jockey Pumps: For maintaining pressure in the system.

Diesel engine fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, convenient installation and maintenance, etc. This diesel engine pump set can transport clean water or other liquids whose physical and chemical properties are similar to water. It can also be used to transport hot water, oil, corrosive or abrasive media by changing the material of the pump’s flow parts, sealing form and adding a cooling system.

Problem one lower water or no water
1, electric pump reversal will lead to the pump doesn’t produce water.
2, the pump can’t normal water into the same can’t be water, check whether the water bay or check stopcock is blocked or stuck, pumping pipe if there’s a leak will also affect the water into the water.
3, the pump internal corridor of the wear and tear or connection out, check the pump and motor coupling wear and tear, loose and impeller is worn.

Problem two ：
1 、 Check the power force as described over, including connectors, switches, fuses,etc.
2. Check whether the impeller in the pump is jammed by foreign objects
3. A burnt motor will also affect the launch of the pump.

Problem three the water affair is big for a while and small for a while
1. still, the lack of depth down the well may beget this problem, If the pump is a submersible pump.
2. The inflow rate of the pump is too high and needs to be replaced with a suitable pump.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
