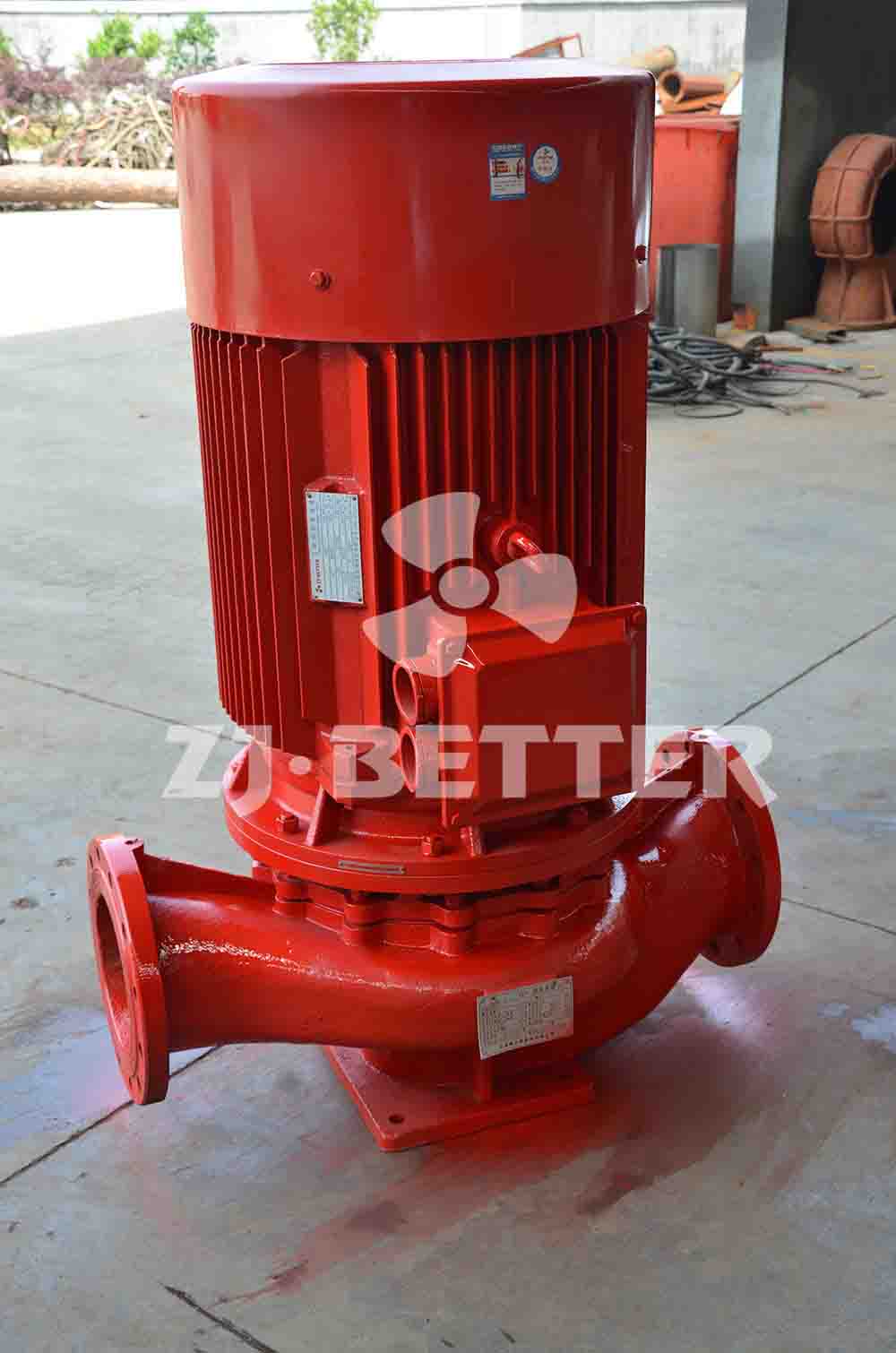

XBD-L vertical single-stage fire pump set

ISG series vertical single-stage single-suction centrifugal pump
is a new generation of energy saving, environment friendly vertical
centrifugal pump researched and developed by our company, which
absorbs advanced technology of similar products abroad and adopts
domestic general performance parameters of centrifugal pumps. In
addition, according to different operation temperatures and mediums,
we developed the hot-water pump(IRG), corrosion-resistant chemical
pump(IHG) and oil pump (YG) – . This pump enjoys excellent perfor
mance, good reliability, long operation life, reasonable construction
and nice appearance, which is outstanding in the industry.

Flow：50-7500 GPM
Head：3-20 Bar
Vertical Turbine Fire Pumps play a versatile role in various applications. They are essential in water management, agriculture for irrigation, and industrial processes dealing with different liquids. These pumps excel in emergency fire response, ensuring a swift and reliable water supply. Crucial for urban water systems, they meet the constant demand for clean water.

The electric motor fire pump is a relatively important water supply equipment in the fire protection system. The electric motor fire pump has a wide coverage of lift, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensuring emergency use.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Regular maintenance includes:

Inspecting and lubricating bearings.
Checking alignment and coupling conditions.
Inspecting impellers and pump bowl assembly for wear and damage.
Ensuring proper operation of control systems and alarms.
Conducting periodic performance tests to ensure compliance with design specifications.

The characteristics of stainless steel are characterized by corrosion resistance and rust resistance. Long -term underwater work iron products will soon be rusted and cause damage to the body. Stainless steel is an ideal material.

This product is a 400gpm@90psi Vertical turbine pump, which is a kind of centrifugal pump. From the perspective of centrifugal pump, it is improved from the performance of the submerged pump. This pump can be used to transport rainwater, oxidation Iron sheet water, sewage, corrosive industrial wastewater, seawater and other liquids. Widely used in water companies, sewage treatment plants, steel plants, mines and other industrial and mining enterprises, as well as municipal water supply and drainage, farmland irrigation, flood control and drainage projects.

Components
1. Electric pump:kinds of end suction pump, split case pump.
2. Jockey pump:vertical, small flow, head is higher than electric or diesel pump.
3. Control panel: control the pumps automatically with overload, overcurrent protection
4. Accessories: Discharge pipe with flange, Battery, Gate valve, Check valve, Flexible expansion joints, Pressure switches, Pressure gauge, base frame etc.

Pump type is vertical multistage centrifugal pump, with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight. The use of easy maintenance, and reliable sealing performance. Use for high-rise building pipeline booster, fire booster regulator system.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

– Jockey pumps in large-scale facilities:

Pressure Maintenance: Keep the fire protection system pressurized to prevent false alarms and ensure immediate response during a fire event.
Leak Compensation: Compensate for minor leaks in the system, maintaining steady pressure without activating the main fire pump.
System Readiness: Ensure the system is always ready for immediate use by maintaining constant pressure levels.

used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea. Type JCW are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

If an electric fire pump fails during an emergency, the following steps should be taken:

Activate the backup pump: If available, switch to a secondary pump or manual firefighting methods.
Investigate the cause of failure: After the emergency, perform a thorough inspection to determine the cause of the failure.
Repair or replace the pump: Address the identified issues and restore the pump to full operational status.
Review maintenance practices: Ensure regular testing and maintenance procedures are followed to prevent future failures.

·UL Standard:
Flow:50-500GPM
Head:6-16 Bar（90-230PSI）
·Non-UL Standard:
Flow：50-5000 GPM
Head：3-16 Bar（40-232 psi）

OTS pump is our common name. Its professional name is called single-stage double-suction centrifugal pump. The working principle of OTS pump operation: the impeller is installed in the pump casing and fastened to the pump shaft, which is directly driven by the motor.

The OTS Double-suction End-suction Pump is a pump that combines the characteristics of a double-suction pump and an end-suction pump. It is designed for high flow and medium head liquid transfer and circulation systems in industrial applications. This pump features double-suction characteristics and an end-suction structure, making it suitable for balancing liquid flow and ensuring stability and efficiency. The end-suction design allows for easy installation and maintenance, particularly in spaces with limitations. The OTS Double-suction End-suction Pump offers high efficiency and is widely applicable in various applications, including water supply systems, cooling water circulation, petrochemicals, and industrial processes. When selecting and using this pump, specific operational requirements and flow rates should be considered, and consultation with professional engineers or pump suppliers is recommended to ensure the appropriate equipment is chosen for safe and reliable operation.

The horizontal pipeline pump is a horizontally arranged pumping device used for conveying liquids or gases. It consists of an electric motor, pump body, impeller, and sealing device. Compared to vertical pipeline pumps, the horizontal pipeline pump offers advantages such as a smaller space requirement, convenient maintenance, stable operation, and wide applicability. Its horizontal layout helps reduce axial and radial loads, thereby enhancing the pump’s stability and operational efficiency. The horizontal pipeline pump is suitable for conveying various liquids or gases and can be selected based on specific process requirements and medium characteristics. It is recommended to consult with professional engineers or pump suppliers when purchasing and using a horizontal pipeline pump to ensure the selection of suitable equipment.

Electric fire pump has the characteristics of high efficiency and energy saving, low noise, high temperature resistance, low vibration and so on. The installation form is flexible and diverse, and the inspection is convenient.

GDL multistage centrifugal pipeline pump is a new generation product designed and manufactured by our company according to JB/TQ 6435-92 standard, on the basis of excellent pump types at home and abroad, combined with user requirements and fire engineering related standards.

Flow：250-10000 GPM
Head：3-16 Bar
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants, oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The single-stage double suction centrifugal pump is a new type of energy-saving horizontal split pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. According to the user’s demand, the pump can be used to transport muddy sand water or various corrosive liquids by changing the pump structure and material. This series of pumps are suitable for factories, mines, urban water supply and drainage, power stations, household irrigation and drainage and various water conservancy projects.

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. W

Stainless steel deep well pump with rust, no pollution, long life, energy saving and other characteristics, the product of high head, general deep well pump longer, higher head.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

The self-priming pump has the advantages of compact structure, convenient operation, stable operation, easy maintenance, high efficiency, long life, and strong self-priming ability. The advantages of centrifugal pumps are compact structure, wide range of flow and head, suitable for mildly corrosive liquids, multiple control options, uniform flow, stable operation, low vibration, no need for special shock absorption foundation, equipment installation, Maintenance and repair costs are low.

Application of single stage end suction pump
Single-stage end-suction centrifugal pumps are used in industrial applications for water supply, pressurization and liquid transfer, ventilation, air conditioning and heating, and agricultural/irrigation applications.

The video shows the process of electric vertical turbine pump testing. Vertical turbine pump is better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

The pictures show duty pump which is a part of EDJ fire pump set. It’s electric motor pump. The type of pump is horizontal centrifugal pump.

Flow：500 GPM
Head：9 bar
ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.
