XBD-S Single-stage double-sucked fire pump

The OTS Double-suction End-suction Pump is a pump that combines the characteristics of a double-suction pump and an end-suction pump. It is designed for high flow and medium head liquid transfer and circulation systems in industrial applications. This pump features double-suction characteristics and an end-suction structure, making it suitable for balancing liquid flow and ensuring stability and efficiency. The end-suction design allows for easy installation and maintenance, particularly in spaces with limitations. The OTS Double-suction End-suction Pump offers high efficiency and is widely applicable in various applications, including water supply systems, cooling water circulation, petrochemicals, and industrial processes. When selecting and using this pump, specific operational requirements and flow rates should be considered, and consultation with professional engineers or pump suppliers is recommended to ensure the appropriate equipment is chosen for safe and reliable operation.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

Electric vertical turbine pump with high efficiency, energy saving and high efficiency, pump impeller immersed in water, no bottom valve, no irrigation and shaft vacuum, can be directly started, very convenient and reliable.

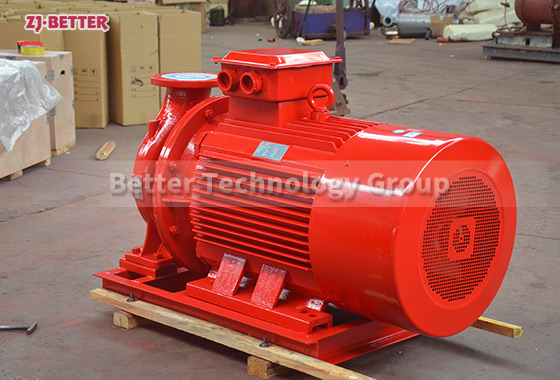

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

·UL Standard
Flow：100-2500 GPM
Head：90-250 PSI
·NON-UL Standard
Flow：250-10000 GPM
Head：30-200 m / 3-20 Bar / 40-290 psi

Ensure optimal performance and reliability of your fire protection system with our premium Jockey Pumps. Designed for maintaining constant pressure in fire sprinkler networks, our Jockey Pumps offer dependable pressure control, enhancing fire safety measures in commercial and industrial settings. Trust in our high-quality Jockey Pumps to safeguard your property and personnel against fire hazards effectively.

The submersible axial-flow pump is a special type of submersible pump designed for handling large flow rates with relatively low head conditions. It has a wide range of applications, including agricultural irrigation, urban water supply and drainage, municipal flood control and emergency rescue, as well as various water conservancy projects.

Application
Split case pumps are specifically designed and
tested for fire service application around the
world including:
1.Office buildings
2.Hospitals
3.Airports Manufacturing facilities
4.Warehouses Power stations
5.Oil and gas industry
6.Schools/colleges
7.Hotels

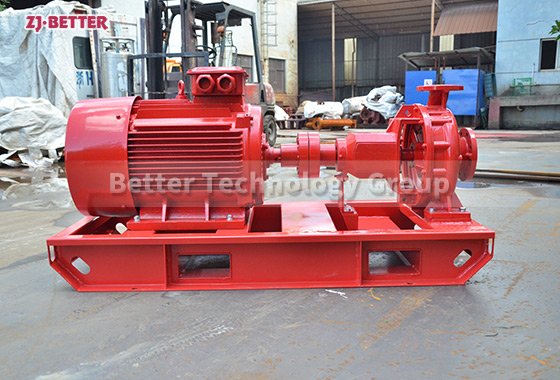

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Made in strict accordance with the requirements of customers in the Philippines, the pump body of this electric vertical turbine pump fire pump is made of cast iron, the impeller is made of stainless steel, the shaft is made of stainless steel 420, and the submerged length is 3 meters. The sealing form is packing sealing, which can cool the product to a certain extent.

Type D & DG multistage pumps are used for feeding low and middle pressure boiler water or for pumping other middle pressure water. The temperature of pumped medium oftype D are not more than 80C and type DG110℃
Type D& DG pumps are horizontal single-suction centrifugal pump with ring section body. The position of suction port of type D is arranged horizontal and that of type DG is vertically up. The position of discharge port is arranged vertically up.
The shaft sealing of these pumps are sealed with soft-packing. At the location of the shaft sealing, there is a renewab le sleeve to protect the shaft.
The pumps are directly driven by the motor through the flexible coupling.
The rotating directions of the pumps are clockwise, when viewed pump from the driving end.

The Vertical Inline pump is used for conveying liquids. It consists of an electric motor, pump body, impeller, and sealing device. The pump is suitable for conveying various liquids and can be selected based on specific process requirements and medium characteristics.

This is a set of vertical turbine pump with a flow of 500gpm and a pressure of 7.5bar customized by a UAE customer. The vertical turbine pump is mainly composed of three parts: the upper part is the motor, the middle part is the water delivery pipe and the drive shaft. The lower end is the deep well. The working part of the pump, submerged below the surface of the well. Due to the depth of the well, the lift is required to be larger.

An electric fire pump system typically includes:

The electric fire pump itself.
An electric motor to power the pump.
A controller to manage the pump’s operation.
Piping and valves to direct water flow.
Pressure relief valves and gauges.

Jockey pump after package
3 sets 50gpm 8bar jockey pump after package
Ready to dispatch to ningbo port

A split pump is a centrifugal pump with two single-suction impellers or a double-suction impeller supported between bearings. The housing is axially separated from opposing suction and discharge flanges. This facilitates maintenance of the pump. This robust and simple design is especially suitable for high flow applications.

Horizontal fire pump with high efficiency and low noise operation, good resistance to cavitation performance, reasonable structure, long service life etc, it is mainly used for pressurized water supply in fire control system, can also be used in industrial water supply and drainage, pressurized water supply in high-rise buildings, distant distance water, cold and hot water circulation pressurization in heating, bathrooms and boilers, water supply in air-conditioning and refrigeration system and supporting equipment, etc.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

Philippines order us the booster pump set
The booster pump set normal use for water supply system
Use CDL type pump, flow is not big, but pressure higher

ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Electric fire pumps are mainly used for pressurized water supply for fire protection systems, and can also be used for drainage of factories and mines. Mainly used in industrial and mining enterprises, engineering construction, high-rise buildings and residential area fire hydrant water supply system, automatic sprinkler fire extinguishing water supply system.

Site conditions
YE3 series motors air suitable for almost all applications and operate satisfactorily at temperatures from -20 to +40 and
altitudes up to 1000 meters above sea level.
Temperature and insulation
The Motors’ insulation system are designed by Class F(155 ), operated with Class B(80K). Which incerase the motor useful
life and reliability.
Cooling and ventilation
The standard cooling method is totally Enclosed Fan Cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard
motors are equipped with radialflow plastic fans.
Protection class
The standard degrees of protection is IP55.The IP55 enclosure means complete hoseproof and dustproof protection. A
higher degrees of protection is available.
Motor protection
Motors can be installed with PTC, PT100, such as winding and bearing temperature measurement as well as other kinds of
protection on request

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.

YW liquid sewage pump is a new generation of liquid sewage pump product successfully developed on the basis of our advanced technology at home and abroad and the use characteristics of liquid sewage pump. It has remarkable energy saving effect, anti-winding, no blockage and other characteristics, and has a unique effect in the discharge of solid particles and long fiber garbage.

Pump type is vertical multistage centrifugal pump, with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight. The use of easy maintenance, and reliable sealing performance. Use for high-rise building pipeline booster, fire booster regulator system.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China)Technology Co,, Ltd. This product combines the advantages of sinnilar products in China and abroad, and is designed with excellent hydraulic model. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.
